levelling elements in polyamide

K 10 - Ø 100 mm

levelling elements in polyamide series K
(1 MB, pdf)

hinged feet for levelling
with ample pendulum action ( ca. 15° )
materials
screw and pendulum balljoint in stainless steel
base plate in reinforced polyamide
elastomer NBR
optional
washers and nuts
readily commissioned sets as per customer requirement

version stainless steel	article number	Ø(mm)	M	SW(mm)	H(mm)	L(mm)	H₁(mm)	*shorehardness(+/- 5)	load max.(daN)
K10/M16x100/NBR7011	9003 0007	100	M16	24	151	100	51	70	800
K10/M16x150/NBR7011	9003 0050	100	M16	24	201	150	51	70	800
K10/M16x200/NBR7011	9003 0051	100	M16	24	251	200	51	70	800
K10/M16x250/NBR7011	9003 0052	100	M16	24	301	250	51	70	800

K10/M20x100/NBR7011	9003 0008	100	M20	30	151	100	51	70	800
K10/M20x150/NBR7011	9003 0053	100	M20	30	201	150	51	70	800
K10/M20x200/NBR7011	9003 0054	100	M20	30	251	200	51	70	800
K10/M20x250/NBR7011	9003 0055	100	M20	30	301	250	51	70	800
K10/M20x300/NBR7011	9003 0072	100	M20	30	351	300	51	70	800

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

*further shorehardnesses and elastomer thicknesses on request

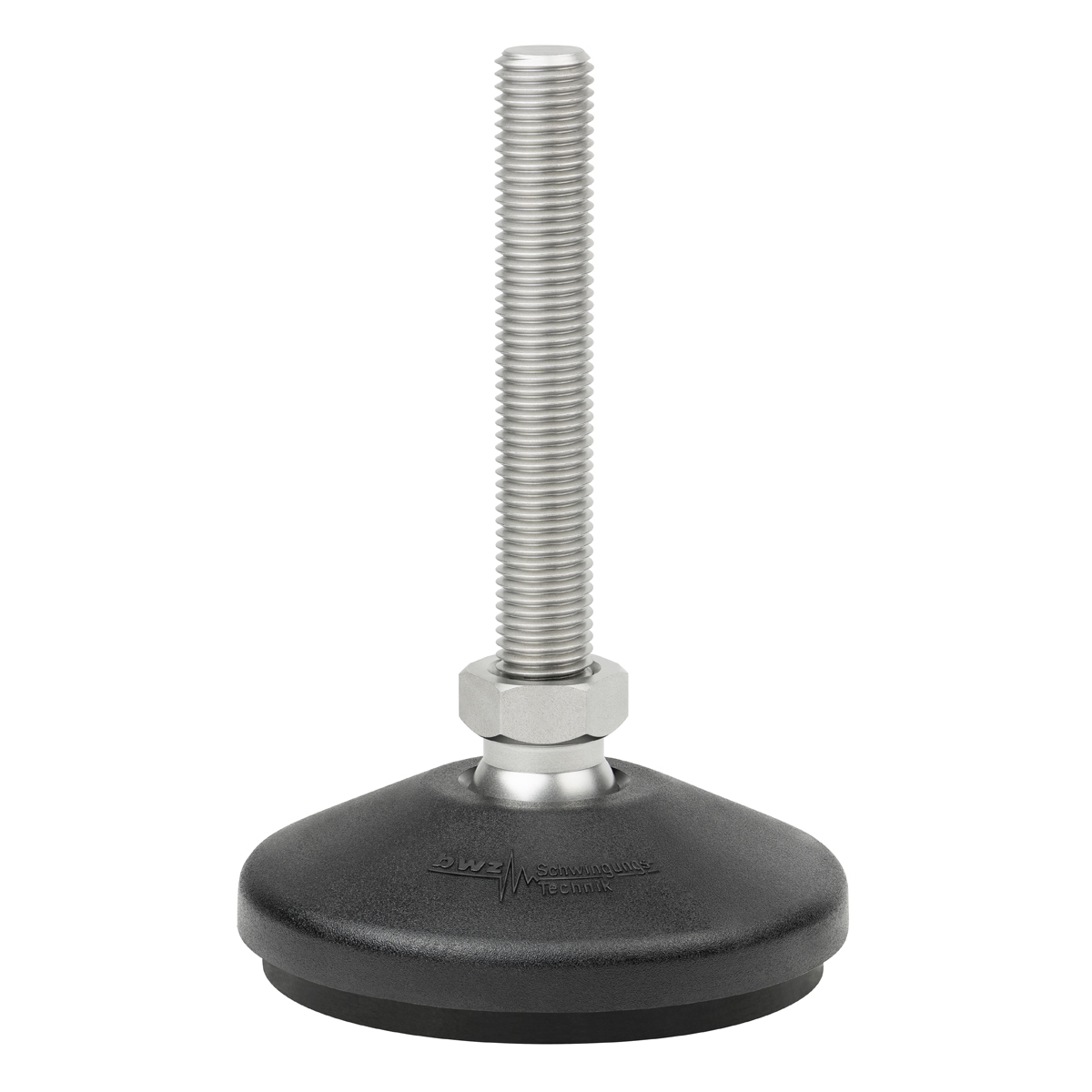

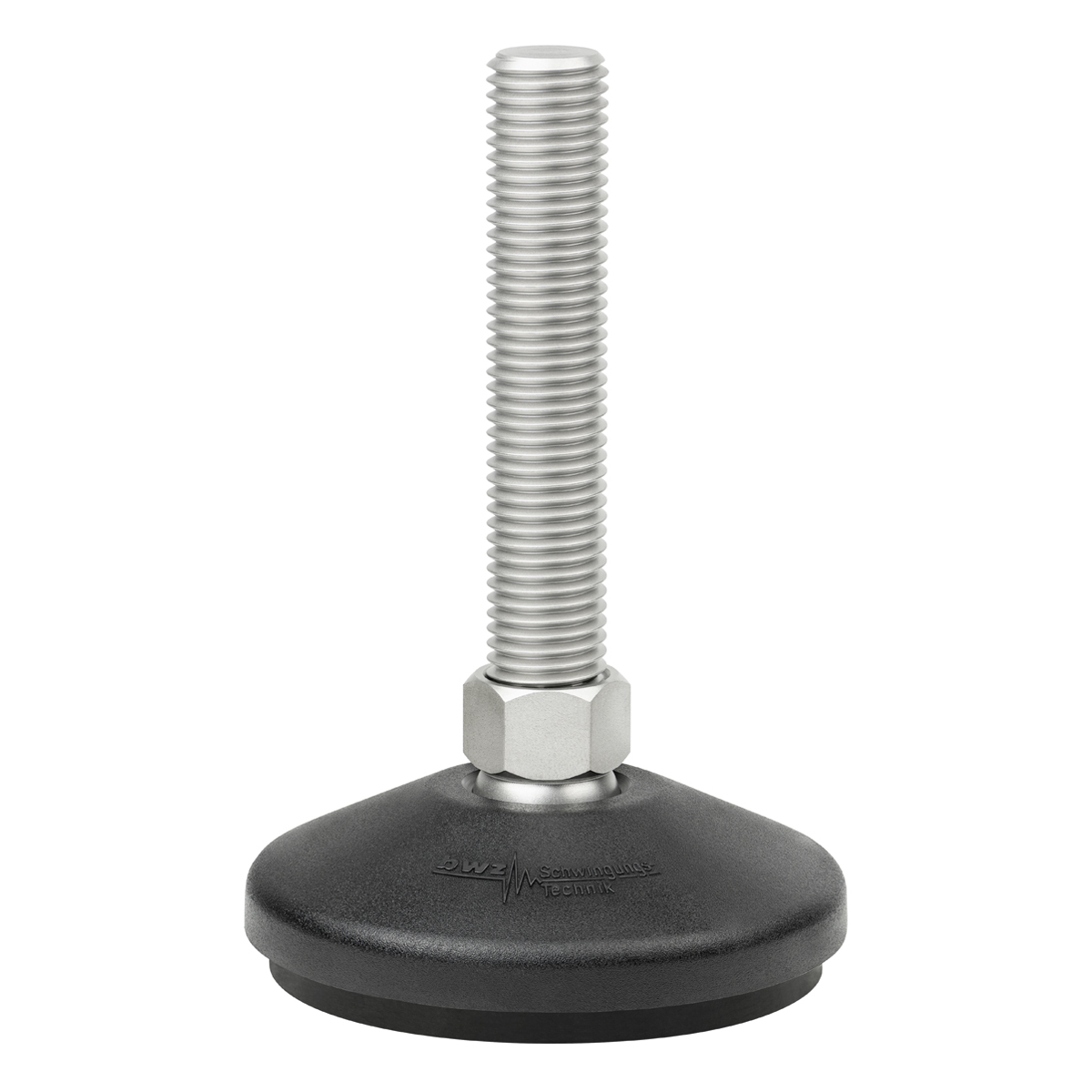

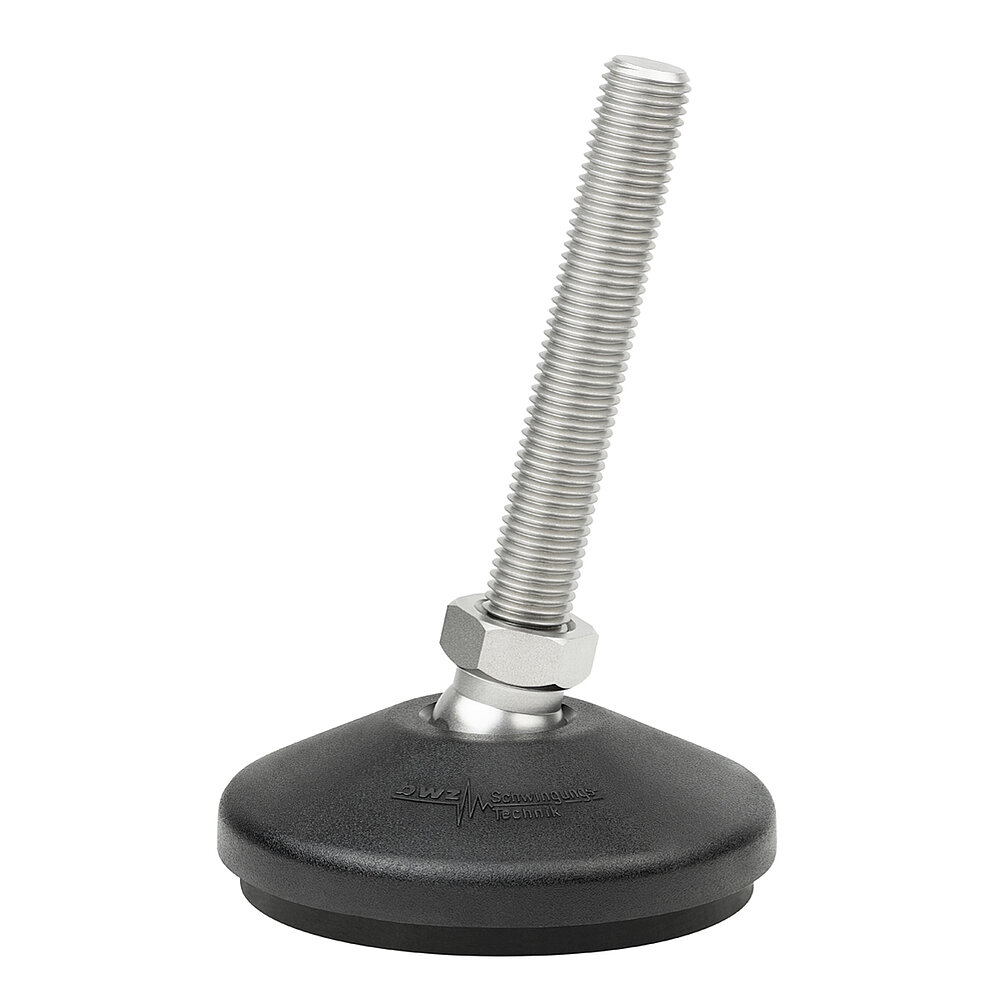

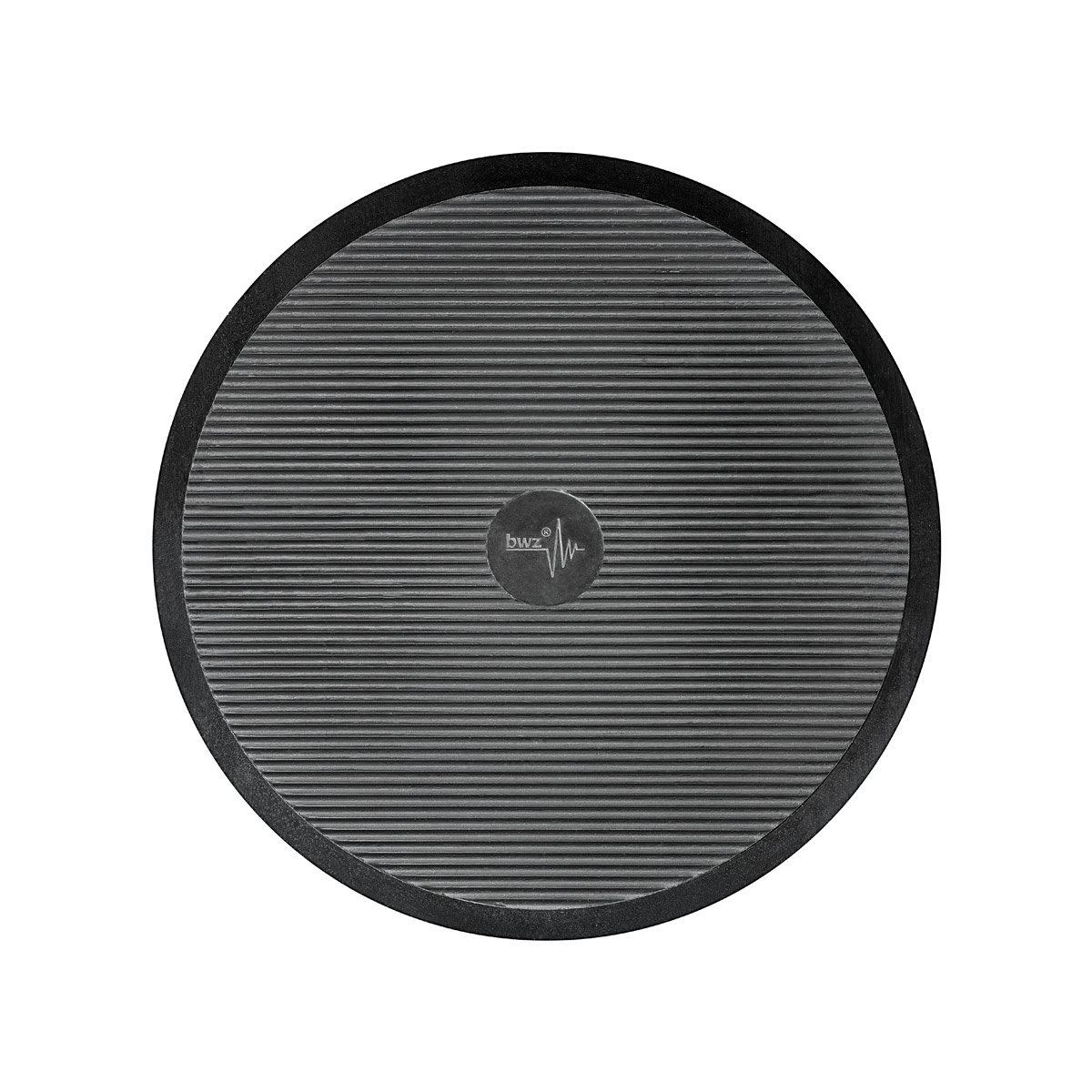

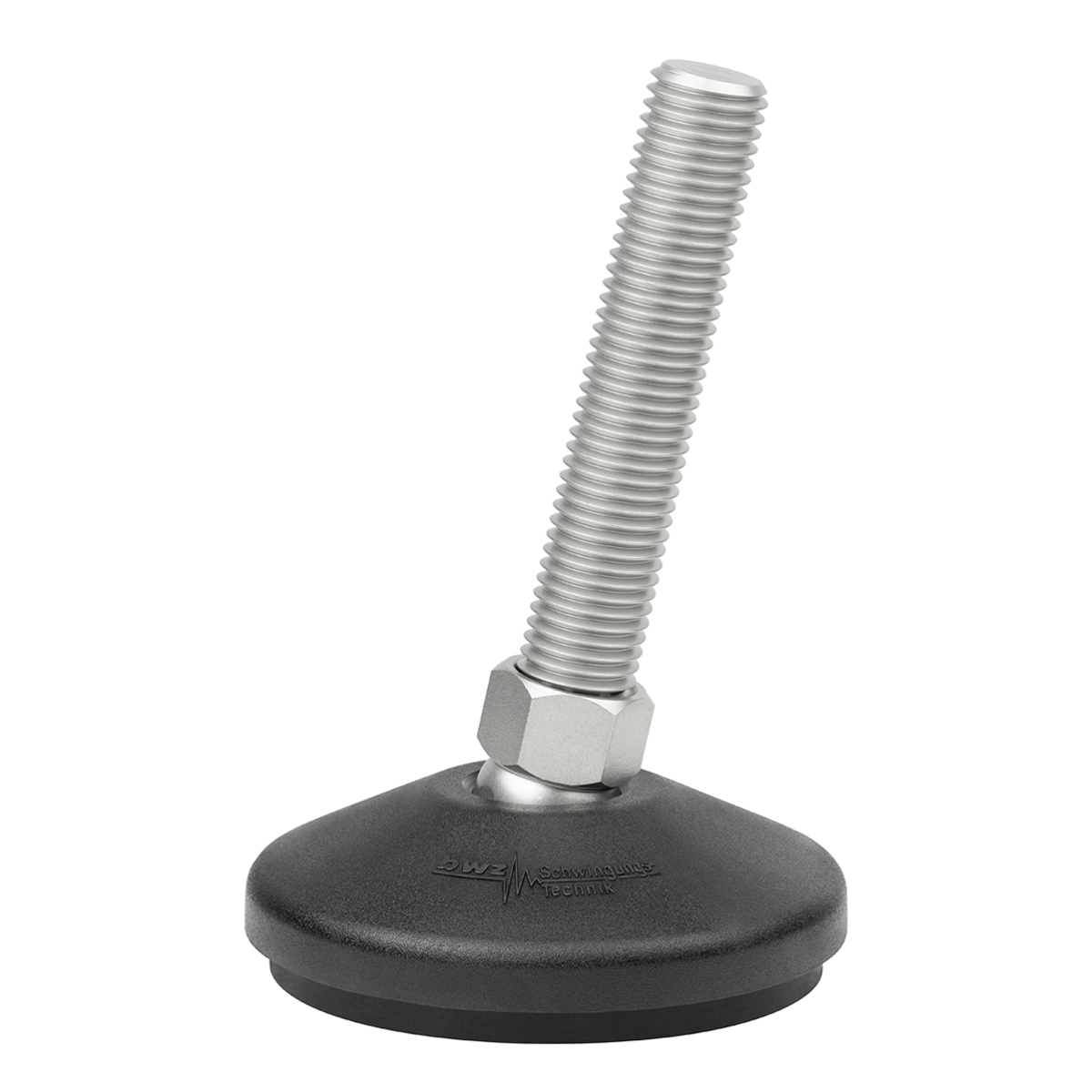

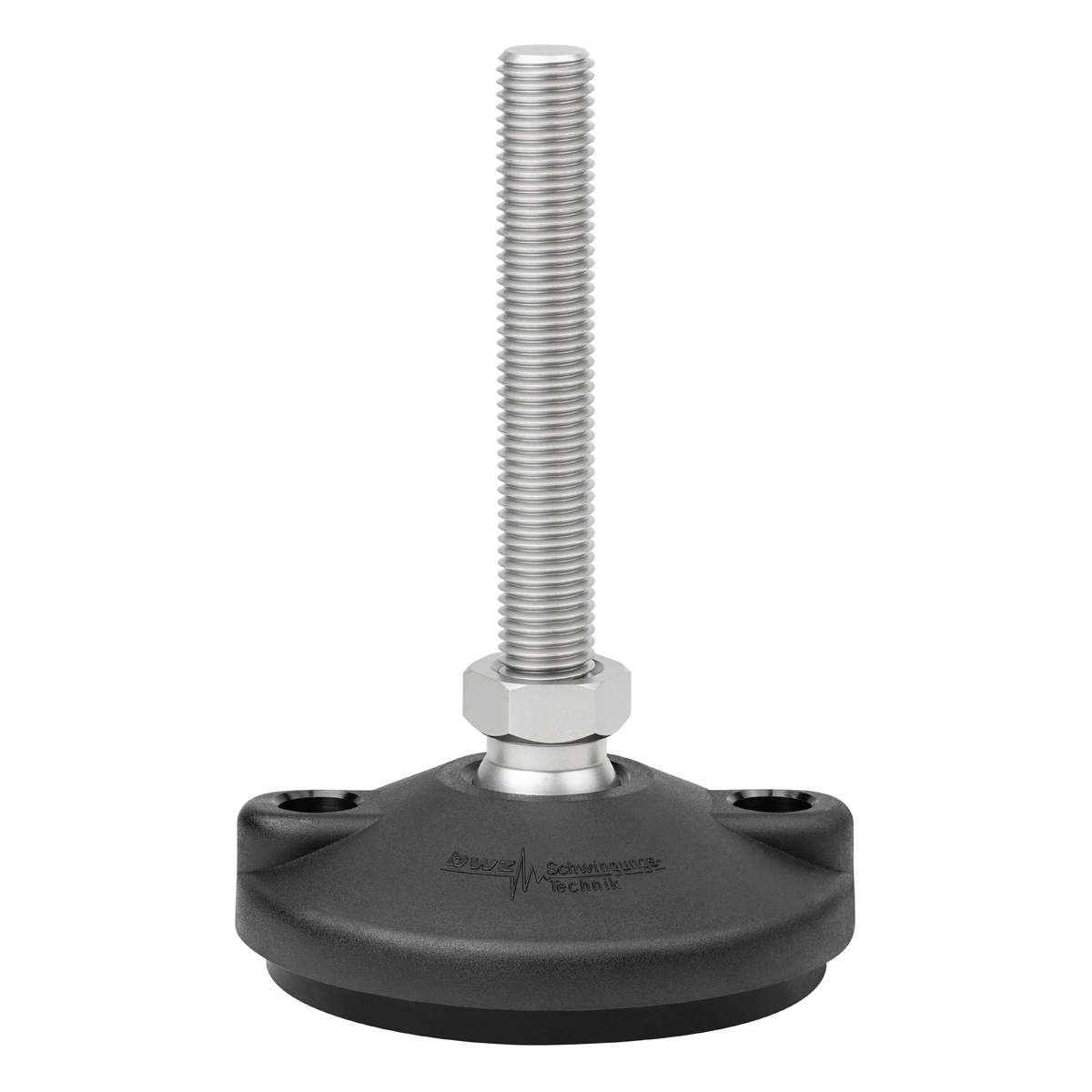

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view

version stainless steel	article number	Ø(mm)	M	SW(mm)	H(mm)	L(mm)	H₁(mm)	floor-anchoring holes(Ø mm)	*shorehardness(+/- 5)	load max.(daN)
K10/B/M16x100/NBR7011	9003 0013	100	M16	24	151	100	51	13	70	800
K10/B/M16x150/NBR7011	9003 0056	100	M16	24	201	150	51	13	70	800
K10/B/M16x200/NBR7011	9003 0057	100	M16	24	251	200	51	13	70	800
K10/B/M16x250/NBR7011	9003 0058	100	M16	24	301	250	51	13	70	800

K10/B/M20x100/NBR7011	9003 0014	100	M20	30	151	100	51	13	70	800
K10/B/M20x150/NBR7011	9003 0024	100	M20	30	201	150	51	13	70	800
K10/B/M20x200/NBR7011	9003 0059	100	M20	30	251	200	51	13	70	800
K10/B/M20x250/NBR7011	9003 0060	100	M20	30	301	250	51	13	70	800
K10/B/M20x300/NBR7011	9003 0073	100	M20	30	351	300	51	13	70	800

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

*further shorehardnesses and elastomer thicknesses on request

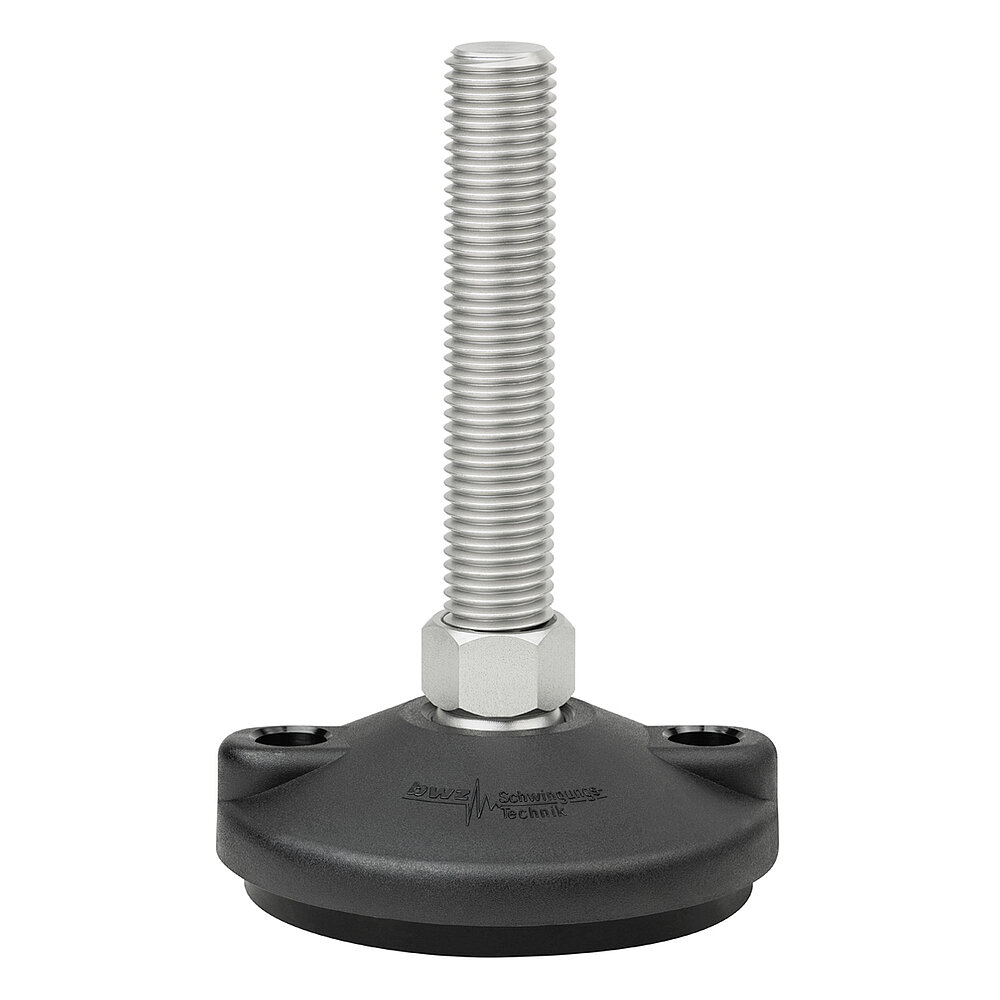

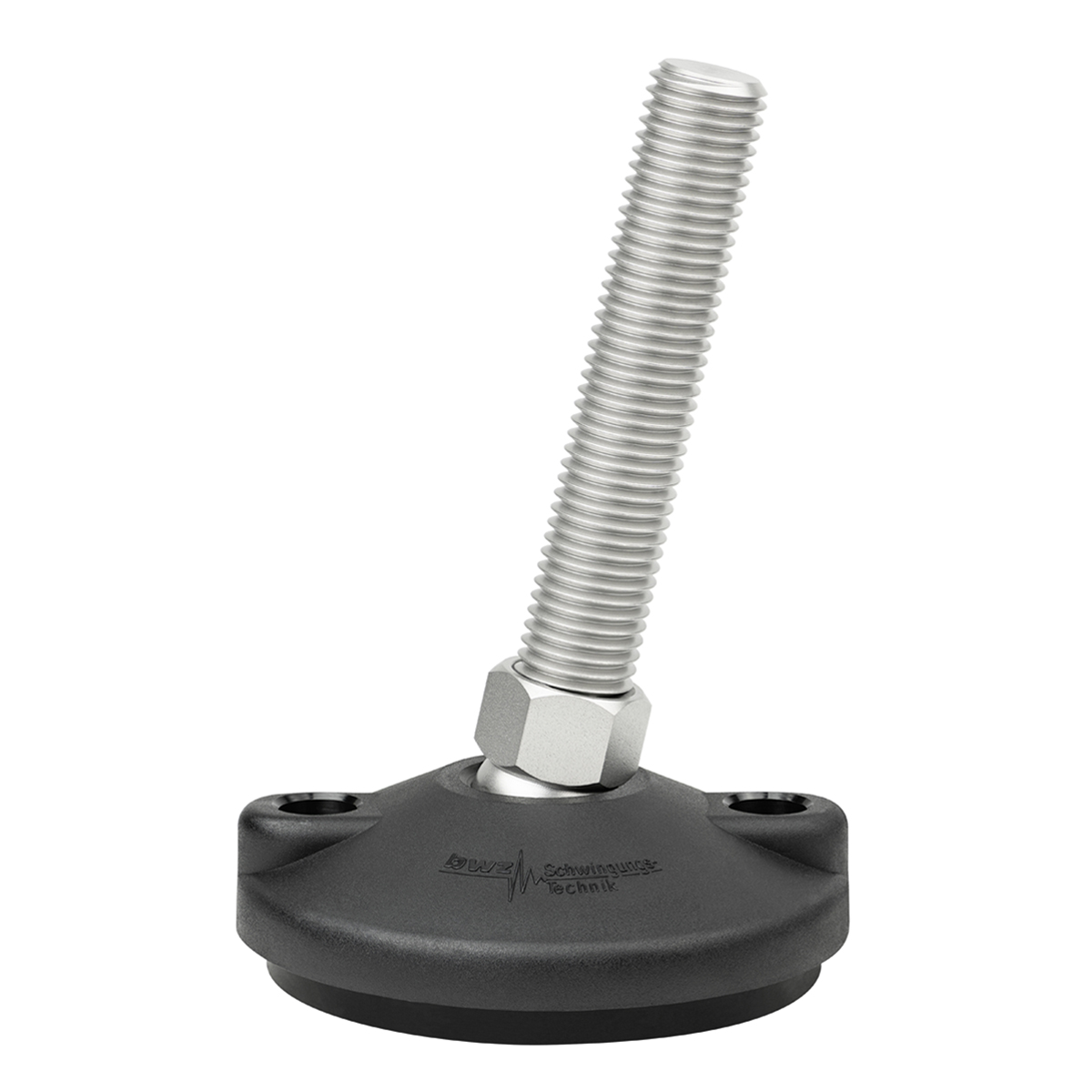

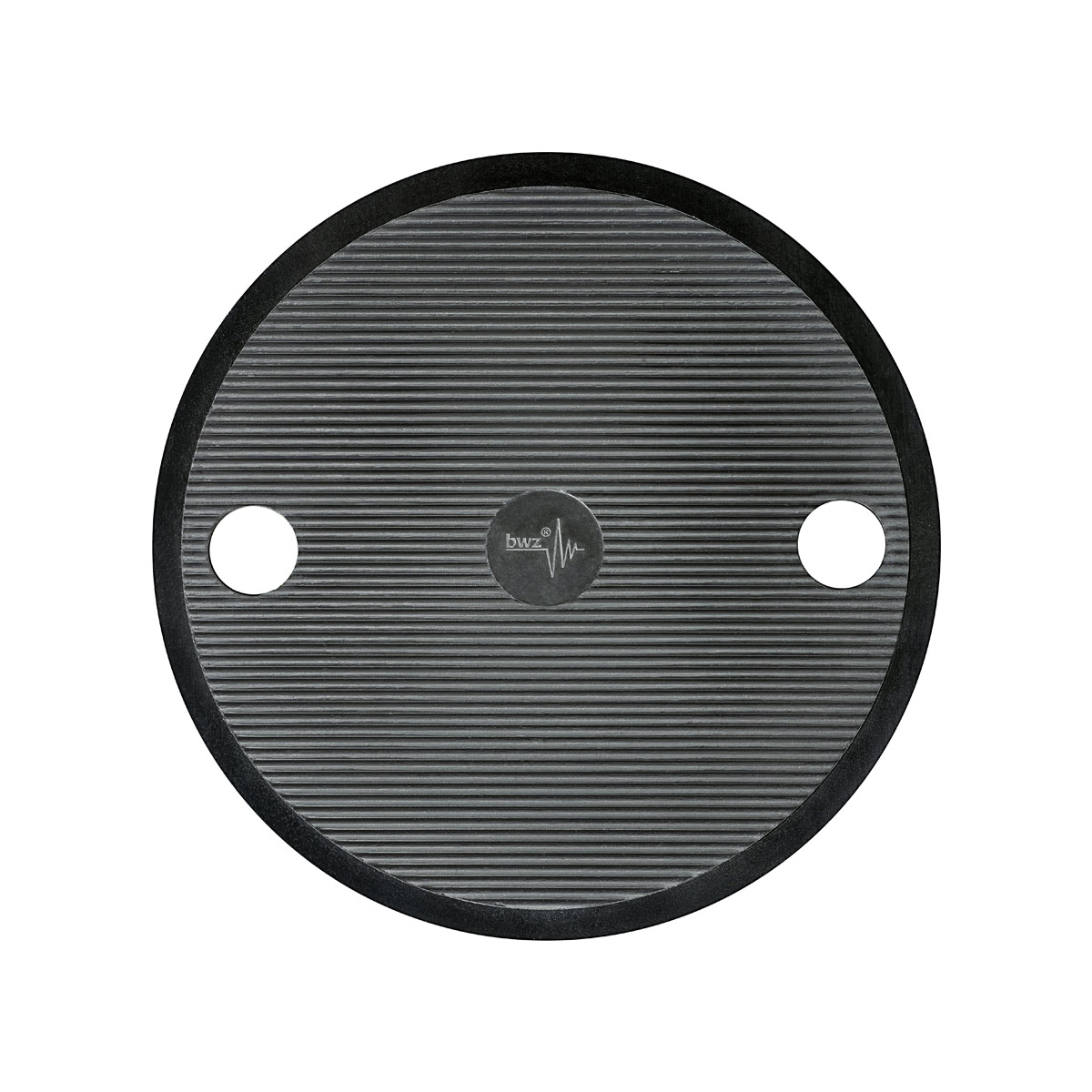

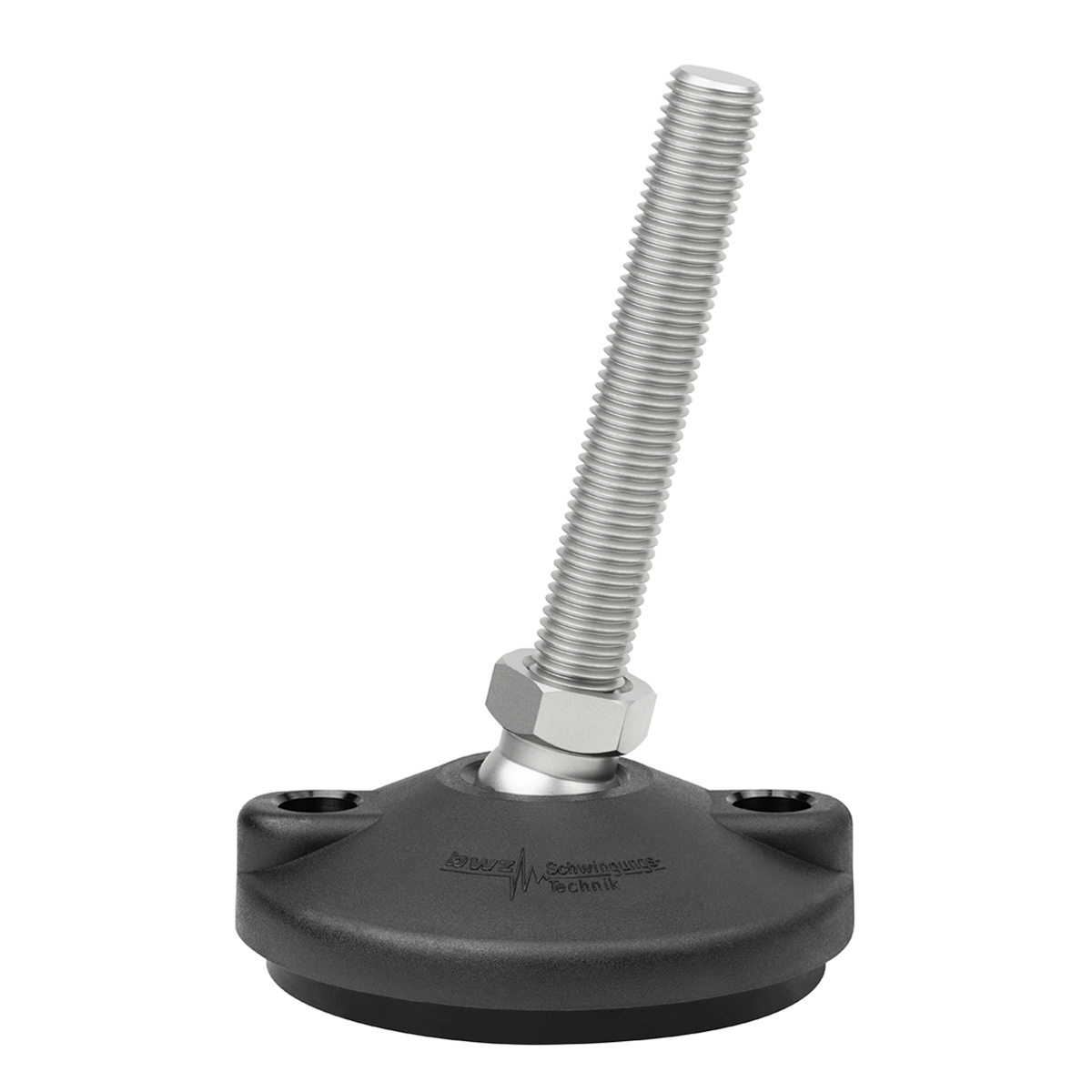

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom, two cusped elevations with boreholes for ground-fastening at the sides, and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view

thread	standard thread lengths L(mm)
M 16	*50	100			150	200	250	*300
M 20	*50	100			150	200	250	300

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

* on request

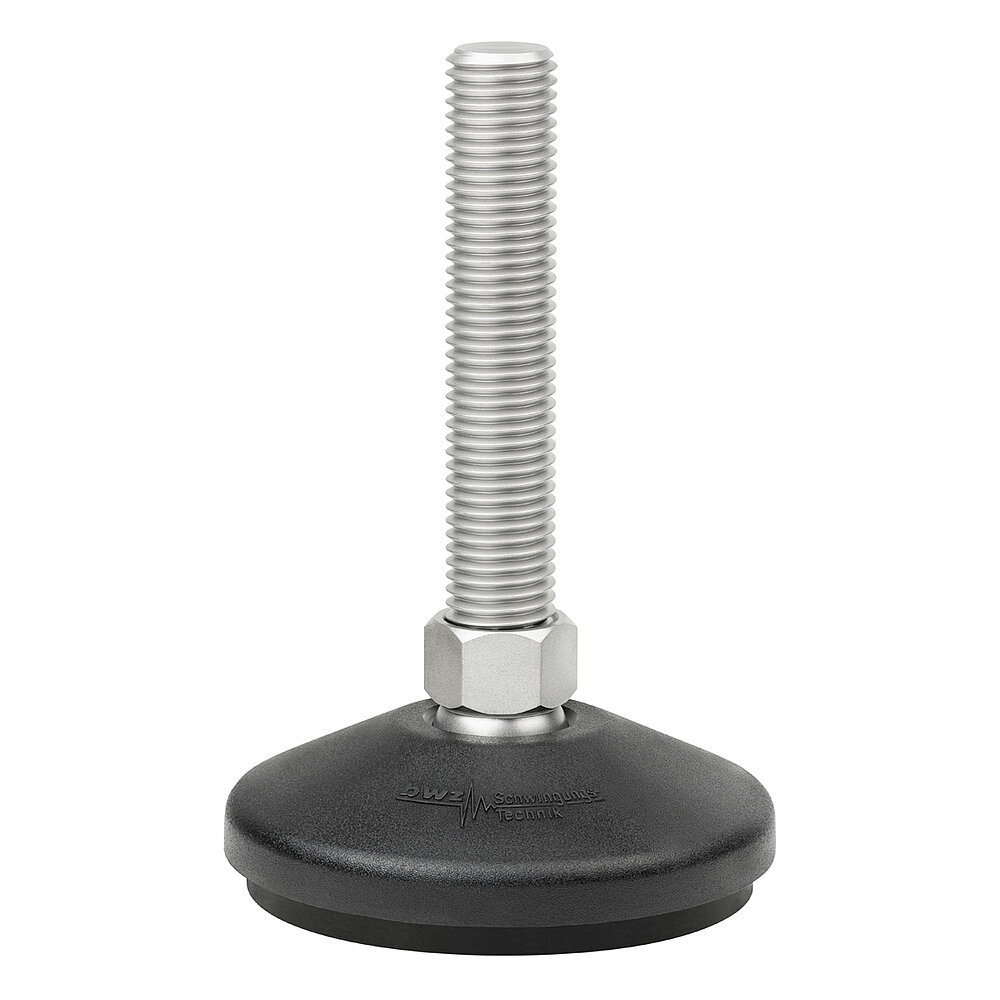

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view
