levelling elements in polyamide
series K
- special purpose machinery
- beverage processing
- food processing
- packaging technology
- chemical and laboratory equipment
- further special purposes

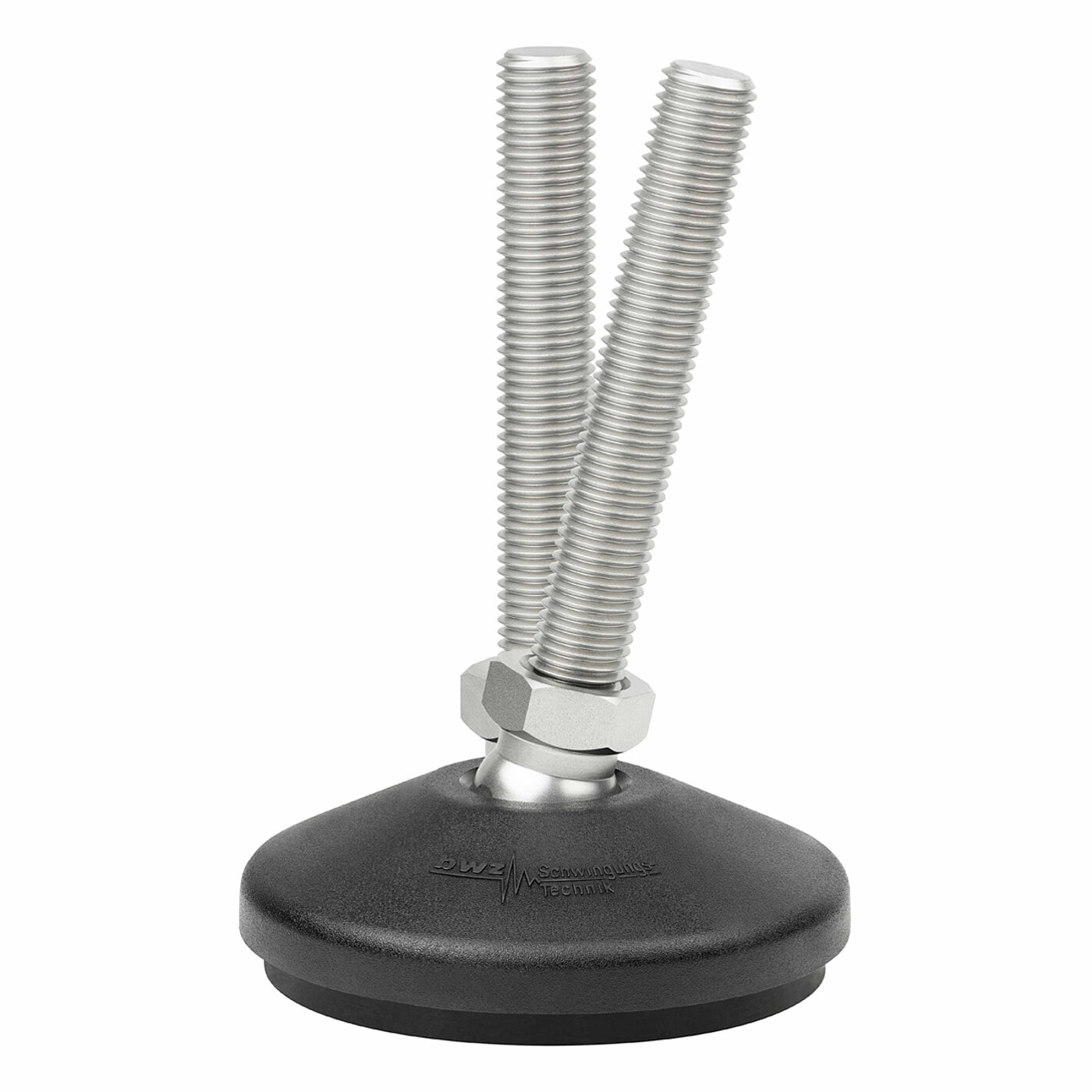

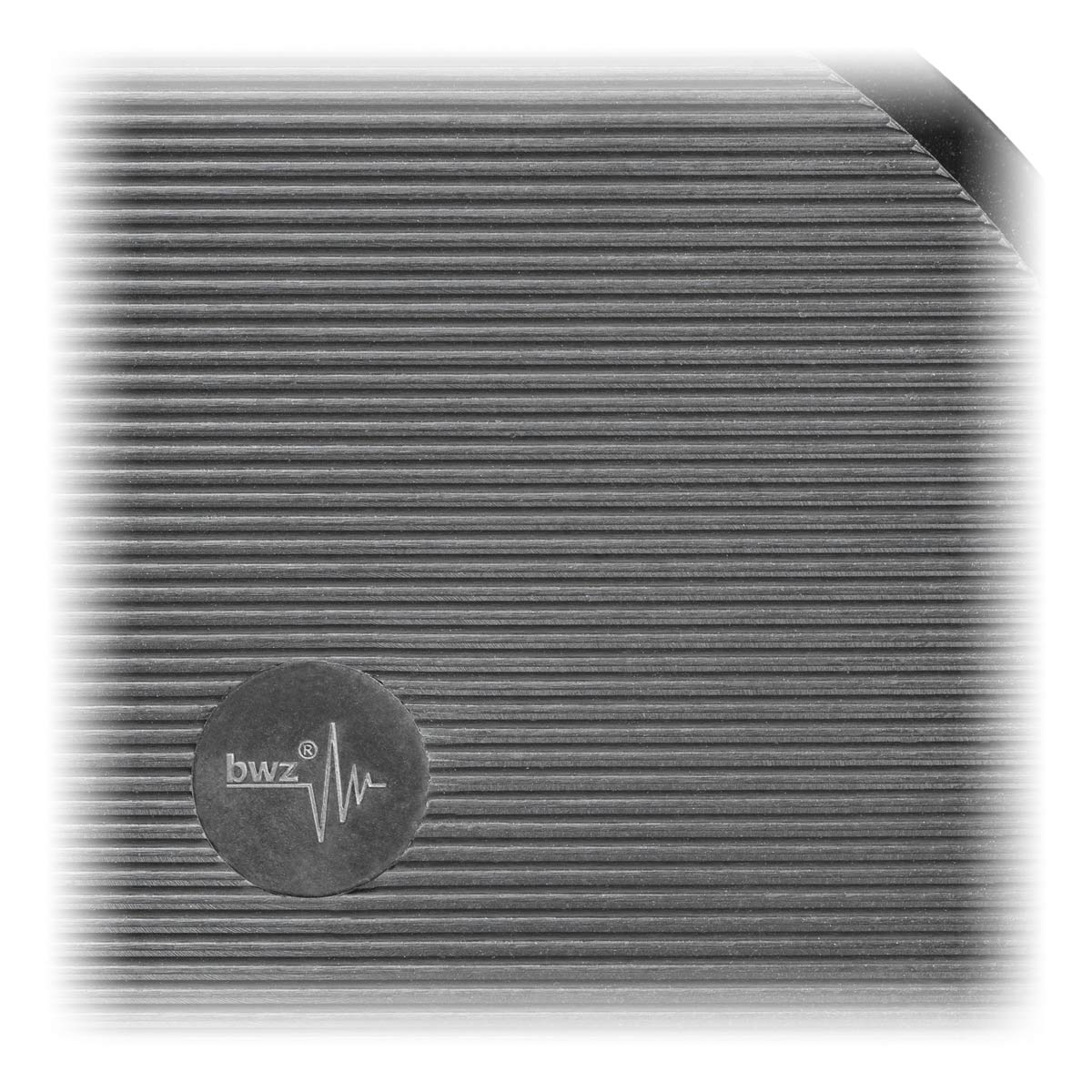

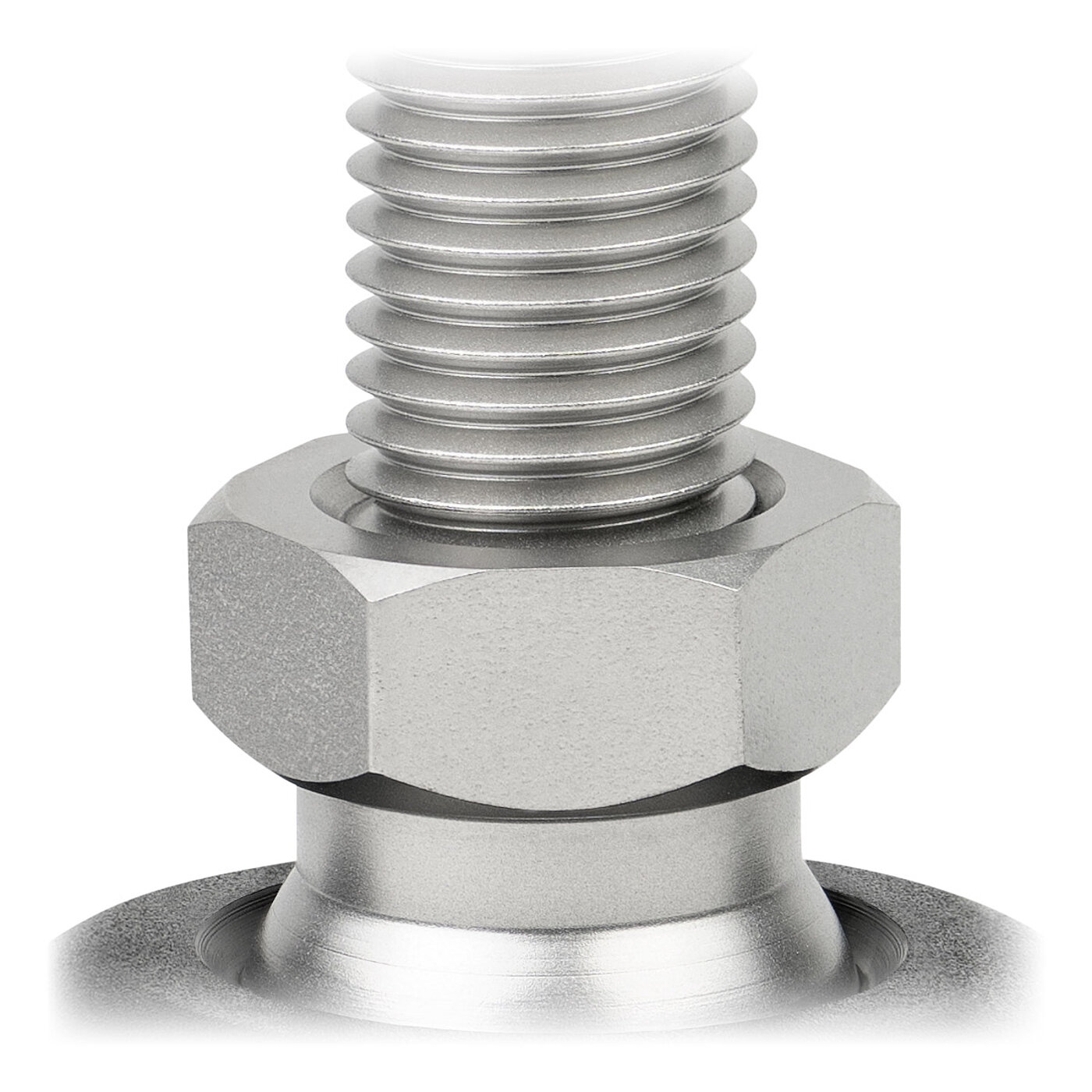

The levelling element consists of a base plate of reinforced polyamide, as well as a levelling screw and interconnecting spheric pendulum, both made of stainless steel. The patterned non-slip and isolation plate ( NBR, 70 Shore ) at the bottom is persistant towards water, mineral oils, fuels, alkaline and acidic solutions, soap based lyes, salts and detergents.

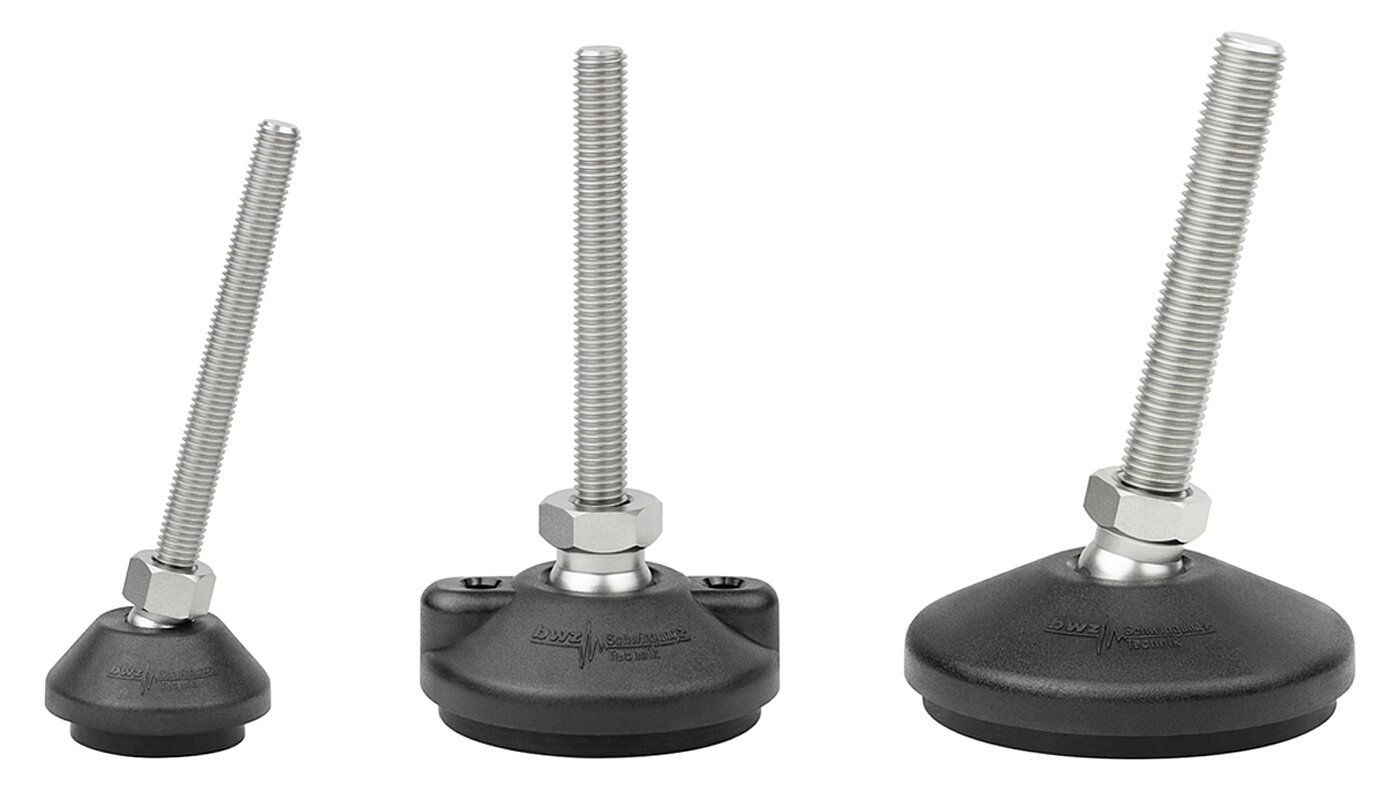

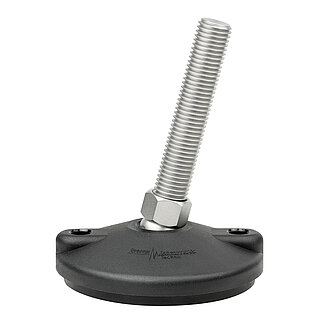

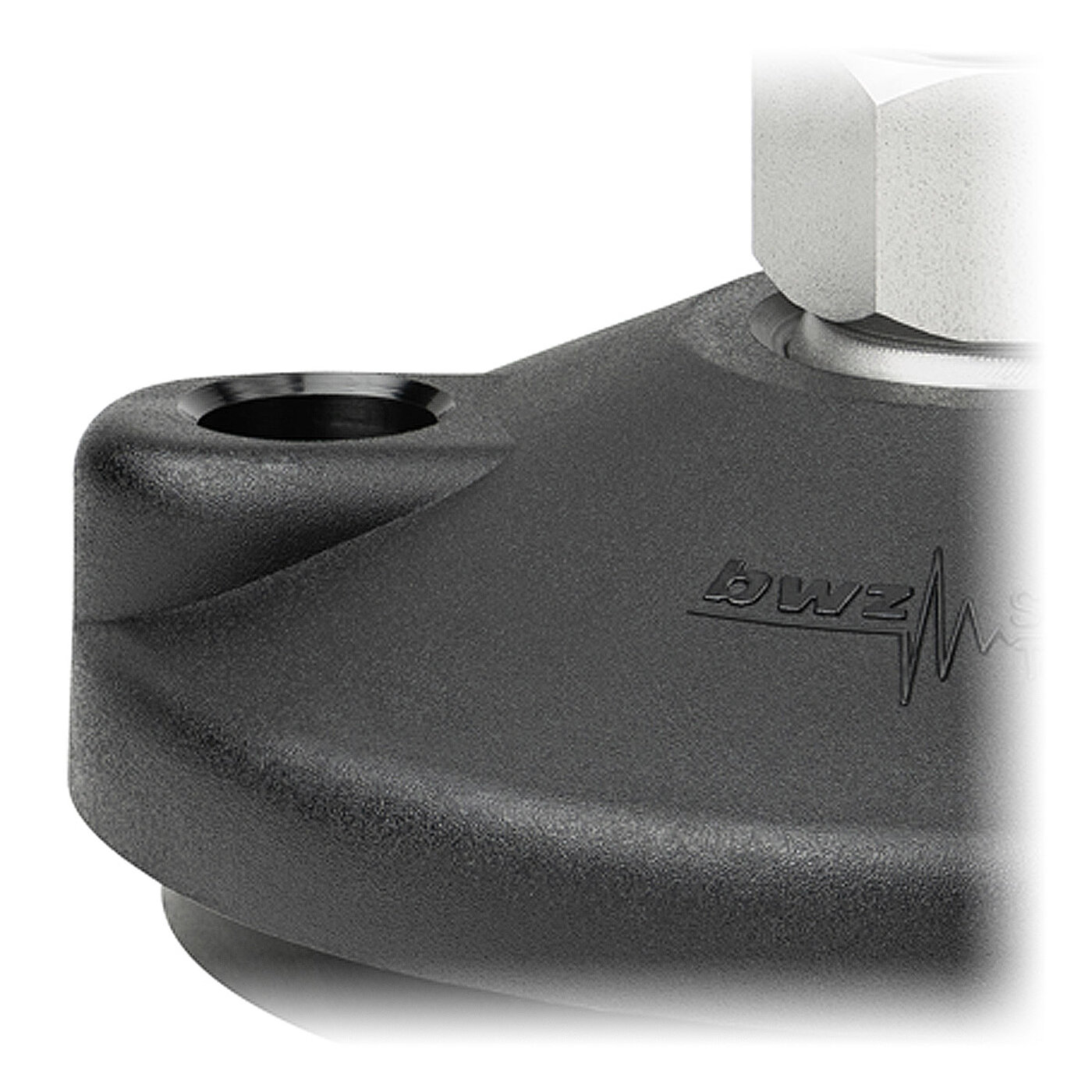

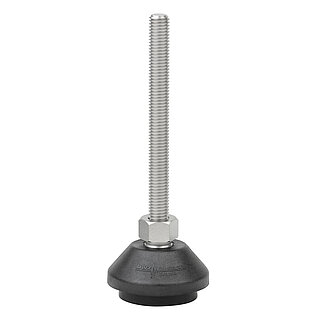

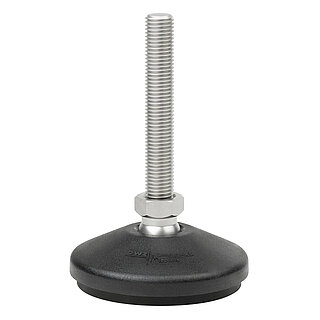

Diameters of 50 mm , 80 mm, 100 mm and 120 mm, modular variable net thread lengths and loads ranging from 300 daN up to 1500 daN. Version ‘B‘ with holes for floor-anchoring ( except element size K 5 ).
Owing to our organically grown manufacturing depth ( CNC and conventional ), e.g. special thread lengths or additional spanner flats as per customer requirement are always possible.
Ideally suited for combined application with threaded square or round tube inserts ( also available from us ).
