levelling elements in cast iron

Round ( R ), square ( V ) and rectangular ( VL ) base plates made of cast iron, e.g. with loose levelling screws, tightly fastened levelling threads or diverse pendulum solutions, according to demand and machine situation. In combination with our elastomers ( NBR ) of various shorehardnesses for installation and vibration-isolated mounting of machines of all kind.

Special thread lengths and customized adaptations are always possible due to our manufacturing depth.

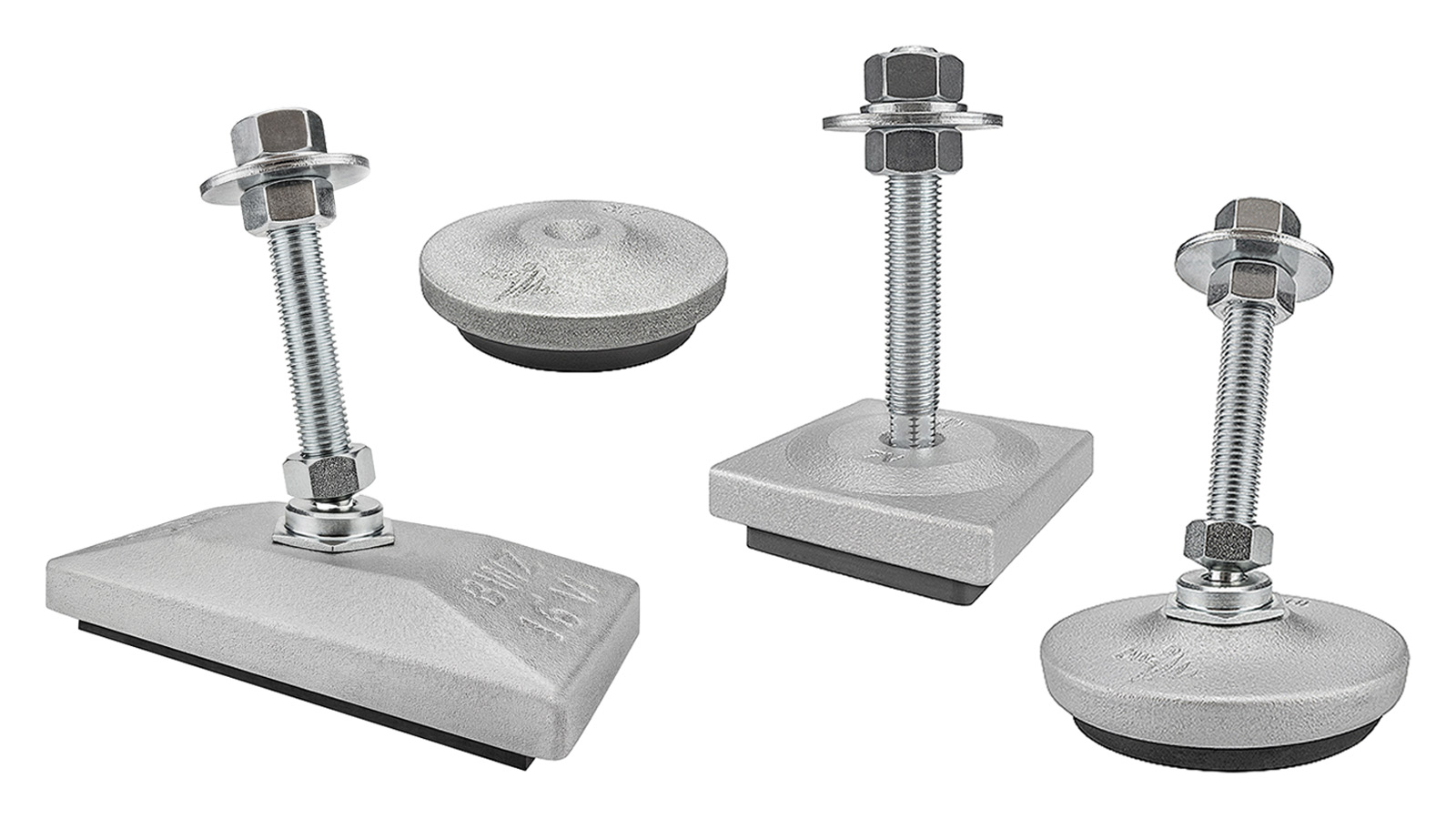

a group picture of four silver-coloured levelling elements made of cast iron with and without screws and in different shapes, i.e. round, square and rectangular, each with a black elastomer board at the bottom for vibration dampening, isolated on white background

round types

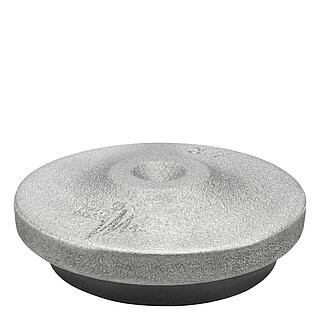

a round, silver-lacquered levelling element made of cast iron, with a cone-shaped indention in the centre for levelling screws, and a black elastomer at the bottom for vibration damping, isolated on white background

type R

levelling screw separate

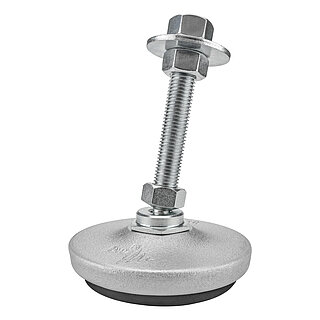

a round, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a pressure fitting with safety ring on top of the cast iron corpus, and black elastomer for vibration damping at the bottom, isolated on white background

type R P

pendulum

a round, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a pressure fitting on top of the cast iron corpus, secured with two small grub screws on the sides against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

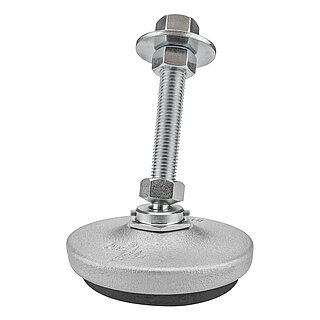

type R PE

pendulum - with locking screw

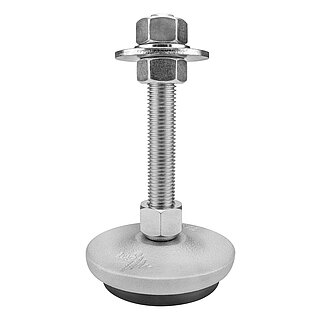

a round, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a hexagonal cap nut on top of the cast iron corpus, with the corpus and cap nut tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type R PH

pendulum with cap nut

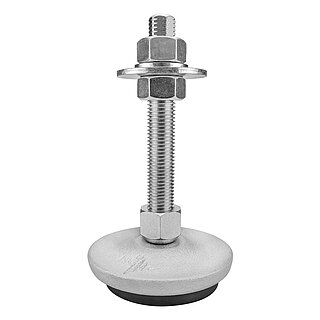

a round, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw with a hexagonal spanner flat at the top end, placed in a hexagonal cap nut sitting on top of the cast iron corpus, with the corpus and cap nut tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type R PHZ

pendulum - double hex

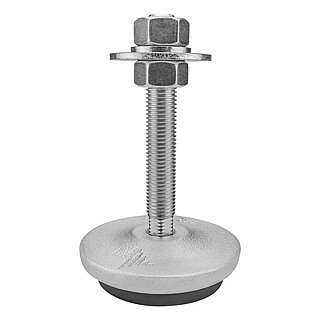

a round, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw with a hexagonal spanner flat at the bottom end, placed on top of the cast iron corpus, with the corpus and levelling screw tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type R PZ

pendulum - bottom hex

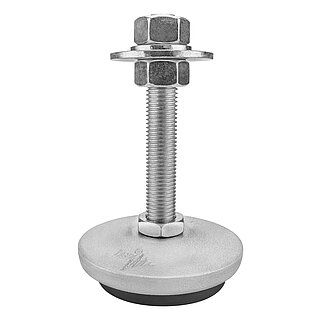

a round, silver-lacquered levelling element made of cast iron, with a non-pendulum zinc-coated levelling screw with a counter flat hexagonal nut at the bottom end, placed on top of the cast iron corpus, with the corpus and levelling screw tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type R ST

thread non-pendulum

square types

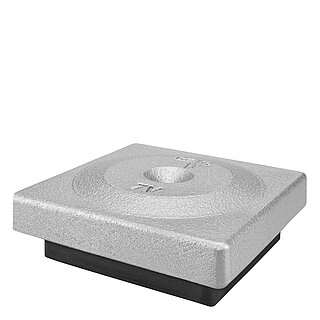

a square, silver-lacquered levelling element made of cast iron, with a cone-shaped indention in the centre for levelling screws, and a black elastomer at the bottom for vibration damping, isolated on white background

type V

levelling screw separate

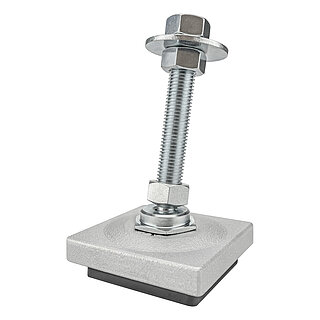

a square, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a pressure fitting with safety ring on top of the cast iron corpus, and black elastomer for vibration damping at the bottom, isolated on white background

type V P

pendulum

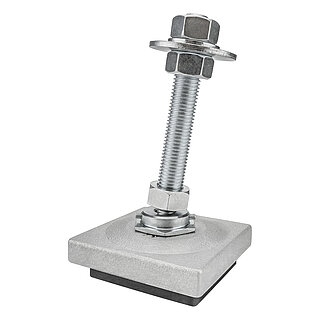

a square, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a pressure fitting on top of the cast iron corpus, secured with two small grub screws on the sides against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type V PE

pendulum - with locking screw

a square, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a hexagonal cap nut on top of the cast iron corpus, with the corpus and cap nut tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

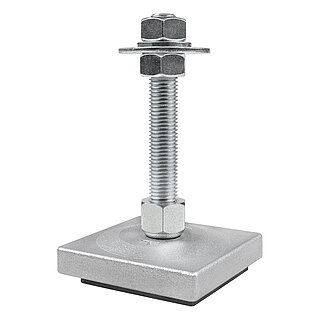

type V PH

pendulum with cap nut

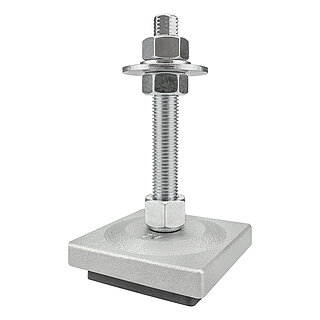

a square, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw with a hexagonal spanner flat at the top end, placed in a hexagonal cap nut sitting on top of the cast iron corpus, with the corpus and cap nut tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type V PHZ

pendulum - double hex

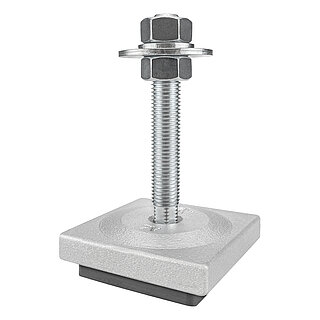

a square, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw with a hexagonal spanner flat at the bottom end, placed on top of the cast iron corpus, with the corpus and levelling screw tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type V PZ

pendulum - bottom hex

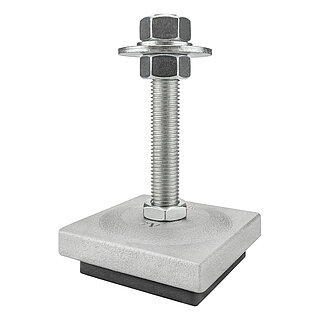

a square, silver-lacquered levelling element made of cast iron, with a non-pendulum zinc-coated levelling screw with a counter flat hexagonal nut at the bottom end, placed on top of the cast iron corpus, with the corpus and levelling screw tightly connected to each other against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type V ST

thread non-pendulum

rectangular types

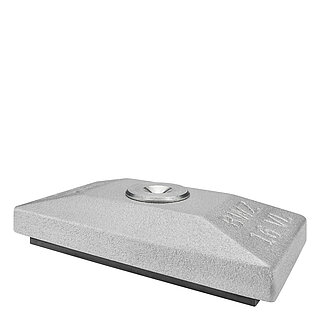

a rectangular, silver-lacquered levelling element made of cast iron, with a cone-shaped screwed-in indention made of zinc-coated steel in the centre for levelling screws, and a black elastomer at the bottom for vibration damping, isolated on white background

type VL

levelling screw separate

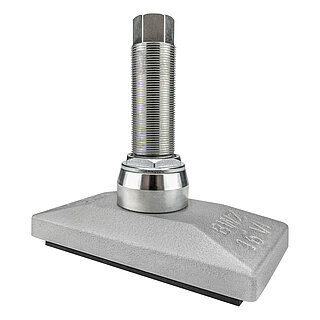

a rectangular, silver-lacquered levelling element made of cast iron, with a central screwed-in pendulum-action hollow levelling screw made of zinc-coated steel with fine pitch thread and hexagonal spanner flats at the top end, and a black elastomer at the bottom for vibration damping, isolated on white background

type VL P HS

with hollow screw - pendulum

a rectangular, silver-lacquered levelling element made of cast iron, with a pendulum-action zinc-coated levelling screw placed in a pressure fitting on top of the cast iron corpus, secured with two small grub screws on the sides against falling apart, and black elastomer for vibration damping at the bottom, isolated on white background

type VL PE

pendulum - with locking screw
