floor-fastening plates for levelling elements

BFPK

suitable for levelling elements LBE PH

floor-fastening plates BFPK
(384 KB, pdf)

made of high-strength compound material
precision-milled to shape
with elongated holes
for ground dowels
for machine positioning
under strong horizontal forces
and wandering tendency
easy installation
even retroactively
for already existing set-ups
3 sizes available
BFPK 7 suitable for LBE 7 PH
BFPK 10 suitable for LBE 10 PH
BFPK 13 suitable for LBE 13 PH

description	article number	suitable forlevelling elements	lxb(mm)	h(mm)	t(mm)	d(mm)	e(mm)	f(mm)	x(mm)	y(mm)
BFPK 7	1998 0001	LBE 7 PH	130x100	11	6	71	11	22	12	20
BFPK 10	1998 0002	LBE 10 PH	182,5x125	11	6	99	13	35	17	20
BFPK 13	1998 0003	LBE 13 PH	229,5x159	11	6	129,5	18	40	15	20

a schematic drawing of a floor-fixture plate for levelling elements, made of precision-milled composite material, with elongated holes for floor-anchoring, in the side view and flat-lay view from above, on white background

bolt anchors FAZ

zinc-coated ( gvz ) - for ground-bolting of the floor-fastening plates BFPK

description	article number	suitable forfloor-fastening plates	material	threadØ x length(mm)	spanner widthSW(mm)	nominal drill diameterd₀(mm)
FAZ II 10/20 gvz	10320 00010	BFPK 7	zinc-coated	M 10 x 63	17	10
FAZ II 12/10 gvz	10320 00007	BFPK 10	zinc-coated	M 12 x 61	19	12
FAZ II 16/5 gvz	10320 00016	BFPK 13	zinc-coated	M 16 x 64	24	16
description	article number	suitable forfloor-fastening plates	*min. drill hole depth h₂(mm)	dowel lengthl(mm)	net length max.h_ef,max./h_ef,min.t_fix	assembly torque(Nm)
FAZ II 10/20 gvz	10320 00010	BFPK 7	95	105	20/40 mm	45
FAZ II 12/10 gvz	10320 00007	BFPK 10	100	110	10/30 mm	60
FAZ II 16/5 gvz	10320 00016	BFPK 13	115	128	5/25 mm	110

*with stick-through mounting

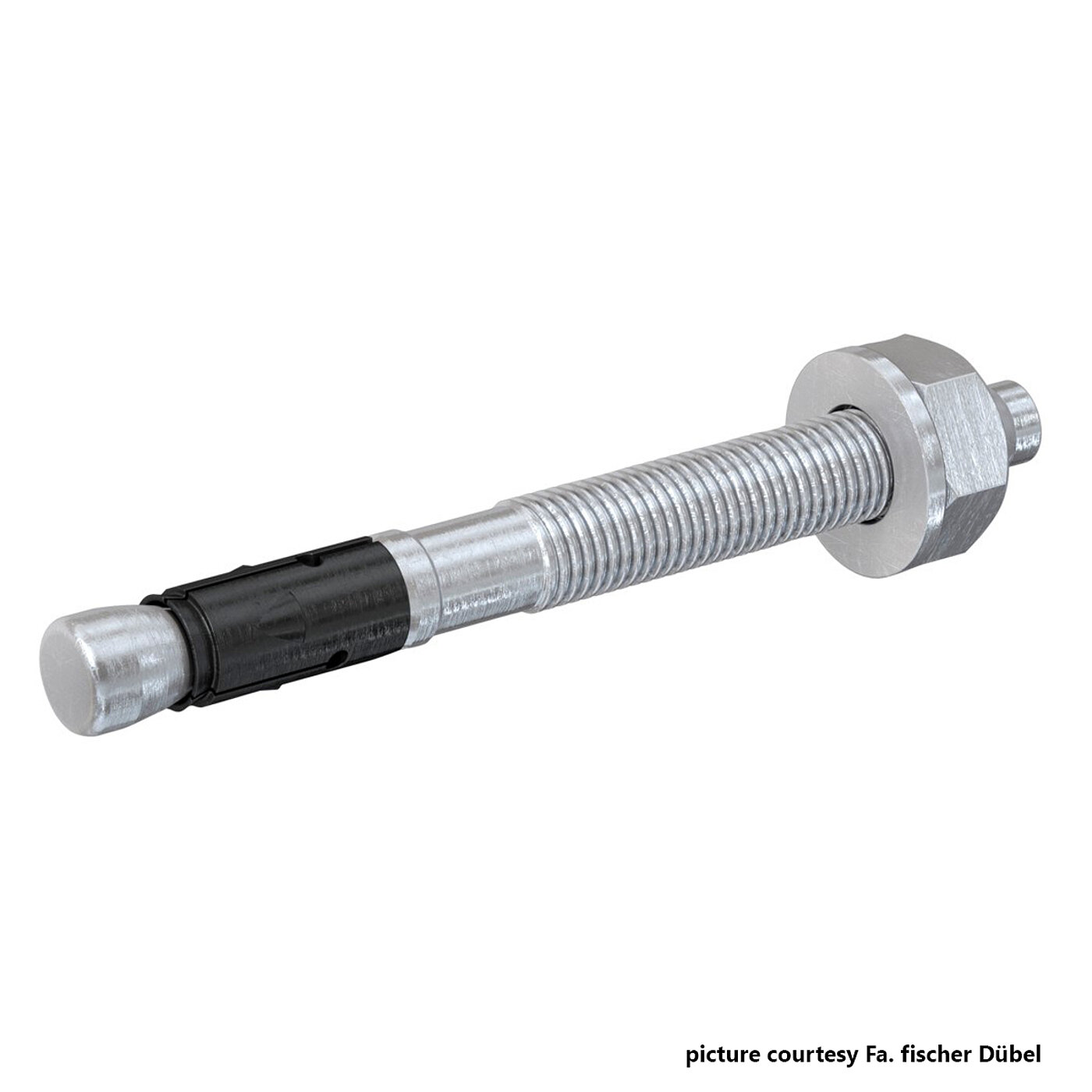

bolt anchor FAZ for floor-fastening plates BFPK - bwz Schwingungstechnik

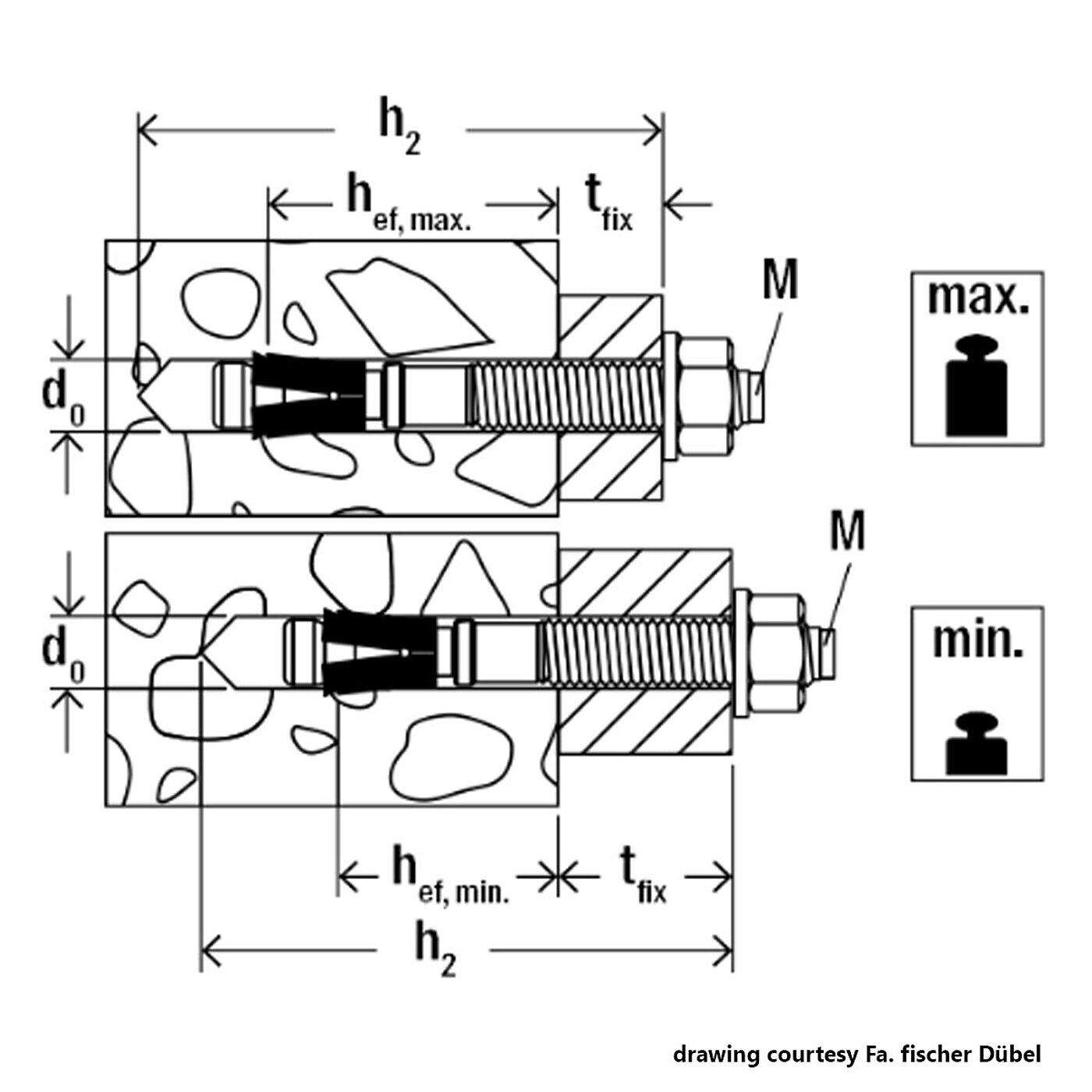

bolt anchor FAZ for floor-fastening plates BFPK schematic drawing - bwz Schwingungstechnik
