profile technology -
solutions with aluminium profiles

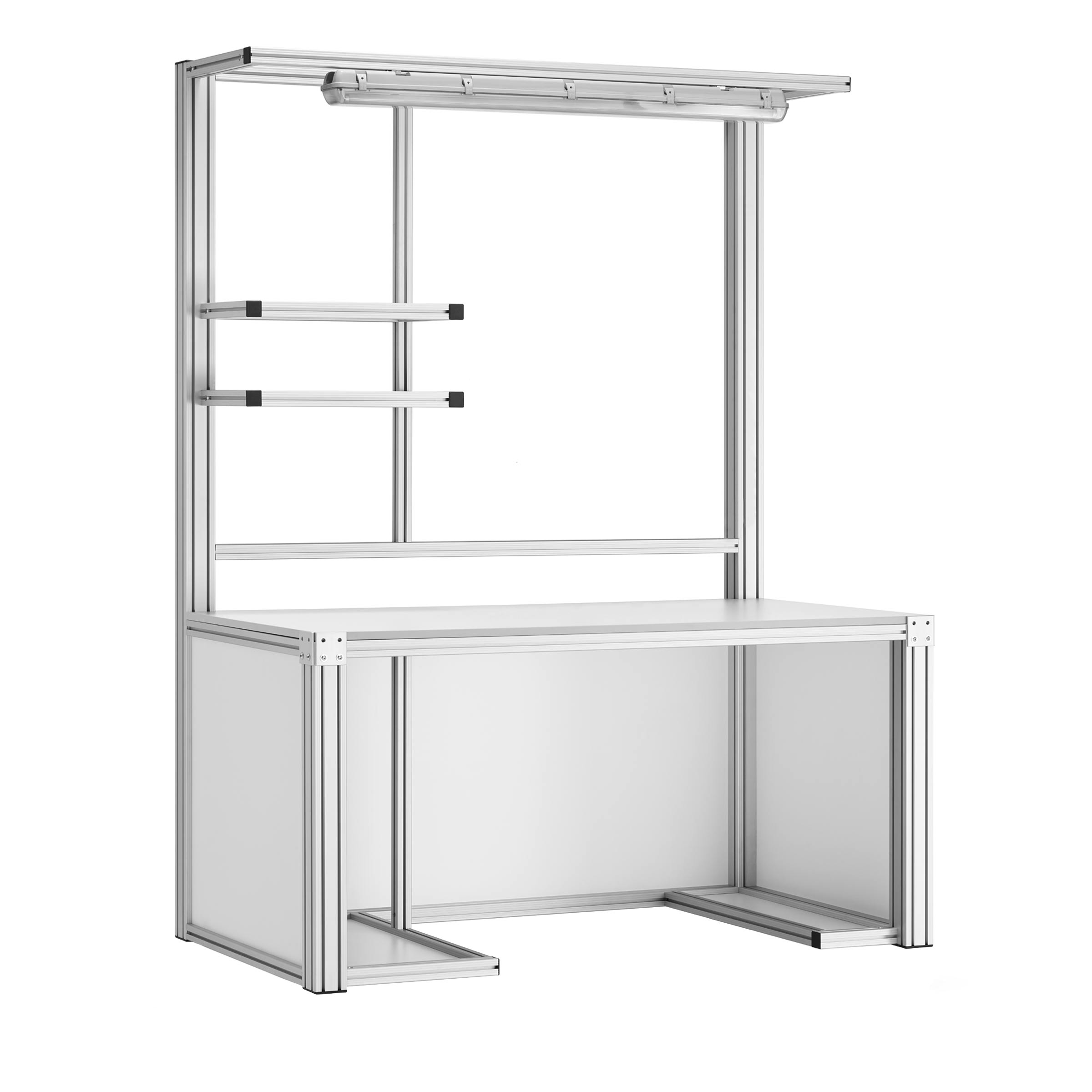

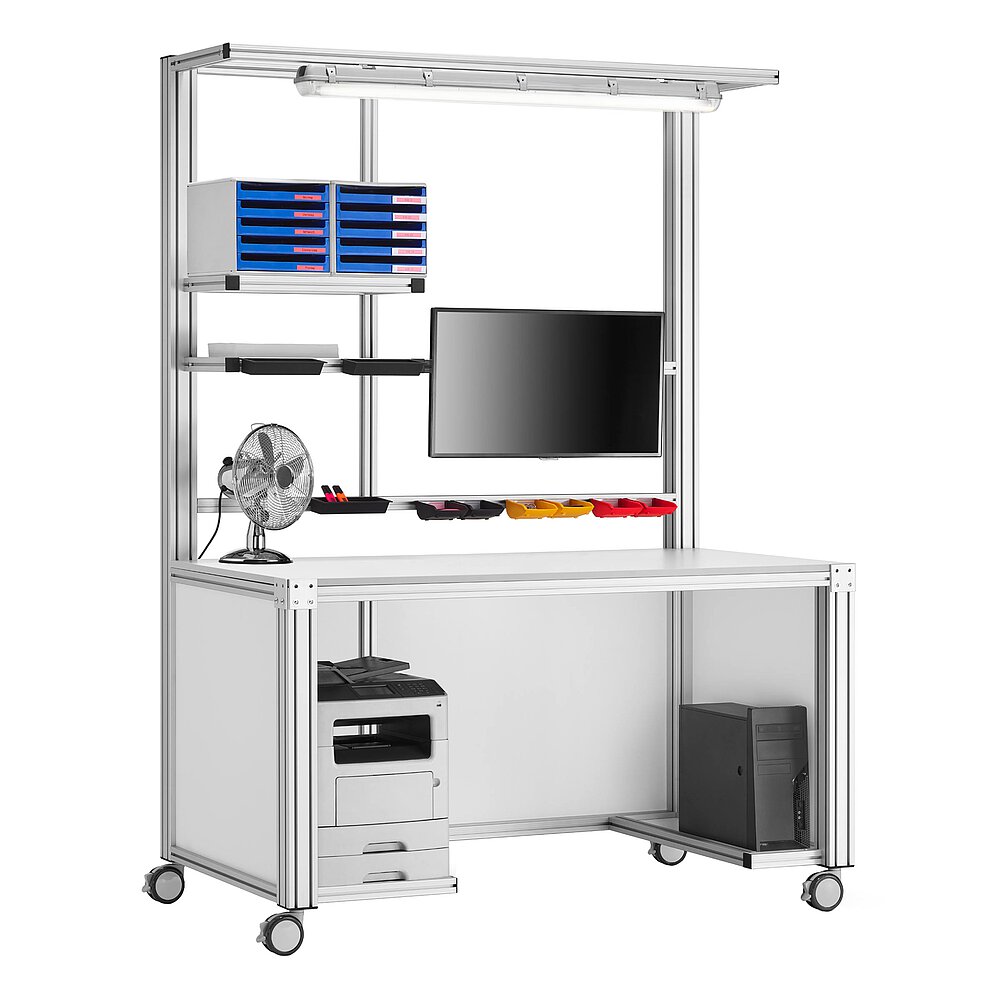

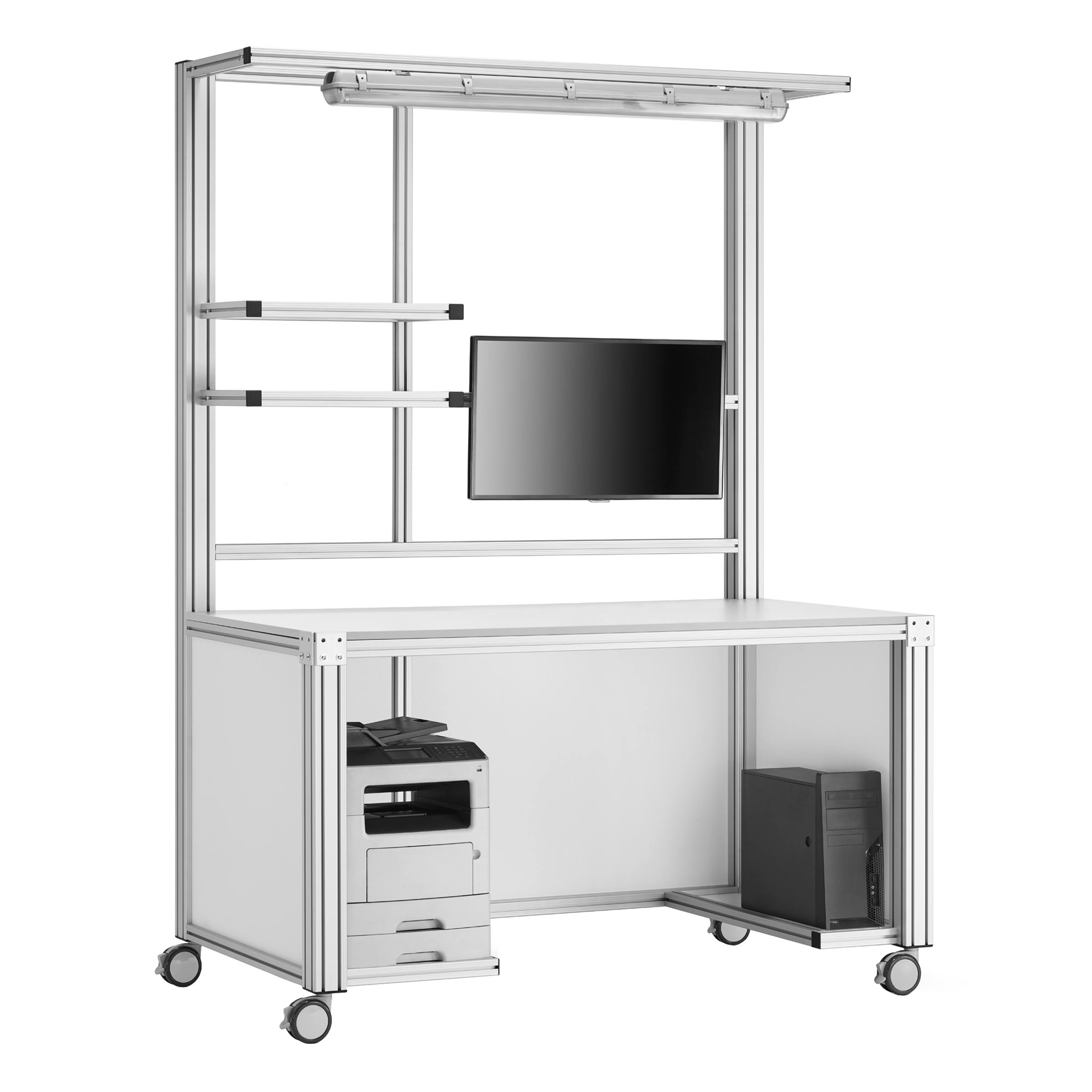

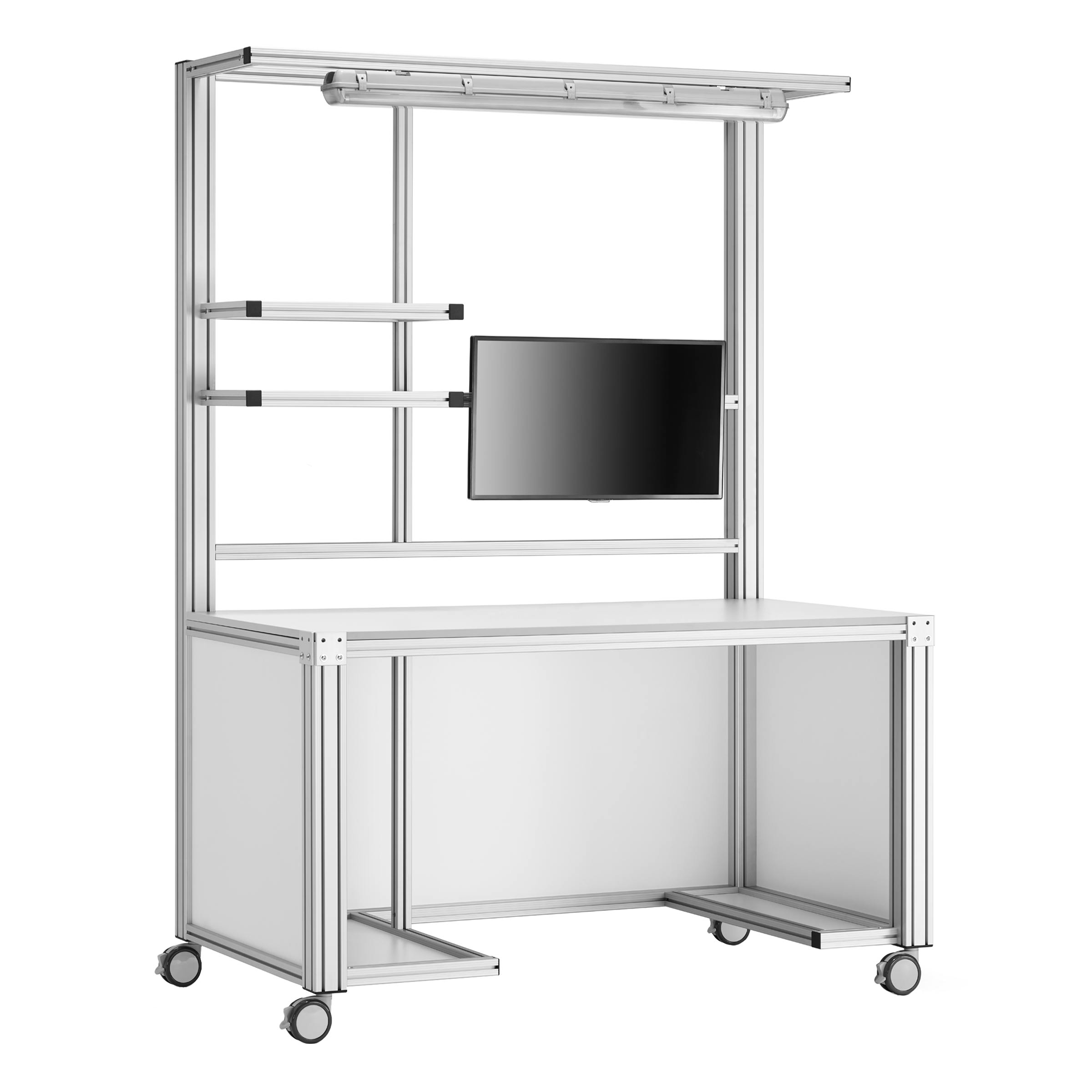

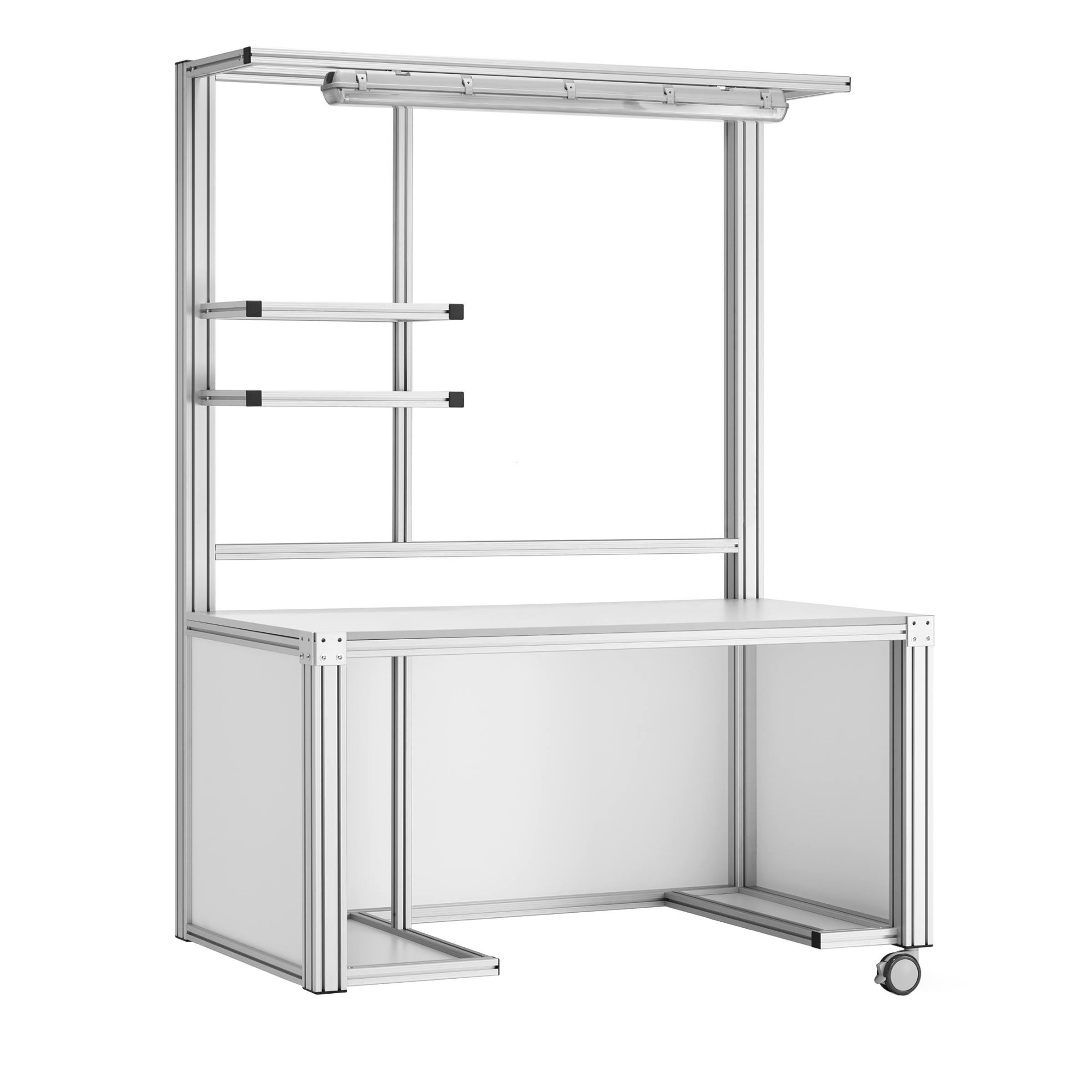

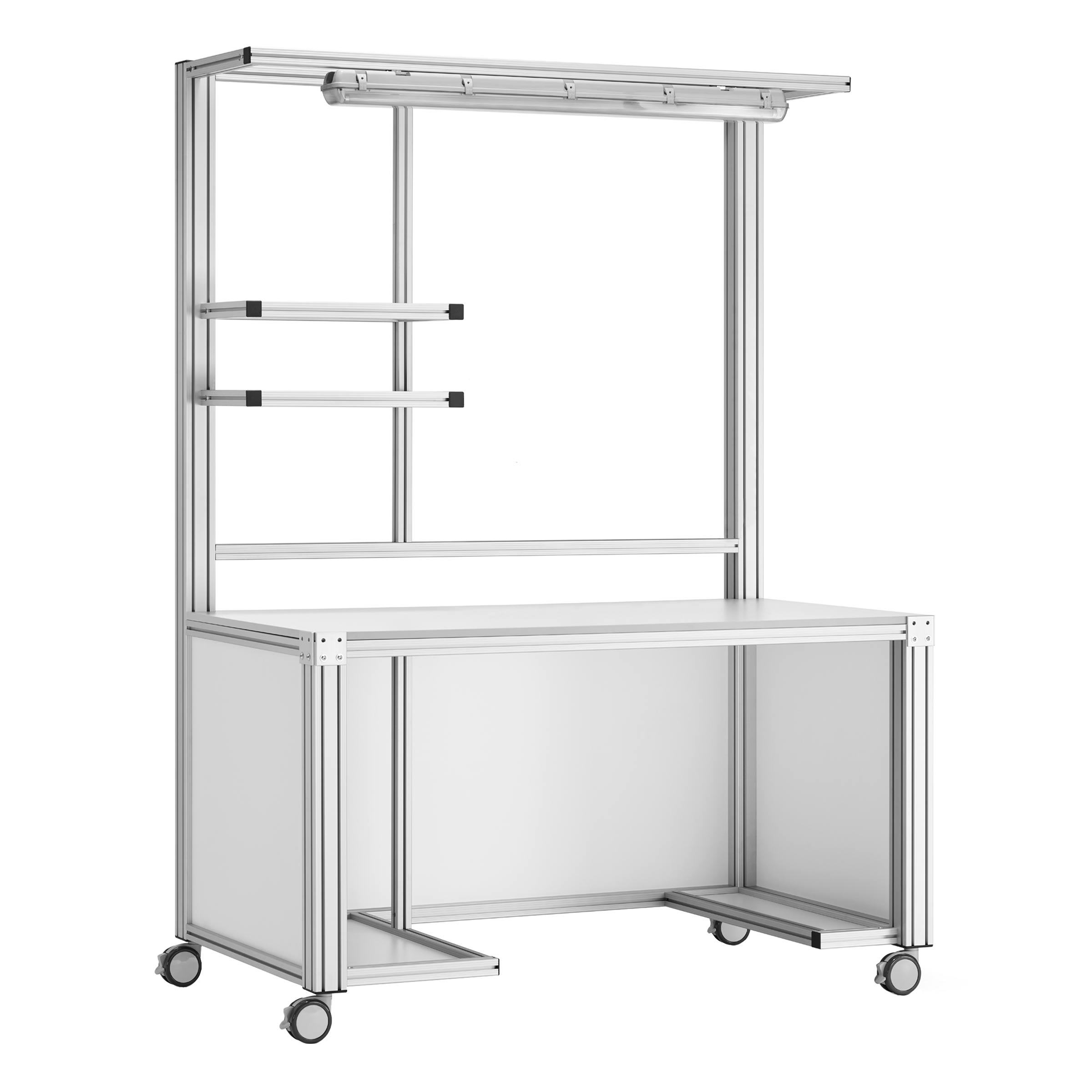

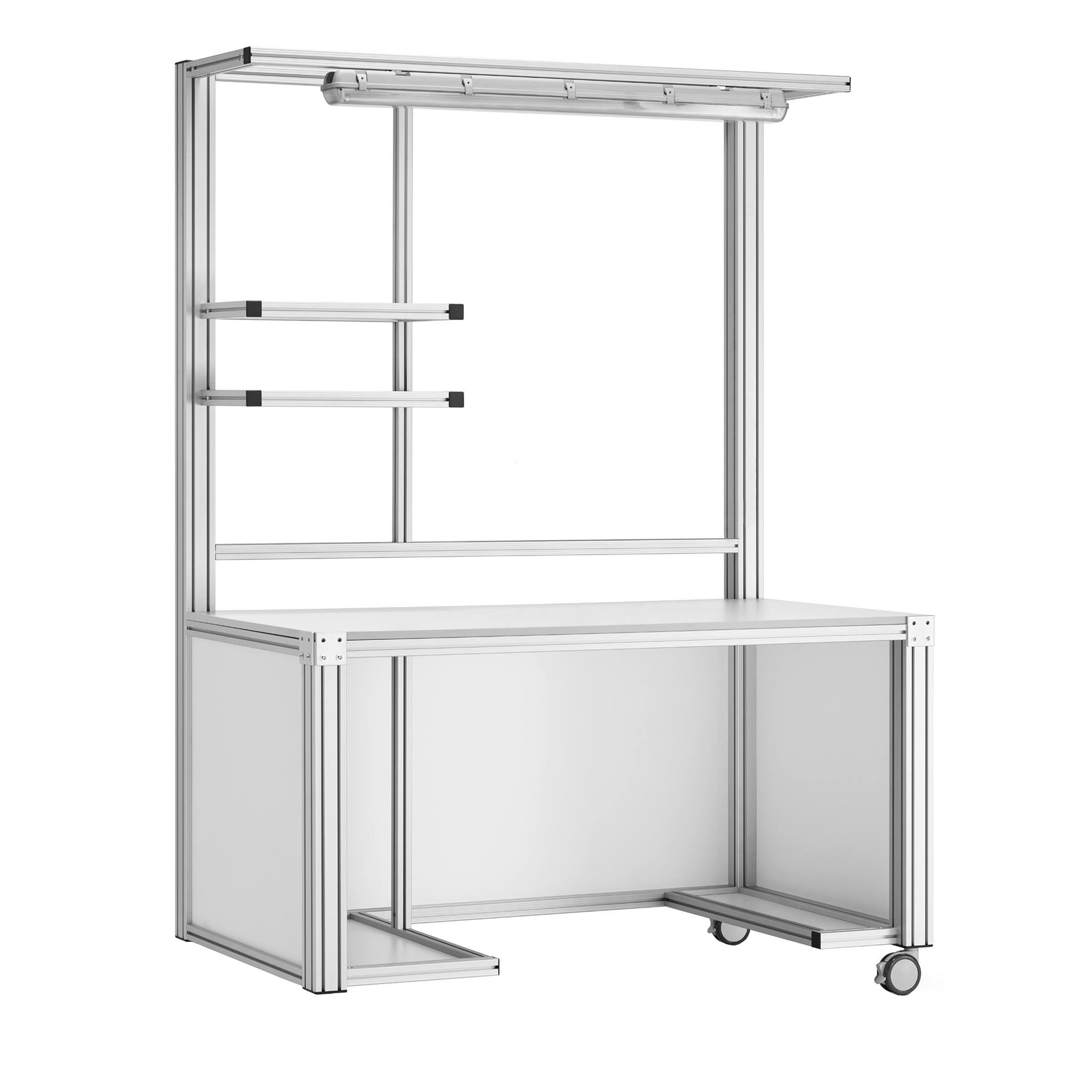

example: logistics table



A large array of accessories allows for applying the aluminium profiles in a multitude of combinations, as shown here exemplary with this customer project of a mobile work table in the logistics area - even upgrades / extensions / re-design / replacements of existing projects are possible with little strain on time and money.

For further information on the different bar material sizes of the aluminium profiles & related accessories, as well as for further inspiration on the almost endless possibilities with aluminium profiles, please feel free to contact us at Your leisure, or refer to the catalogue.



further solutions with aluminium profiles

a small trolley made of aluminium profiles, with two storeys, wooden inlay shelvings, black pushbar handle made of plastics, four large, fastenable & turnable wheels, three red EURO stackable boxes and gooseneck-clip document holder with to-do list, isolated on white background

personal trolley

more
a tall frame made of aluminium profiles, with mounting brackets for ground installation, and framed grey signboard with graphic depictions of loading zone and forklift traffic, isolated on white background

outdoor signage

more
an elongated table frame made of aluminium profile of square cross-section, on four table legs and laid with a massive dark natural stone slab table top, mounted on stainless steel levelling elements screwed into the table legs, isolated on white background

conference table

more
a square, column-shaped table made of aluminium profiles, with milky-transparent side panes and black natural stone table top, on it placed a pair of blue high-heeled shoes, isolated on white background

exhibition display

more
a square, cube-shaped metrology table made of aluminium profiles, with thick black granite table top, mounted on black air-cushion vibro-mounts FLN, and with precision height marker, calliper and levelling element placed on the granite table top, isolated on white background

metrology table

more
a mobile assembly station made of aluminium profiles on fastenable & turnable wheels, with white table top, angle-adjustable foot rest, angle-adjustable overhead storage area and built-in drawer compartment with three drawers, isolated on white background

assembly station

more
a pallet carrier made of aluminium profile in the elongated shape of EURO palettes, with four fastenable and turnable wheels, black pushbar handle, six vertical cross beams for the second storey, on which loaded a brown wooden palette in EURO size and secured all around with screwed-on vertical fixture plates, isolated on white background

pallet carrier

more
a tall, slim, dismountable product display made of aluminium profiles with nine vertically fastened, differently-coloured TyreGuard® tyre protectors on the front, mounted on stainless steel levelling elements, isolated on white background

product display

more
a tyre rack made of aluminium profiles with two storeys, each lined with red TyreGuard® tyre protectors and loaded with four tyres on alloy rims, both storeys secured with a cross-wise chain, isolated on white background

tyre rack with TyreGuard®

more
a mobile flip-open style pavement signage made of aluminium profiles, on four large fastenable & turnable wheels, with inlaid neutral DIN A 2 place holder for print and advertorial designs of any kind, isolated on white background

pavement signage

more
