rubber-metal bearings

versatile round-shaped vibro-mounts for motors, pumps, compressors, HVAC-equipment et.c.

suitable for mechanical thrust- and pressure strain

available in 43, 57 und 68 shore A

materials: NR ( natural rubber ), metal components zinc-galvanized

on request: special elements in NBR ( nitrile rubber ) or EPDM ( ethylene-propylene-diene-monomer-rubber ), metal components in stainless steel and/or electrically conductive

rubber-metal bearings
(1 MB, pdf)

a rubber-metal bearing with outer threads on both sides and in between a black, cylindrical elastomer corpus, isolated on white background

type A

outer thread on both sides

a rubber-metal bearing with outer thread, inner thread and in between a black, cylindrical elastomer corpus, isolated on white background

type B

outer-/inner thread

a rubber-metal bearing with inner threads on both sides and in between a black, cylindrical elastomer corpus, isolated on white background

type C

inner thread on both sides

a rubber-metal bearing with outer thread on one side and a black, cylindrical elastomer corpus, isolated on white background

type D

outer thread on one side

a rubber-metal bearing with inner thread on one side and a black, cylindrical elastomer corpus, isolated on white background

type E

inner thread on one side

a rubber-metal bearing with outer thread on one side and a black, parabolic elastomer corpus, isolated on white background

type DP

parabolic with outer thread

a rubber-metal bearing with outer thread on one side, black cylindrical elastomer corpus and convex-shaped inner curvature at the corpus end, isolated on white background

type DS

with suction base and outer thread

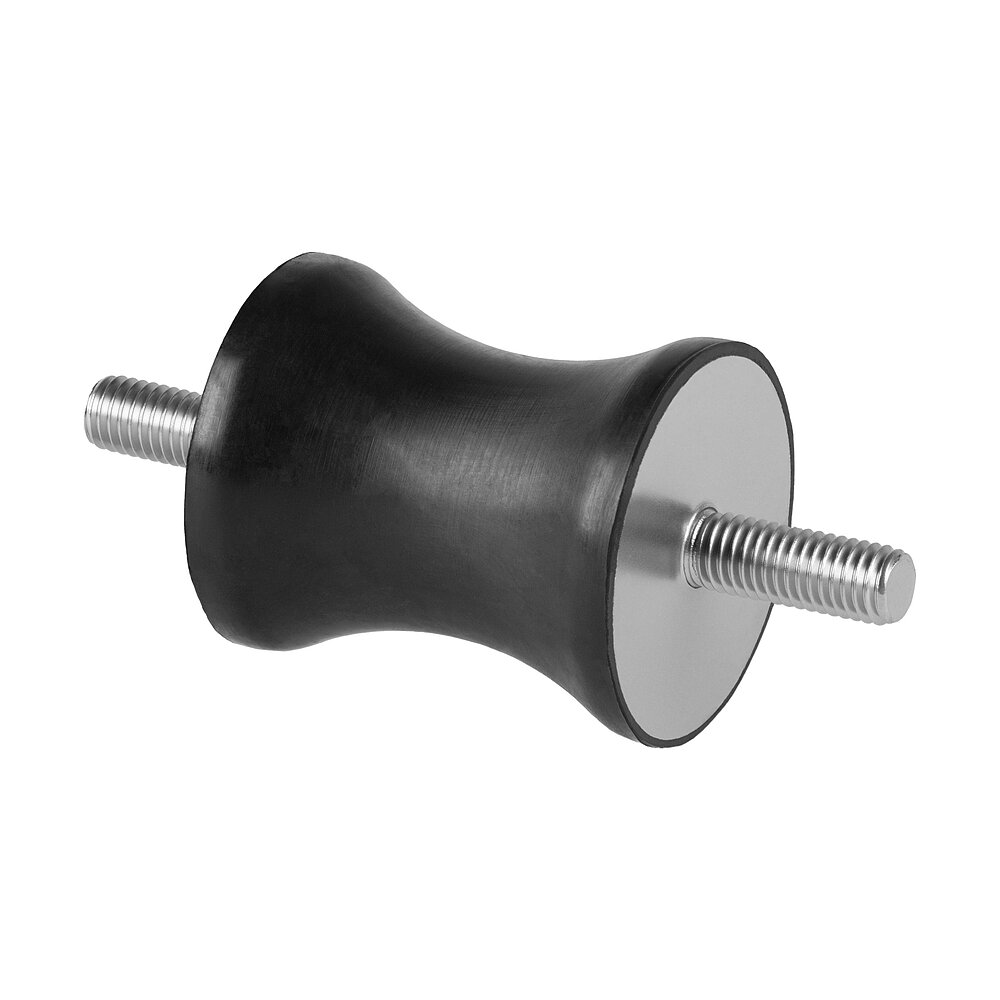

a rubber-metal bearing with outer threads on both sides and in between a waist-shaped black elastomer corpus, isolated on white background

type AT

waist-shaped with outer thread on both sides

a rubber-metal bearing with inner threads on both sides and in between a black, waist-shaped elastomer corpus, isolated on white background

type CT

waist-shaped with inner thread on both sides

a rubber-metal cap bearing with twice-drilled bottom plate, threaded hexagonal insert at the top and black elastomer corpus in between, isolated on white background

type H1

with bolt-on option and holes for floor-fastening

a rubber-metal bearing with outer thread on one side and a black, conical elastomer corpus, isolated on white background

type DK

conical with outer thread

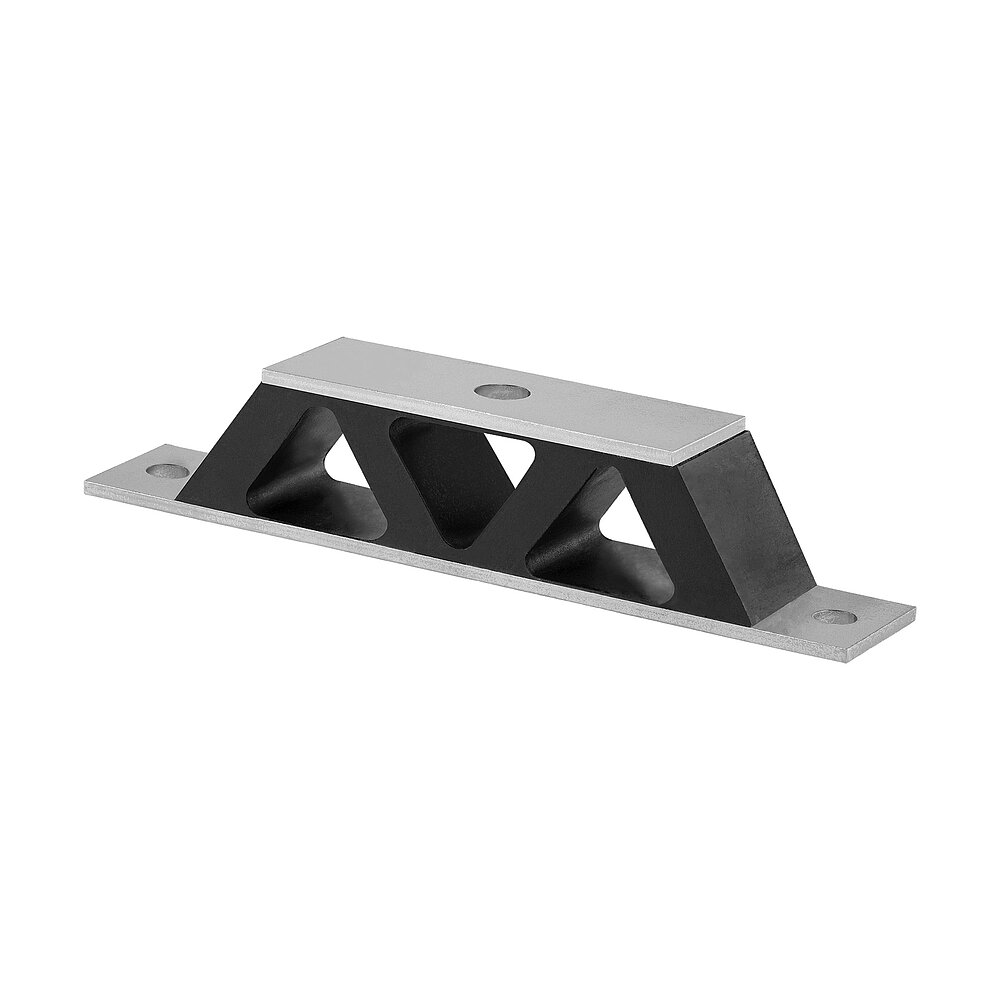

a rubber-metal bar-style bearing with twice-drilled bottom plate at the ends, centre-drilled carrier plate at the top and a black elastomer corpus with three triangular-shaped hollow chambers in between, isolated on white background

type W

triple chamber, bolt-on option, holes for floor-fastening

a rubber-metal bar-style bearing with twice-drilled bottom plate, single-drilled carrier plate at the top and a black elastomer corpus with a triangular-shaped hollow chamber in between, isolated on white background

type V

single chamber, bolt-on option, holes for floor-fastening

an elongated, black elastomer, vulcanized in between two black-lacquered metal plates, isolated on white background

type LBM

with metal plates on both sides
