profile technology -
solutions with aluminium profiles

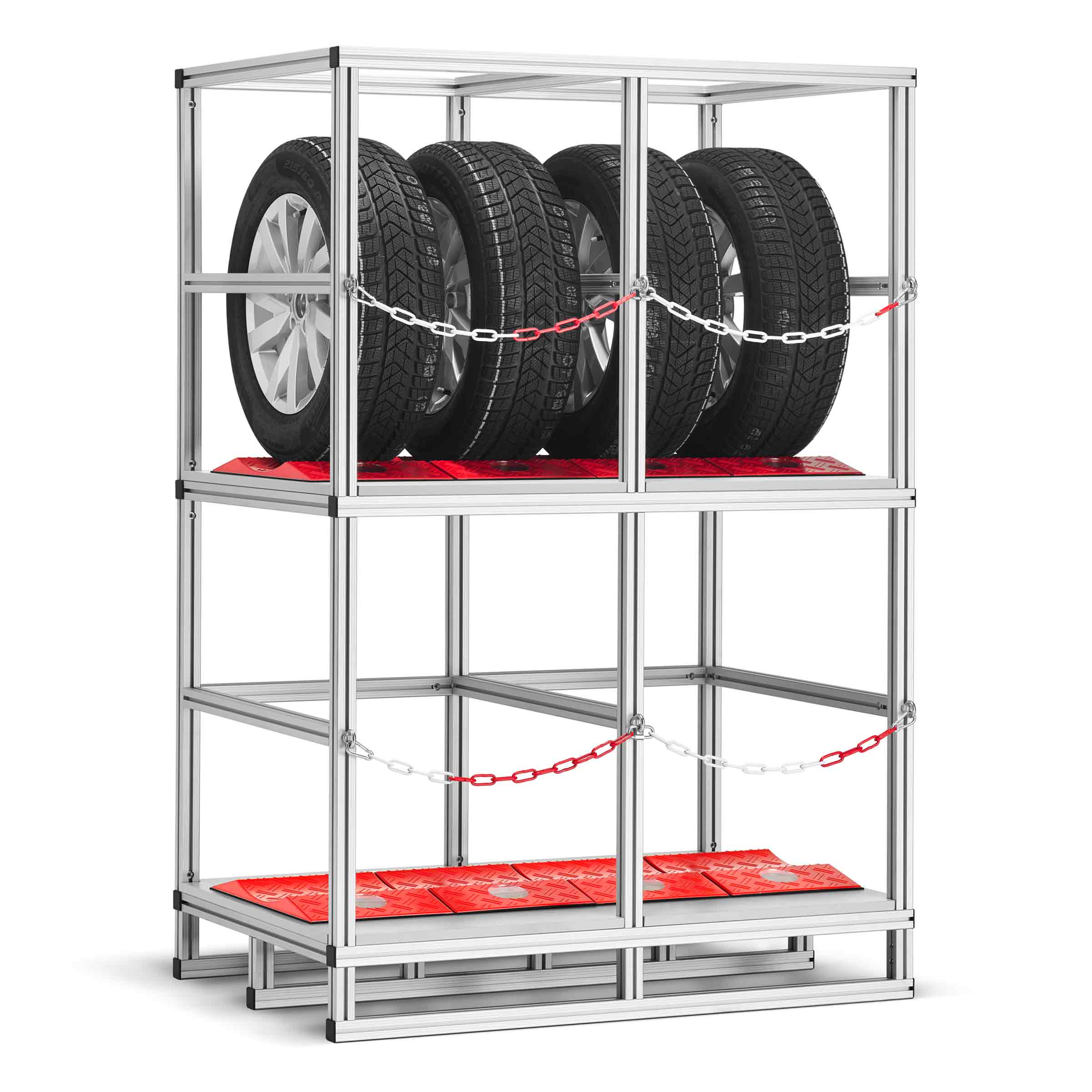

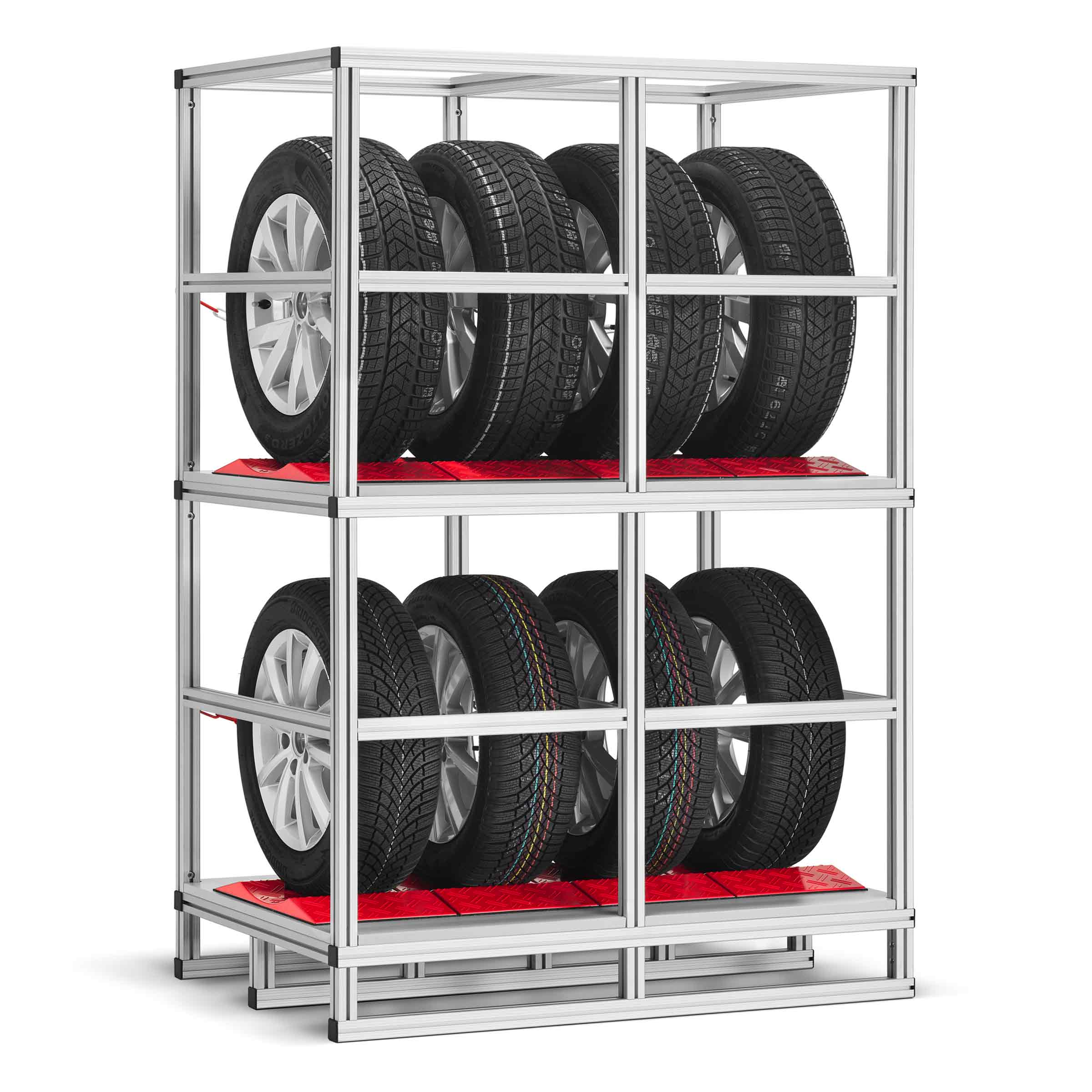

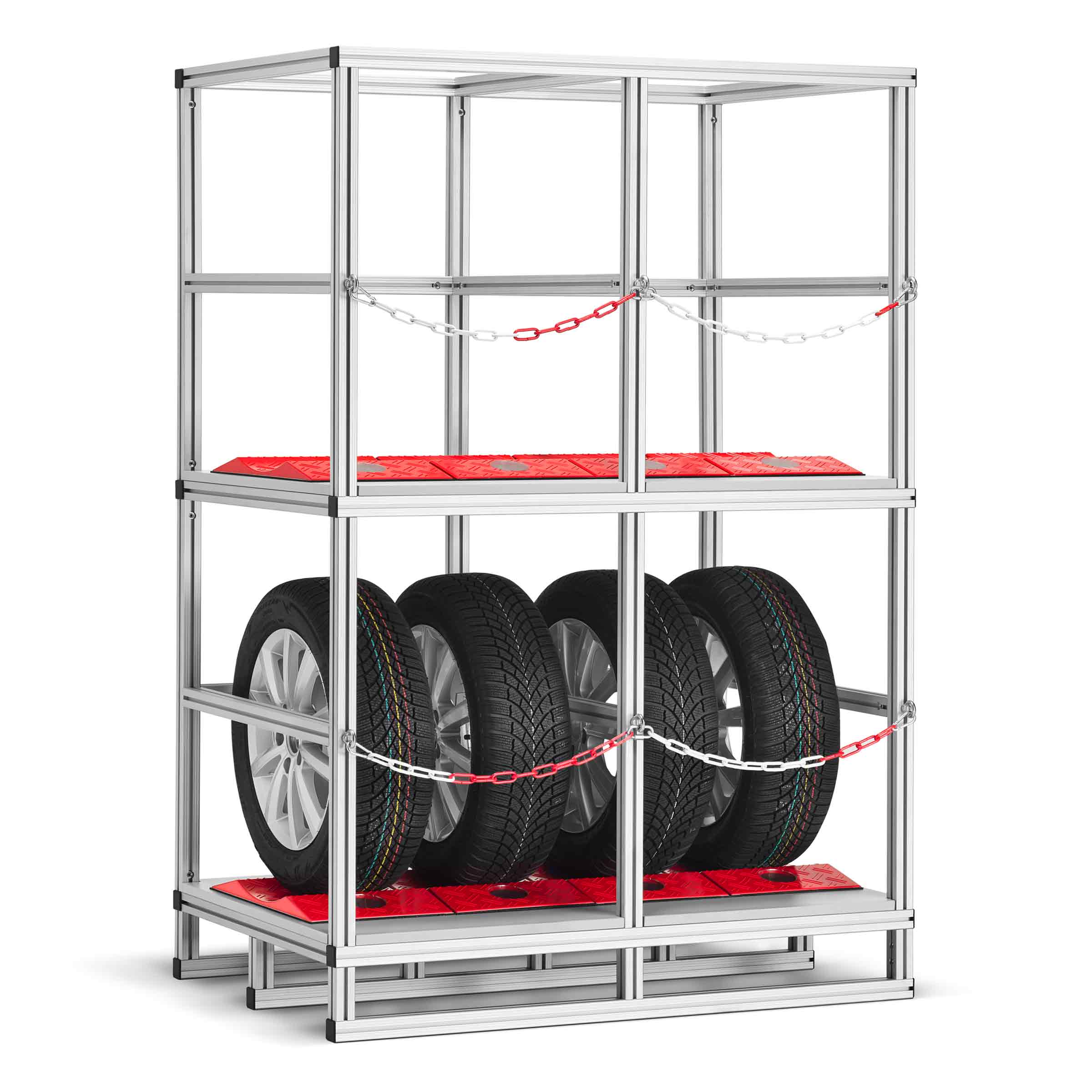

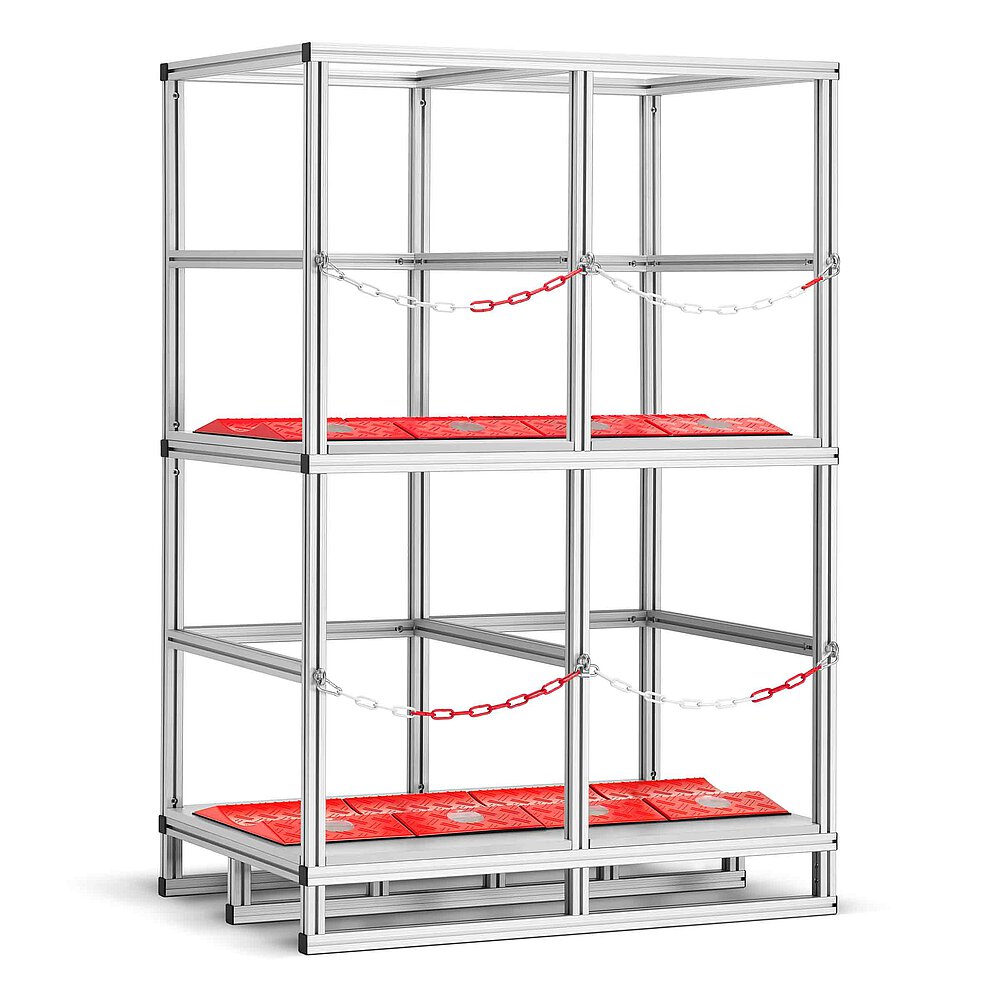

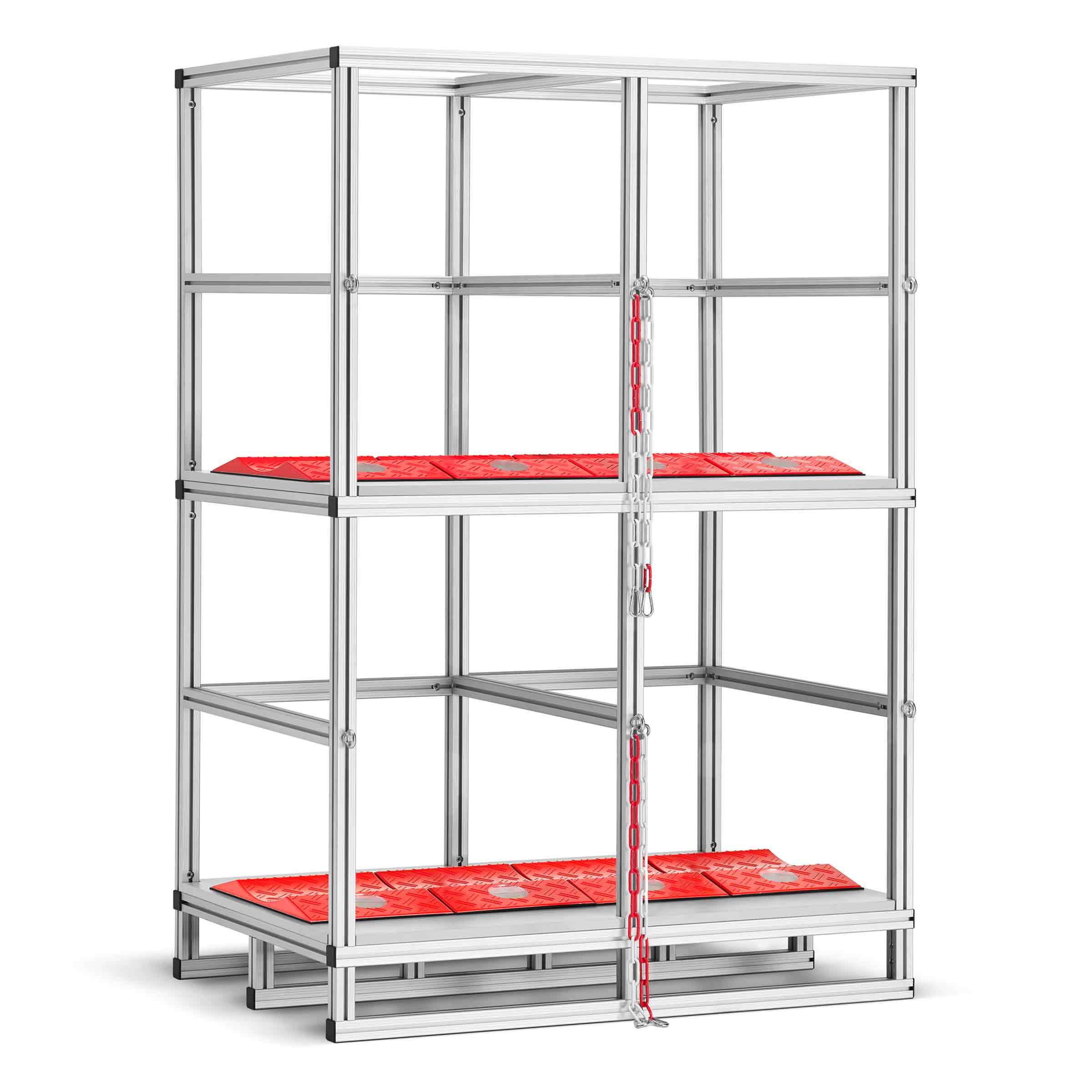

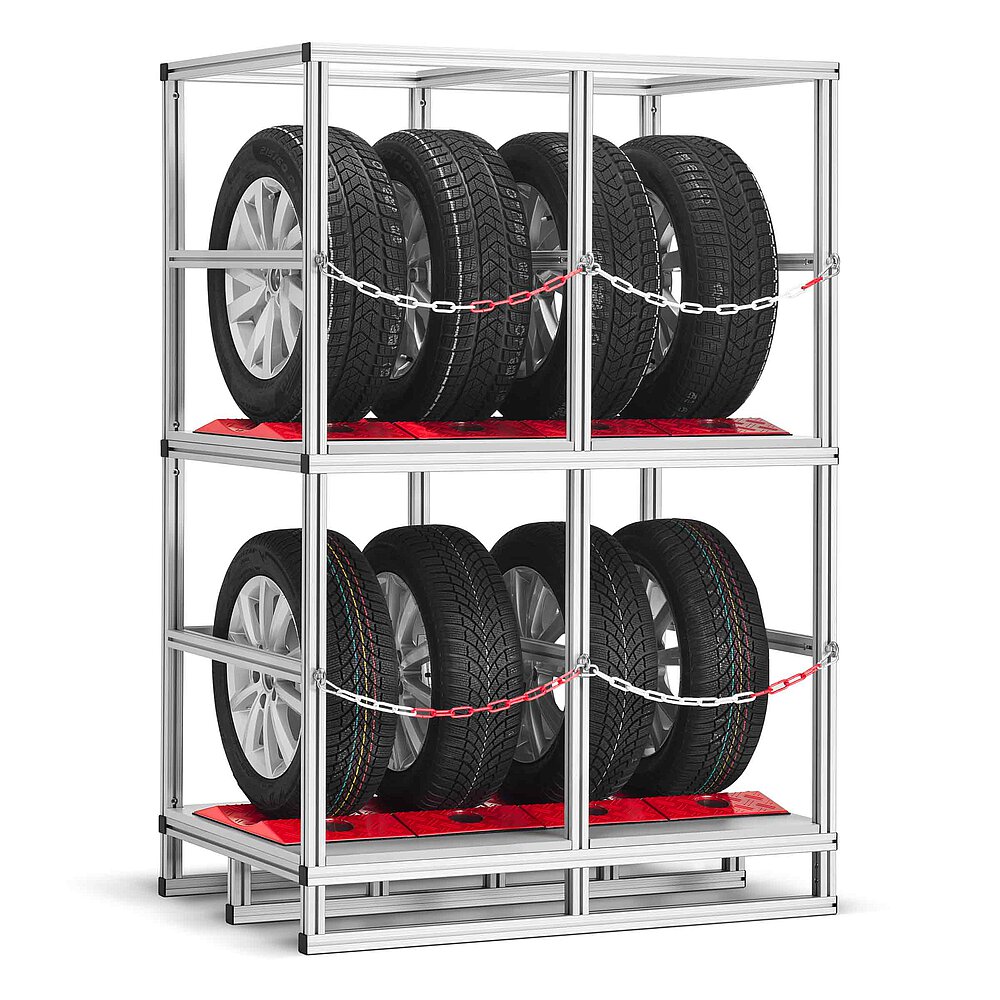

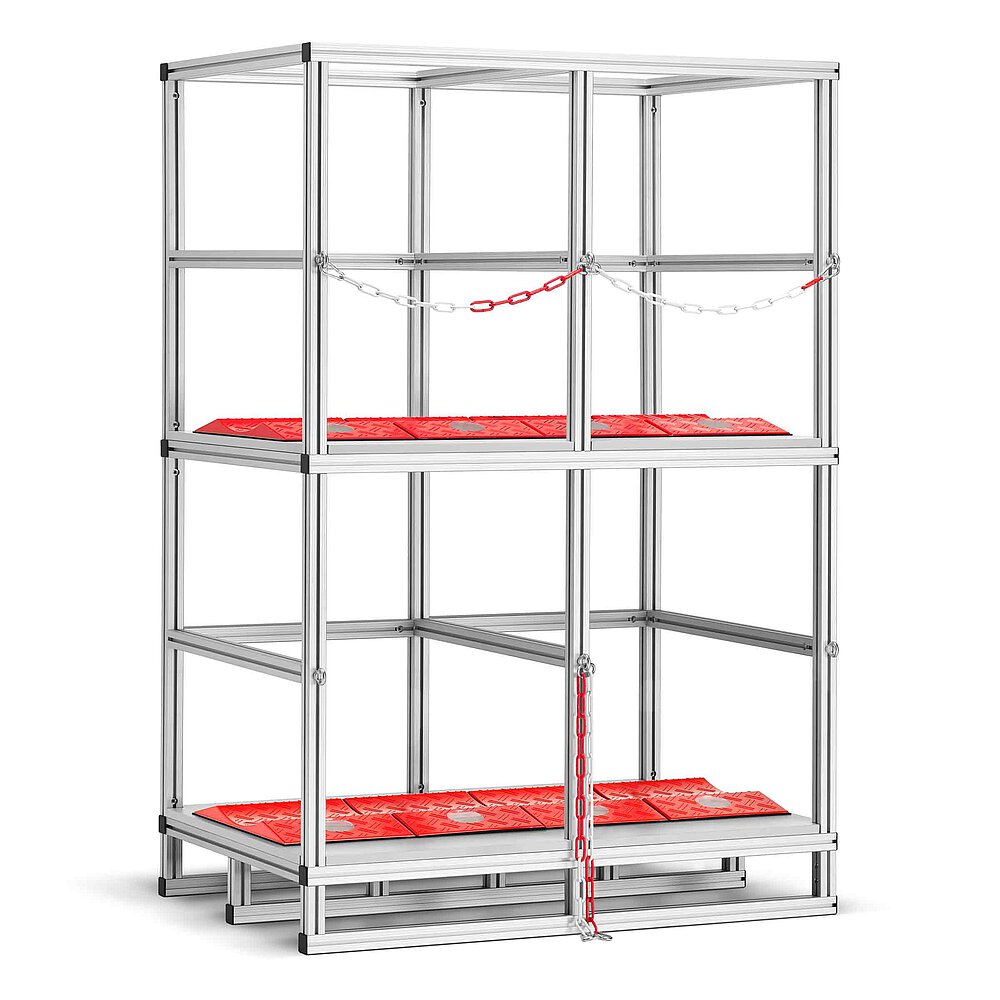

example: tyre rack with original TyreGuard® tyre protection

courtesy Fa. TyreGuard Germany

A large array of accessories allows for applying the aluminium profiles in a multitude of combinations, as shown here exemplary with this customer project of a tyre rack in EURO pallet size with two levels for tyre storage. Special highlight here are the original TyreGuard® tyre protectors.

Even upgrades / extensions / re-design / replacements of existing projects are possible with little strain on time and money.

For further information on the different bar material sizes of the aluminium profiles & related accessories, as well as for further inspiration on the almost endless possibilities with aluminium profiles, please feel free to contact us at Your leisure, or refer to the catalogue.
