absorbtion and non-slip boards

Discover our large selection of elastomer boards of different thicknesses, shorehardnesses and dynamic intrinsic frequencies, which allows for sound vibration-isolated mounting of machines, gear and devices, suited to the specific occasion.

The material mainly applied is nitrile butadiene rubber (NBR).

Elastomer boards of full size as well as custom cuts - even of complex form & geometry - are available as per Your requirements.

absorbtion and non-slip boards
(2 MB, pdf)

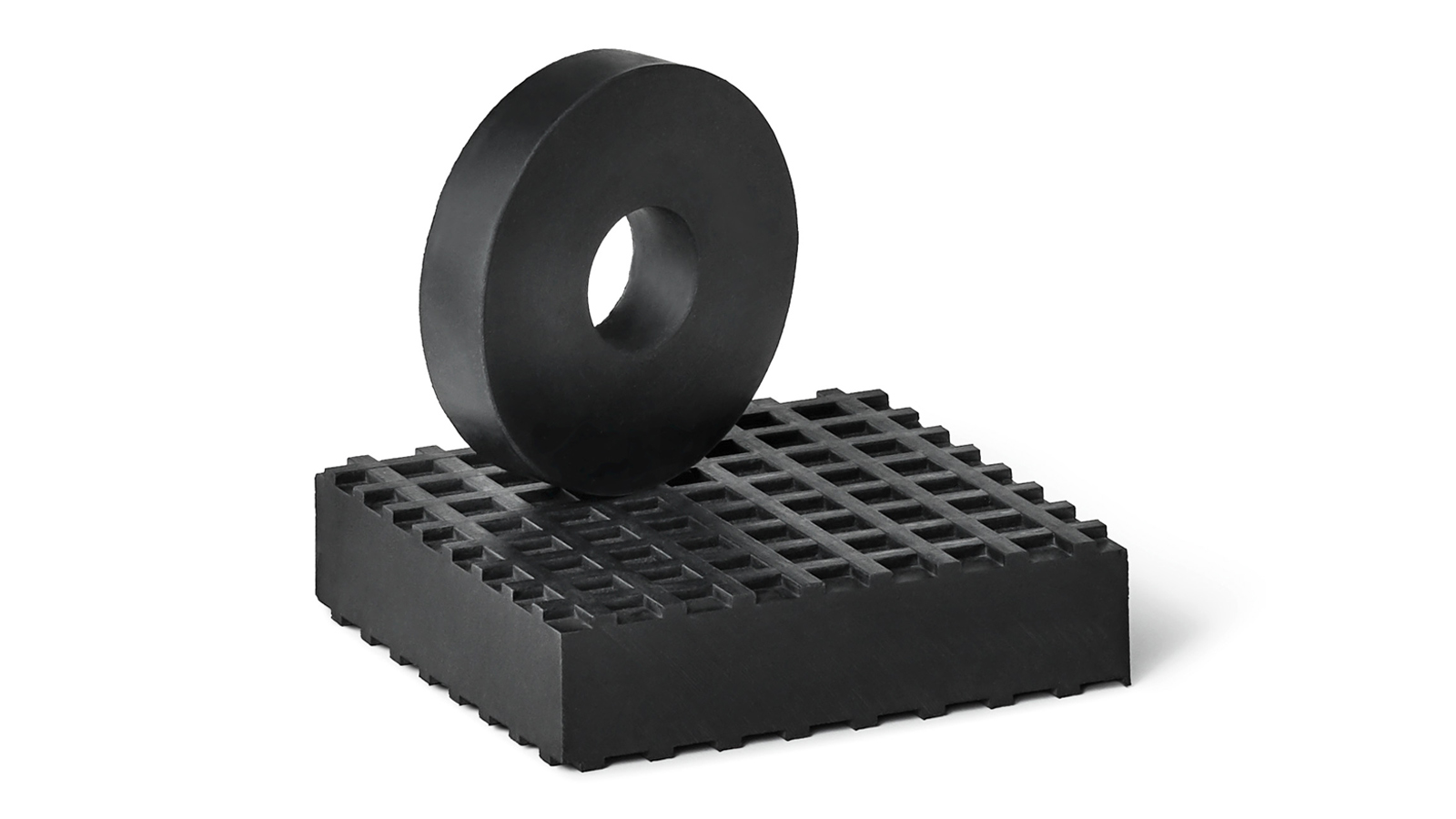

a black, square rubber board made of elastomer NBR with small square indentions on the surface as non-slip protection, on top of which stands an upright black, round rubber disc without surface profiling and a centered hole, isolated on white background

non-slip protection

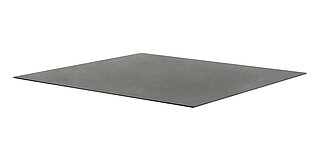

a very thin, black, square board made of nitrile butadiene rubber NBR for non-slip protection underneath machines, with smooth surface, isolated on white background

NBR9002 ( 2 mm, smooth )

machining centres
transfer lines
cnc-machine tools
round-and flat grinding machines
long-bedded machines with low intrinsic rigidity
drilling & milling gear

a thin, black, square board made of nitrile butadiene rubber NBR for non-slip protection underneath machines, with smooth surface, isolated on white background

NBR9005 ( 5 mm, smooth )

machining centres
transfer lines
cnc-machine tools
round-and flat grinding machines
long-bedded machines with low intrinsic rigidity
drilling & milling gear

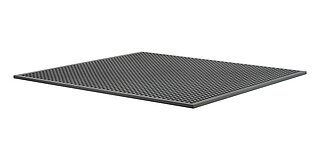

a thin, black, square board made of nitrile butadiene rubber NBR for non-slip protection underneath machines, with structured surface of small square indentions, isolated on white background

NBR9007 ( 7 mm, structured )

machining centres
transfer lines
cnc-machine tools
round-and flat grinding machines
long-bedded machines with low intrinsic rigidity
drilling & milling gear

vibration damping

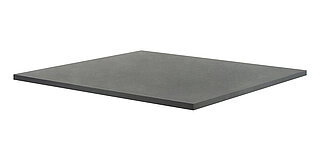

a black, square board of medium thickness and smooth surface, made of nitrile butadiene rubber NBR, for vibration damping underneath machines, isolated on white background

NBR9014 ( 14 mm, smooth )

machining centres
transfer lines
cnc-machine tools
round-and flat grinding machines
long-bedded machines with low intrinsic rigidity
drilling & milling gear

a black, square board made of nitrile rubber NBR, with medium thickness and structured surface of small square indentions, for vibration damping underneath machines, isolated on white background

NBR8516 ( 16 mm, structured )

generic machine tools
textile machines
graphics machines
machines with horizontal thrust

a thick, black, square board made of nitrile rubber NBR, with structured surface of small square indentions, for vibration damping underneath machines, isolated on white background

NBR8525 ( 25 mm, structured )

generic machine tools
textile machines
graphics machines
machines with horizontal thrust

higher damping effect than NBR8516

vibration isolation

a black, square board made of nitrile rubber NBR, with medium thickness and structured surface of small square indentions, for vibration isolation underneath machines, isolated on white background

NBR7516 ( 16 mm, structured )

highly dynamic machines
presses
shears
punches
plastic-injection molding machines
compressors
pumps

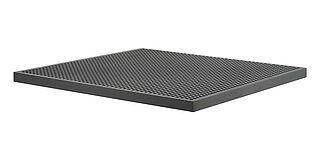

a thick, black, square board made of nitrile rubber NBR, with structured surface of small square indentions, for vibration isolation underneath machines, isolated on white background

NBR7525 ( 25 mm, structured )

highly dynamic machines
presses
shears
punches
plastic-injection molding machines
compressors
pumps

higher isolation effect than NBR7516

vibration isolation / passive isolation

a black, square board made of nitrile rubber NBR, with medium thickness and smooth surface, for low-frequency vibration isolation and passive isolation underneath machines, isolated on white background

NBR5514 ( 14 mm, smooth )

electronic control gear
switch cabinets
dosage equipment
metrology devices
scales
laboratory equipment
projectors and drives

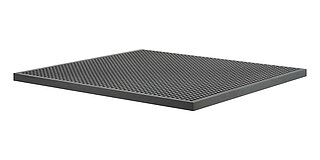

a thick, black, square board made of nitrile rubber NBR, with structured surface of small square indentions, for low-frequency vibration isolation and passive isolation underneath machines, isolated on white background

NBR5518 ( 18 mm, structured )

electronic control gear
switch cabinets
dosage equipment
metrology devices
scales
laboratory equipment
projectors and drives

higher isolation effect than NBR5514

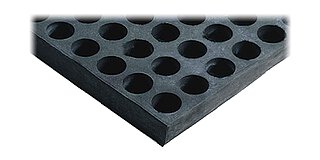

detail of a thick, black, square board made of nitrile rubber NBR, with structured surface of cylindrical indentions, for low-frequency vibration isolation and passive isolation underneath machines, isolated on white background

ISOBOARD-20 ( 20 mm, hollow chamber structure )

for single or multiple layer settings
effecting low intrinsic frequencies between 7 and 13 Hz

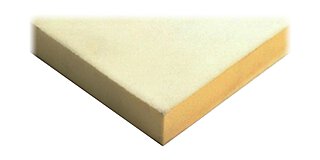

detail of a thick, cream-colored, square board made of cellular polyurethane, with smooth surface, for very low-frequency vibration isolation and passive isolation underneath machines, isolated on white background

Cellasto® MH24-35 ( 30 mm, cellular )

effecting low intrinsic frequencies from 5,3 to 10 Hz with devices having a small weight of its own
facility installations
metrology gear
isolation of structure-borne noise
