rubber-metal bearings

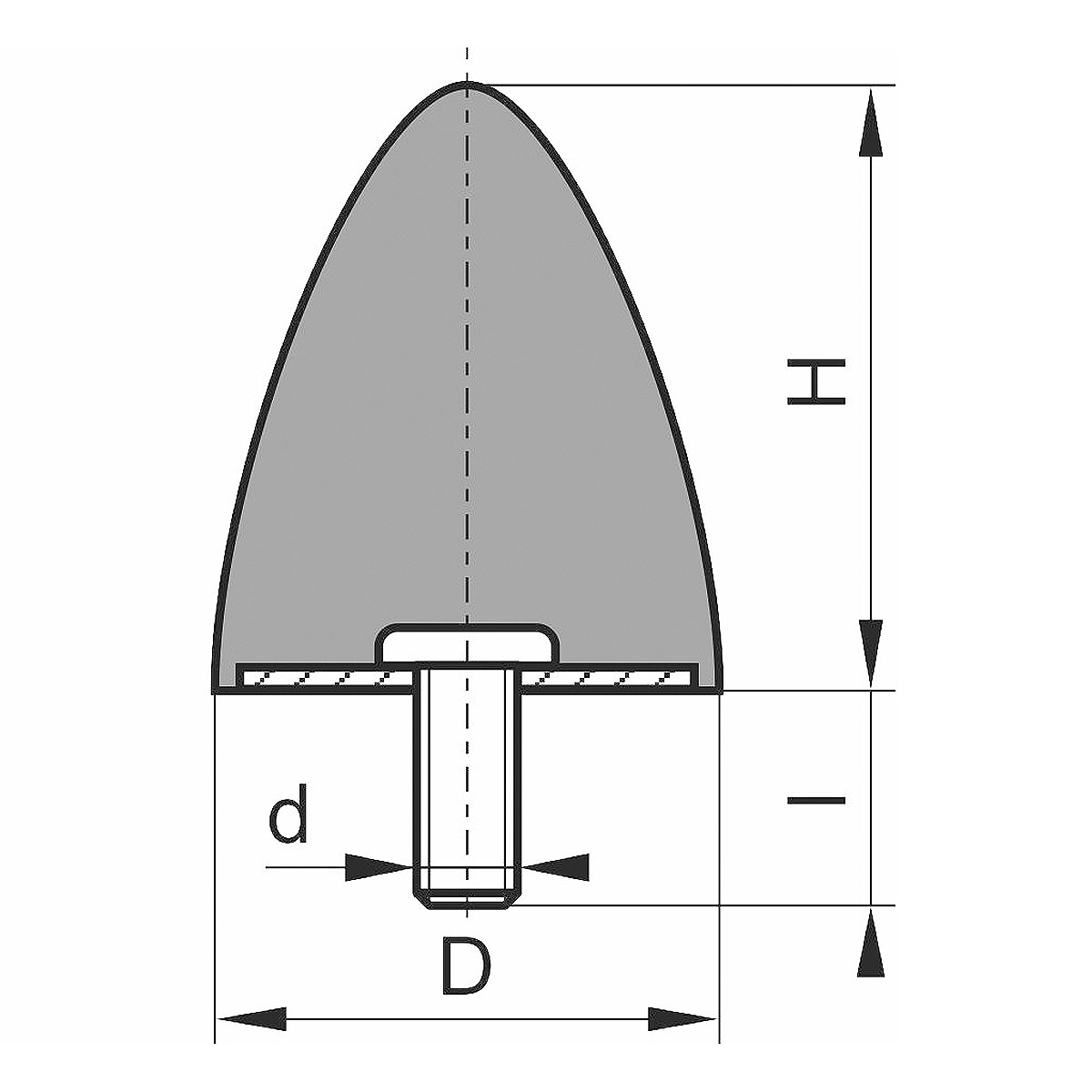

type DP

generic data on storage time and duration of operation of elastomers and rubber-metal components

the prescribed storage time of our products is in accordance to DIN 95360:

as maximum storage time, we adhere to the guidelines of ISO 2230:

the duration of operation - in accordance to DIN 95360 - is specified as below:

In general, if applied within the allowed load range and owing to the natural ageing process of rubber, a recommended duration of operation of max. 6 years must be assumed. Latest after this period, an inspection and assessment of a representative number of components should be executed.

Rubber-metal components and form-based rubber parts are maintenance-free during the operational period.

Replacement is due, if:
- by means of setting and creeping towards the direction of pressure only 70% of the initial rubber thickness is achieved
- by means of the influence of weathering several clearly visible cracks per cm² rubber surface have formed
- the items have swelled significantly under exposure of non-permissible oil wetting
- a loss of the rubber-metal adhesion has occured ( e.g. due to corrosion of the metal components )
- mechanical damage can be observed, which can lead to a further destruction of the product due to the notch sensitivity of the caoutchouc

The above information is provided in all conscience and to the best of knowledge, however, the former recommendation can only serve as a theoretical guideline, and does not absolve the user from the neccessity of own assessments and test procedures. bwz® Schwingungstechnik GmbH expressedly excludes any and all liability for damages or disadvantages whatsoever, even in regard to third party protective rights.
