levelling elements in polyamide

K 8 - Ø 80 mm

levelling elements in polyamide series K
(1 MB, pdf)

hinged feet for levelling
with ample pendulum action ( ca. 15° )
materials
screw and pendulum balljoint in stainless steel
base plate in reinforced polyamide
elastomer NBR
optional
washers and nuts
readily commissioned sets as per customer requirement

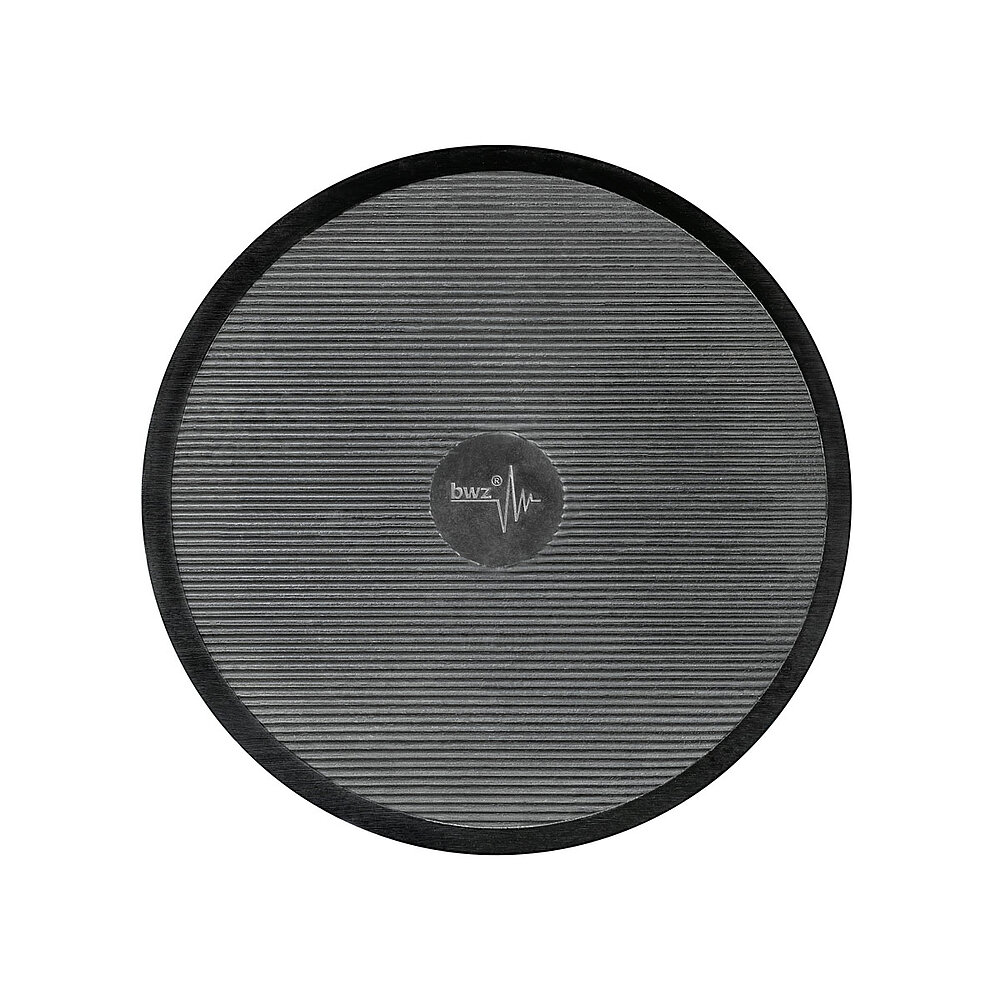

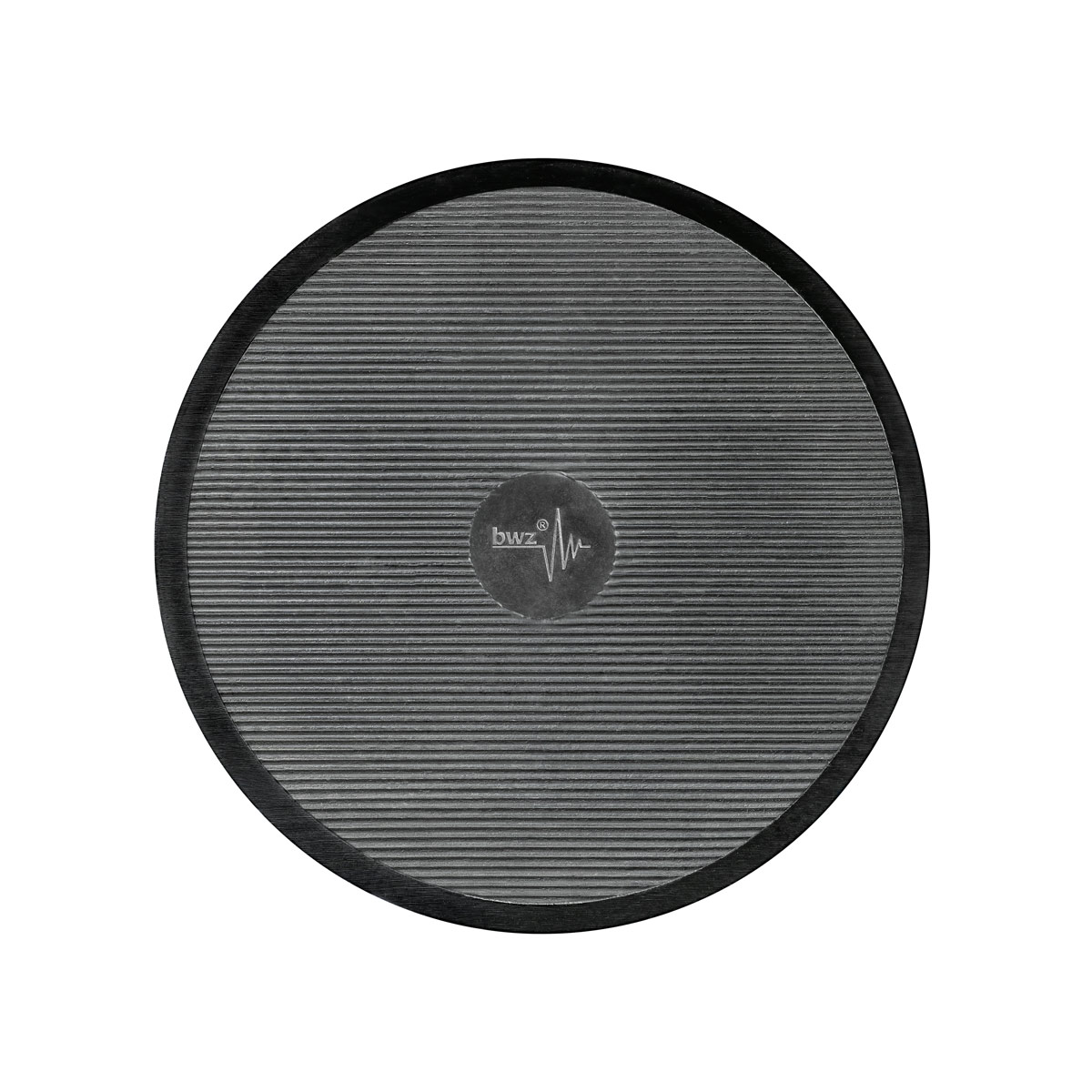

version stainless steel	article number	Ø(mm)	M	SW(mm)	H(mm)	L(mm)	H₁(mm)	*shorehardness(+/- 5)	load max.(daN)
K8/M12x50/NBR7011	9003 0041	80	M12	24	98	50	48	70	650
K8/M12x100/NBR7011	9003 0005	80	M12	24	148	100	48	70	650
K8/M12x150/NBR7011	9003 0032	80	M12	24	198	150	48	70	650
K8/M12x200/NBR7011	9003 0034	80	M12	24	248	200	48	70	650

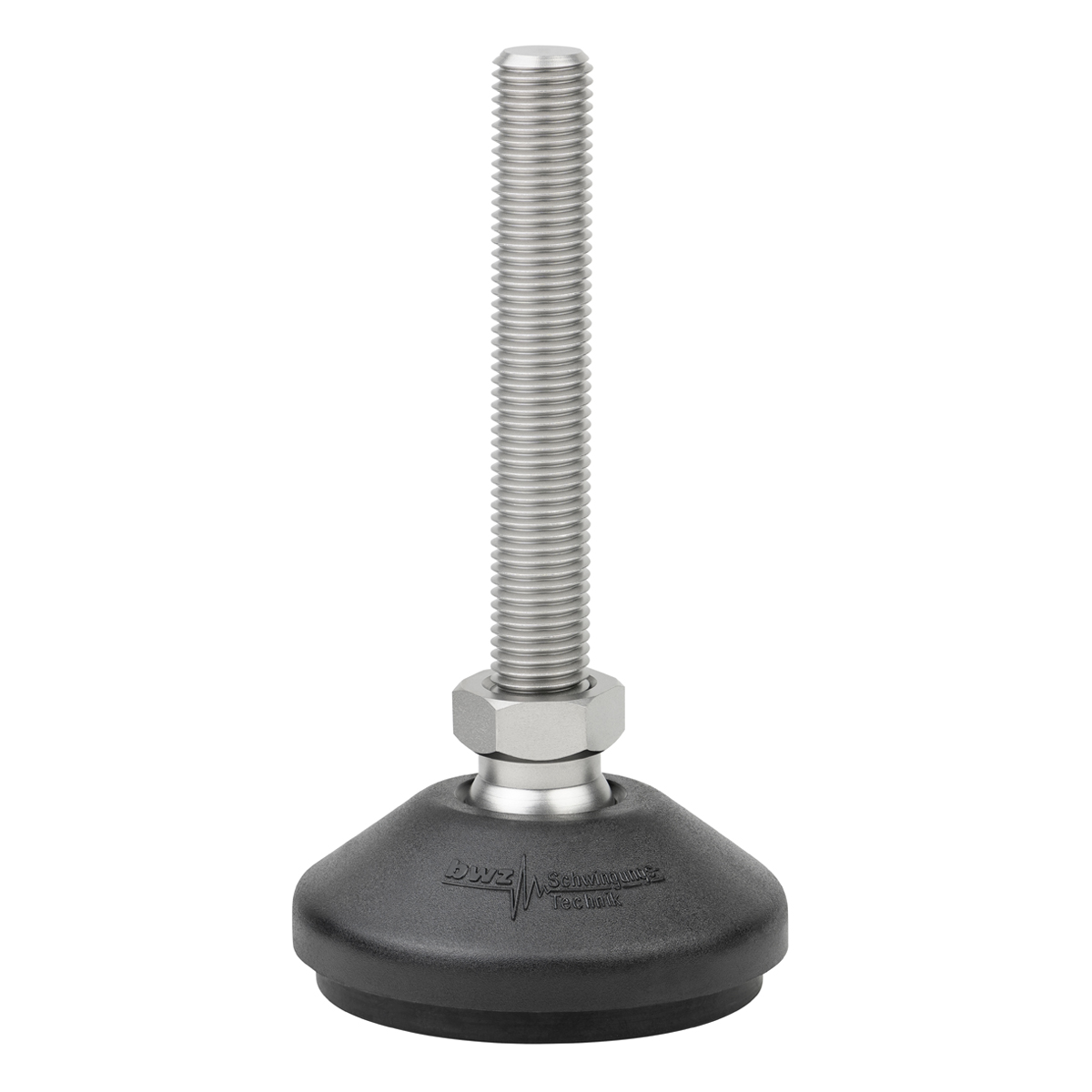

K8/M16x100/NBR7011	9003 0006	80	M16	24	149	100	49	70	650
K8/M16x150/NBR7011	9003 0031	80	M16	24	199	150	49	70	650
K8/M16x200/NBR7011	9003 0042	80	M16	24	249	200	49	70	650
K8/M16x250/NBR7011	9003 0043	80	M16	24	299	250	49	70	650

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

*further shorehardnesses and elastomer thicknesses on request

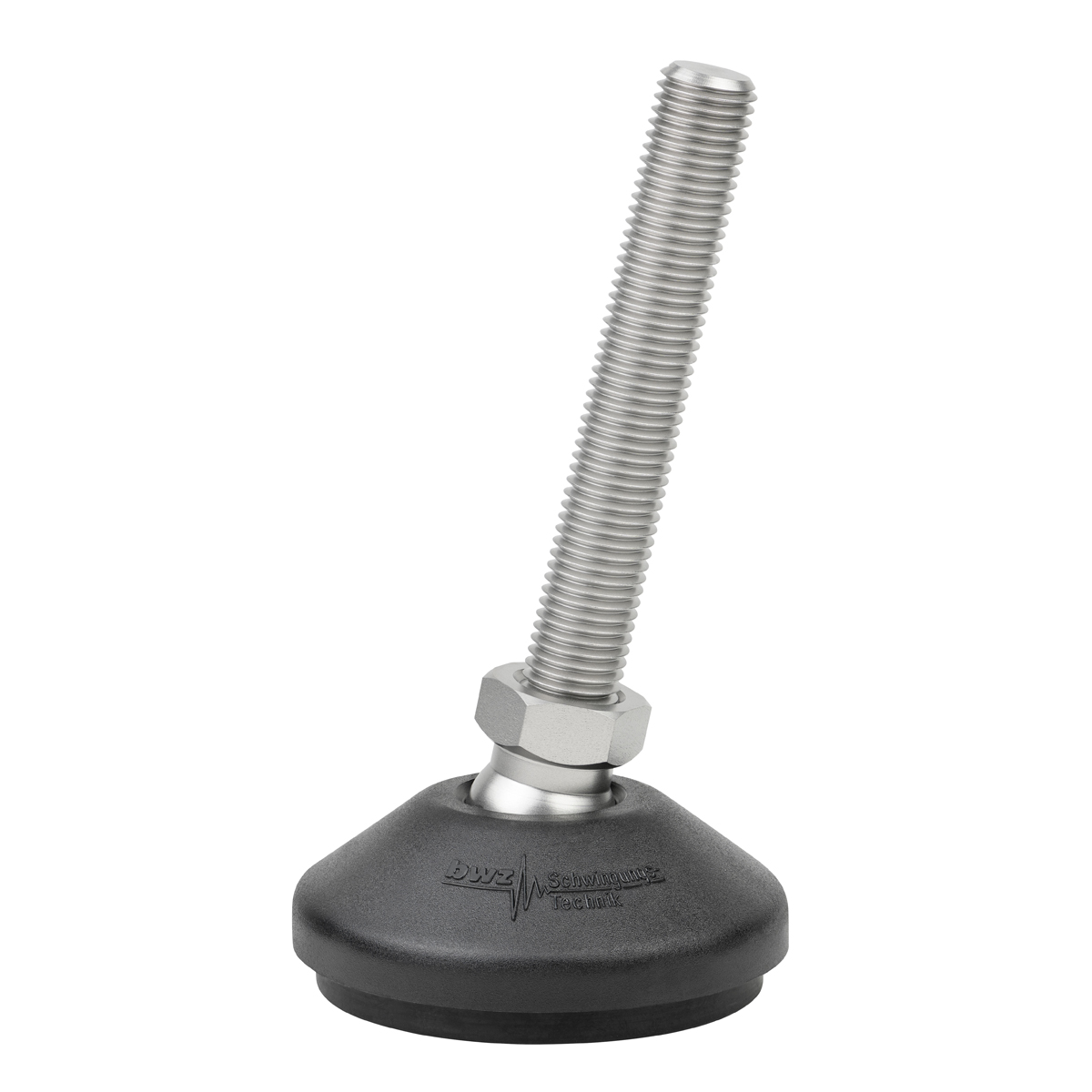

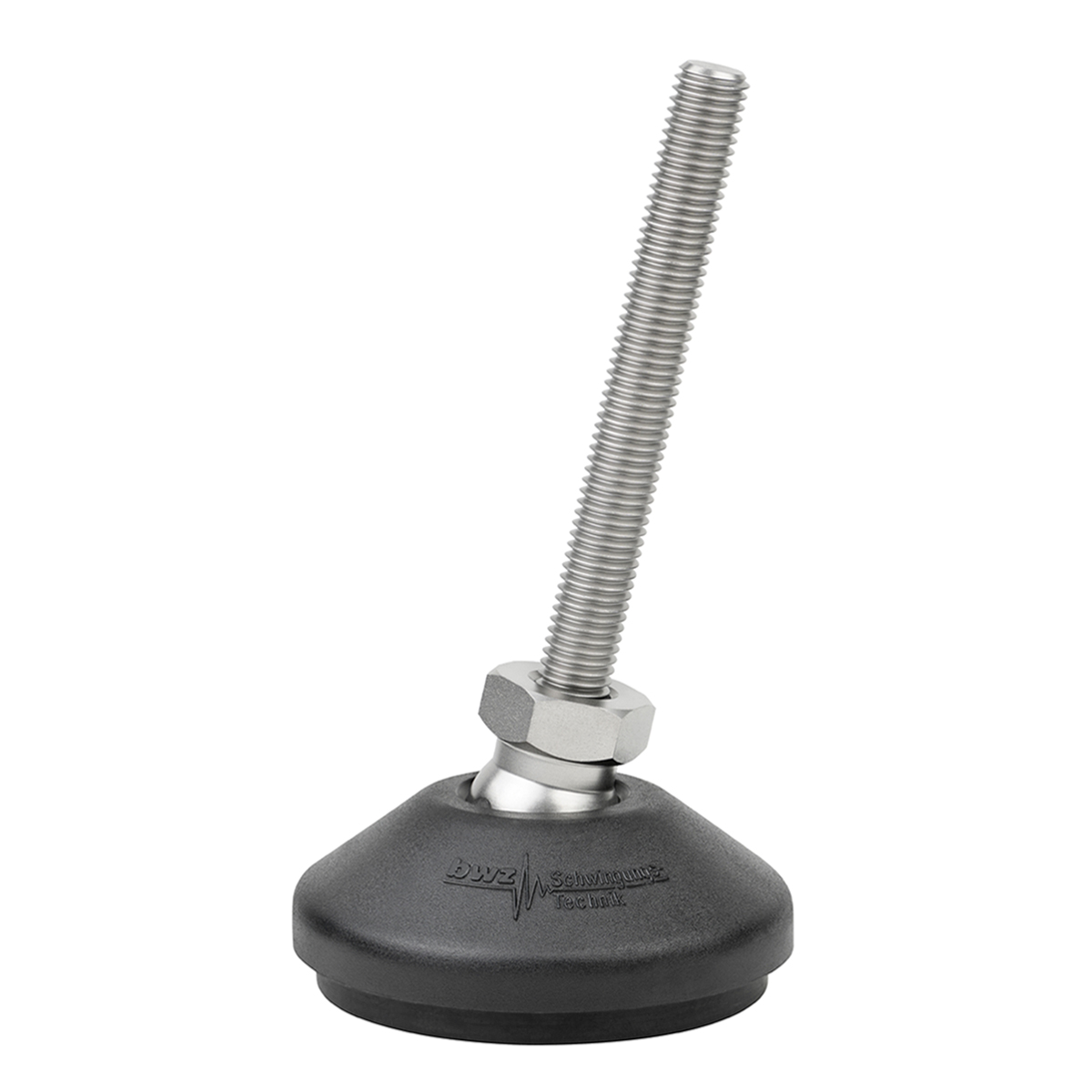

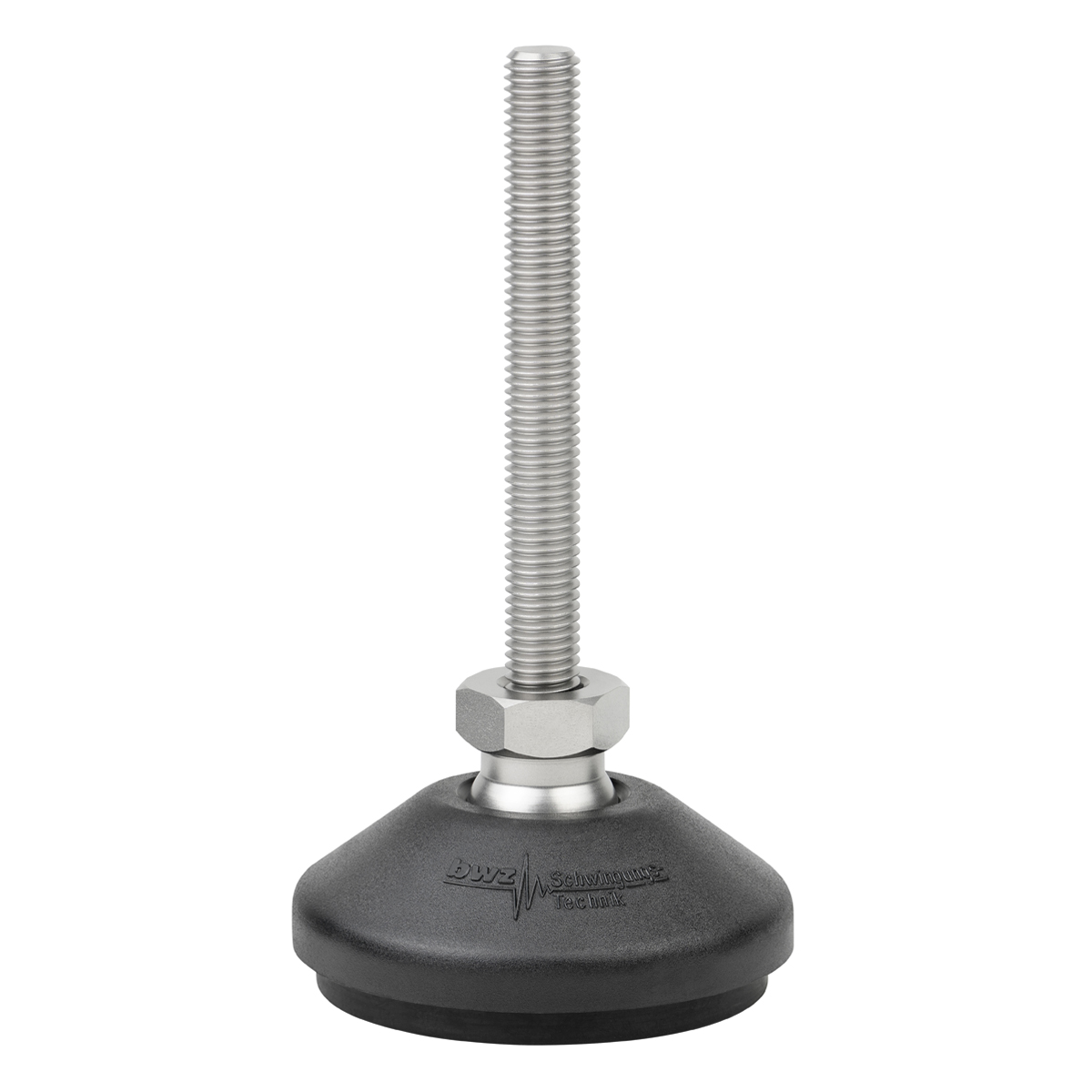

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view

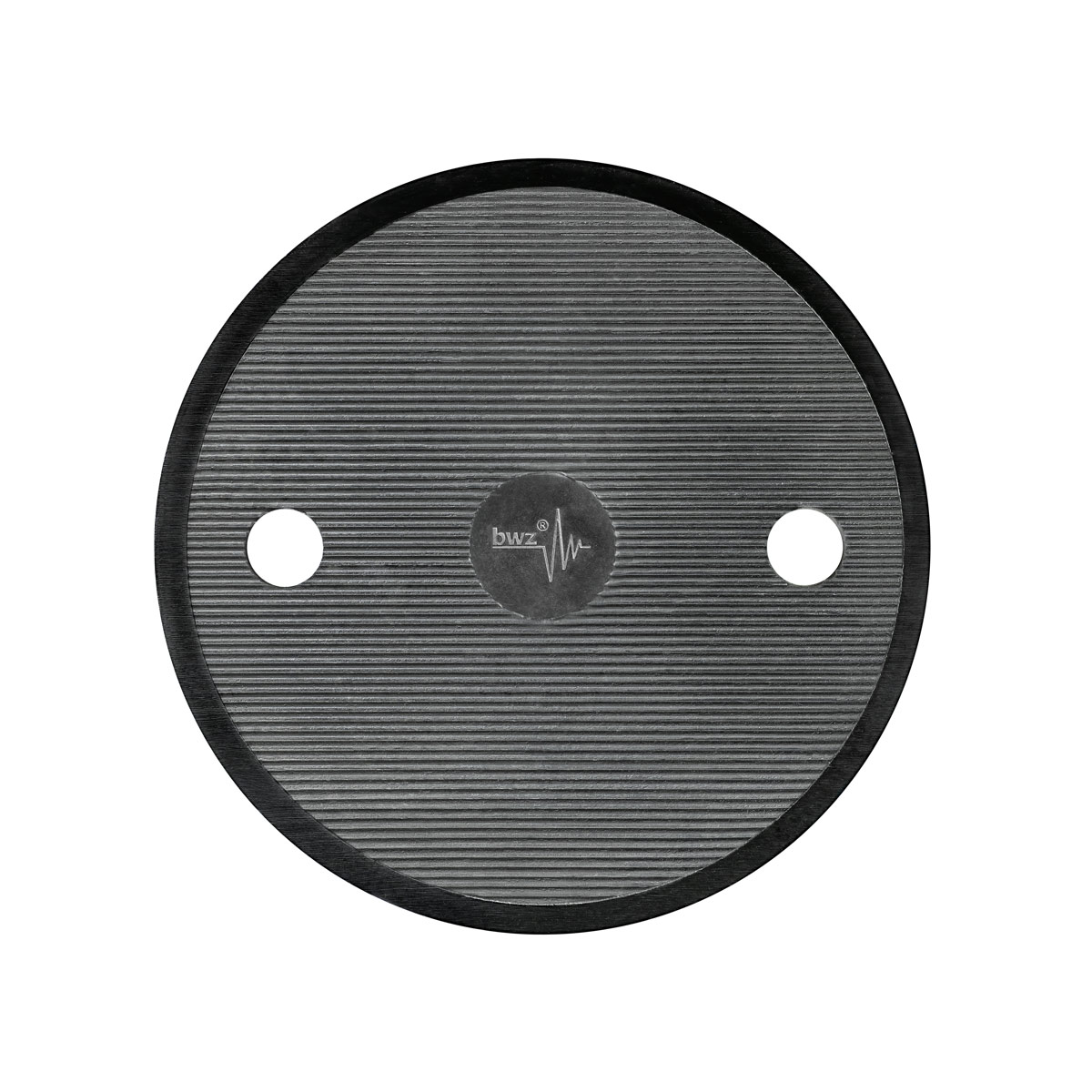

version stainless steel	article number	Ø(mm)	M	SW(mm)	H(mm)	L(mm)	H₁(mm)	floor-anchoring holes(Ø mm)	*shorehardness(+/- 5)	load max.(daN)
K8/B/M12x50/NBR7011	9003 0044	80	M12	24	98	50	48	9	70	650
K8/B/M12x100/NBR7011	9003 0011	80	M12	24	148	100	48	9	70	650
K8/B/M12x150/NBR7011	9003 0045	80	M12	24	198	150	48	9	70	650
K8/B/M12x200/NBR7011	9003 0046	80	M12	24	248	200	48	9	70	650

K8/B/M16x100/NBR7011	9003 0012	80	M16	24	149	100	49	9	70	650
K8/B/M16x150/NBR7011	9003 0047	80	M16	24	199	150	49	9	70	650
K8/B/M16x200/NBR7011	9003 0048	80	M16	24	249	200	49	9	70	650
K8/B/M16x250/NBR7011	9003 0049	80	M16	24	299	250	49	9	70	650

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

*further shorehardnesses and elastomer thicknesses on request

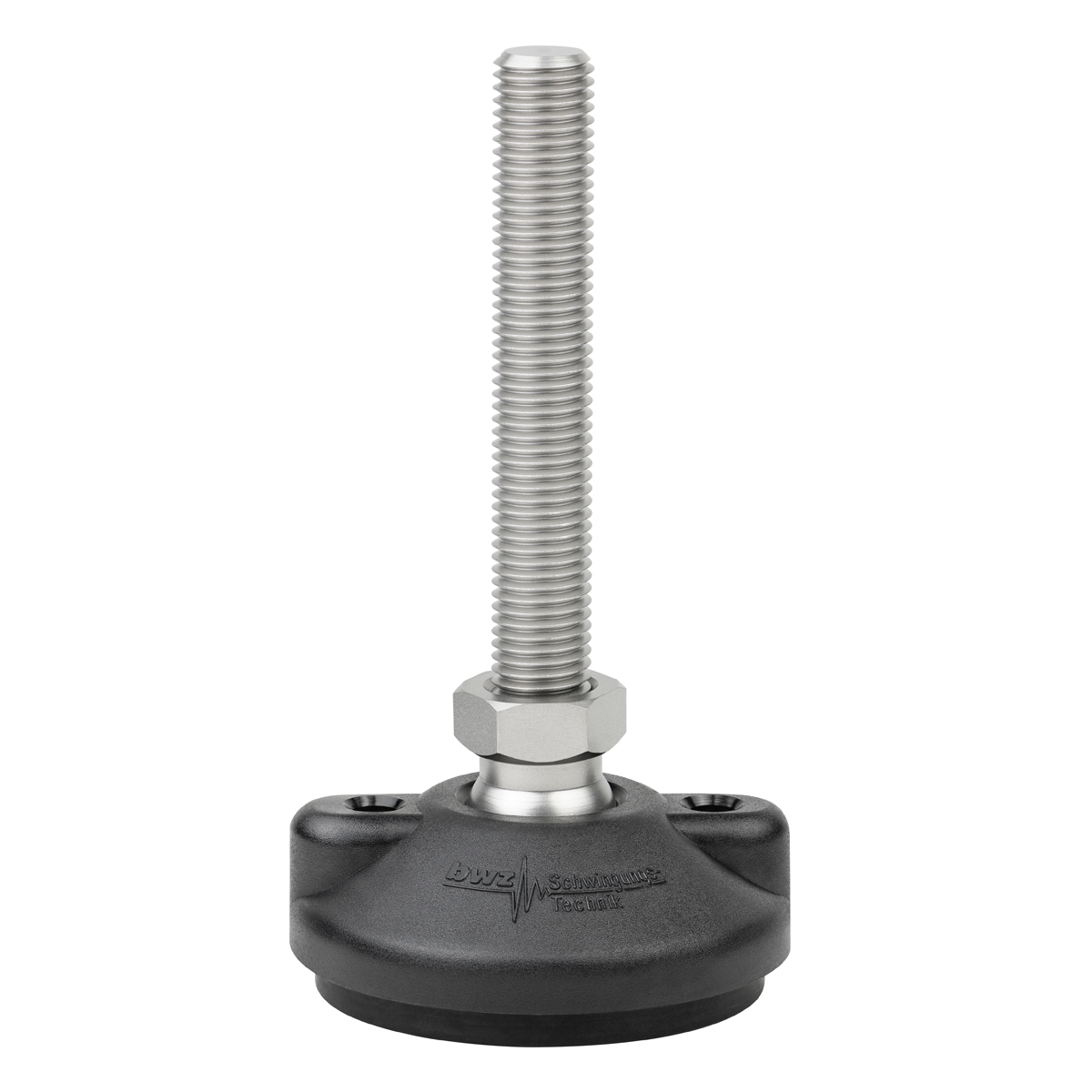

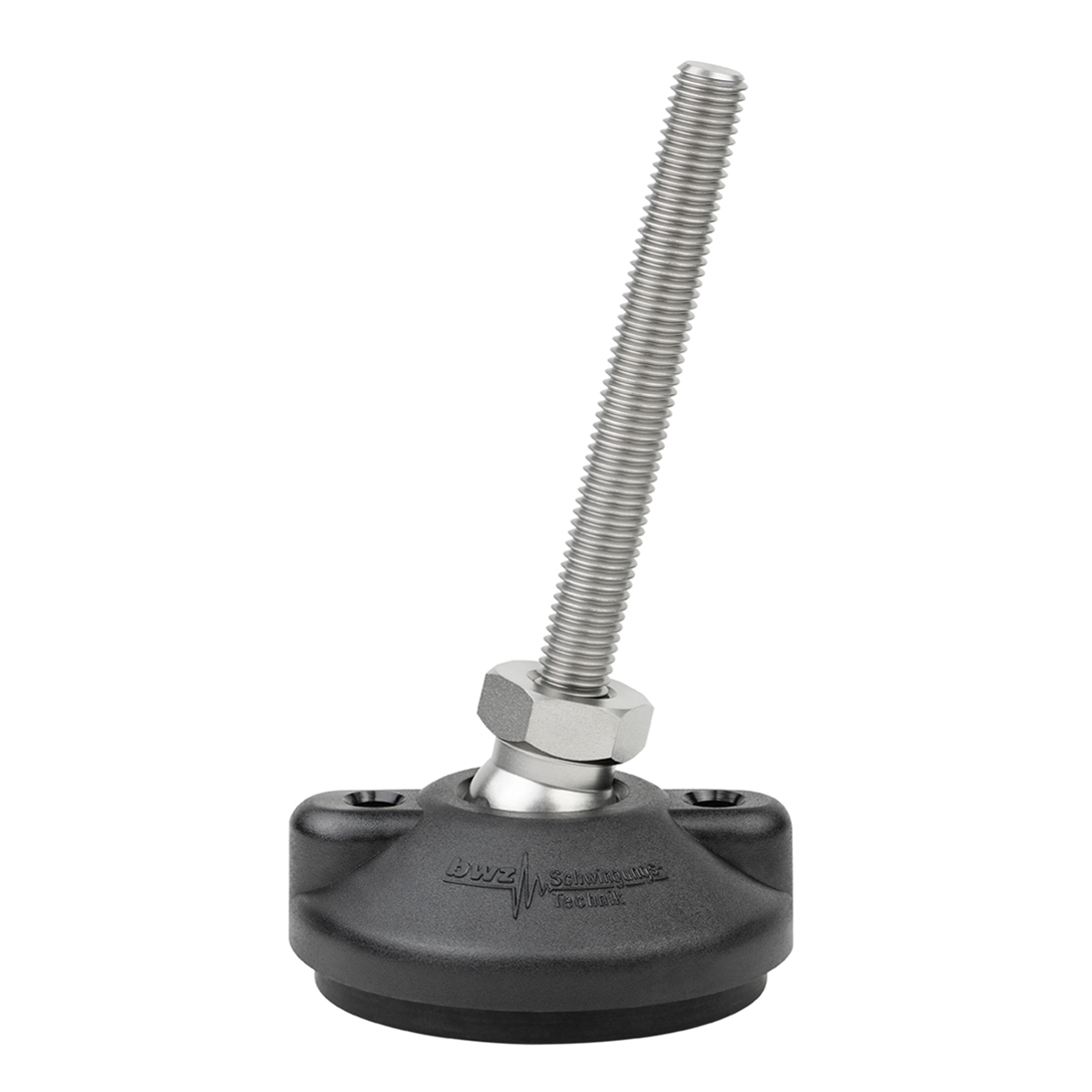

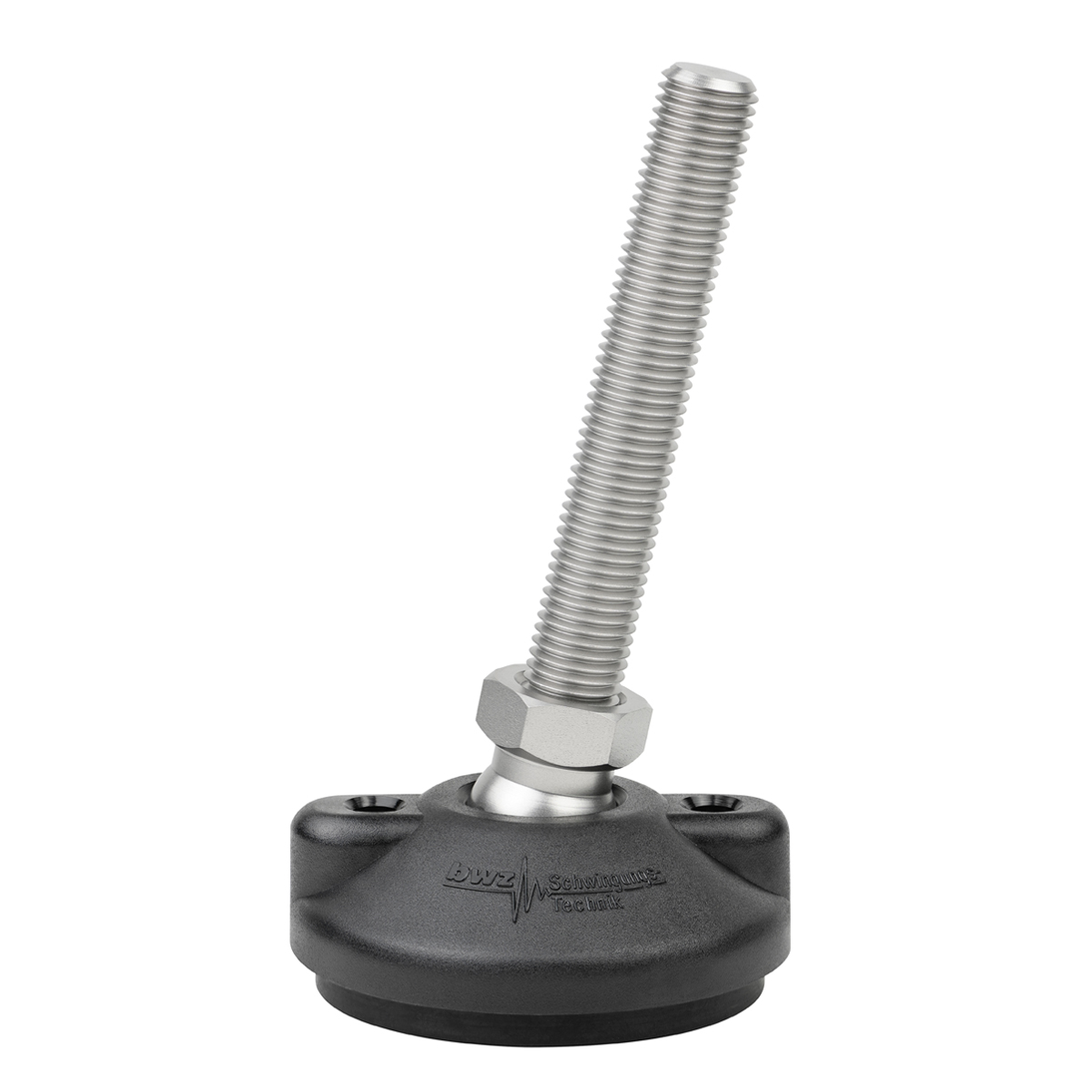

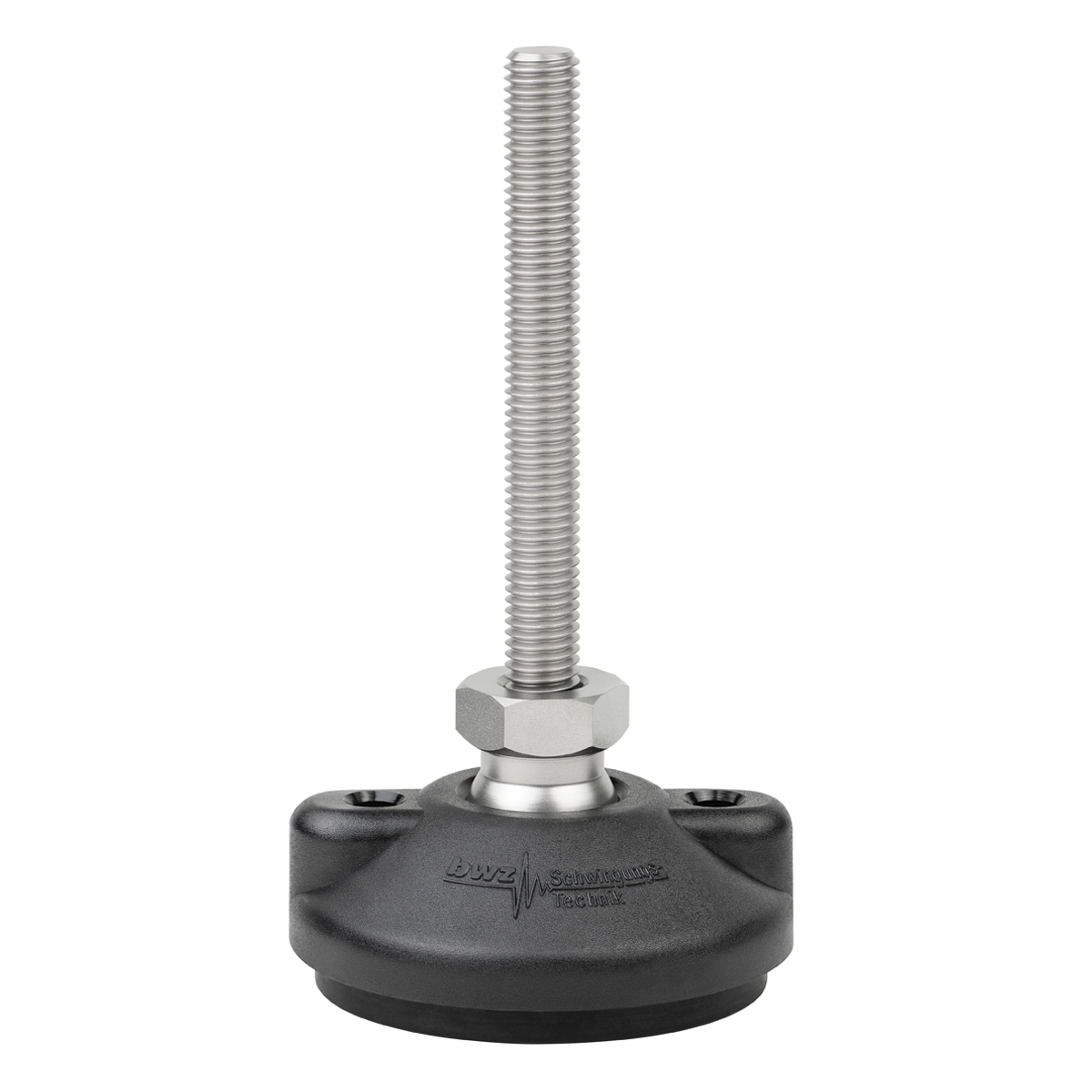

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom, two cusped elevations with boreholes for ground-fastening at the sides, and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view

thread	standard thread lengths L(mm)
M 12	50	100			150	200	*250	*300
M 16	*50	100			150	200	250	*300

measurement L of the levelling screw relates to the net thread length

optional: special- and intermediate thread lengths

* on request

schematic drawing of a round, upwards conically tapering machine foot made of composite material, with elastomer NBR for non-slip protection at the bottom and stainless steel thread in a pendulum-action ( ca. 15 degrees ) hexagonal spanner flat ball joint, in the side view

further element sizes

a round, upwards conically tapering machine foot made of black composite material with 50 mm diameter at the base, black elastomer NBR for non-slip protection at the bottom and vertically upward facing stainless steel thread M10x100 mm in a pendulum-action hexagonal spanner flat ball joint, isolated on white background

K 5

Ø 50 mm

a round, upwards conically tapering machine foot made of black composite material with 100 mm diameter at the base, black elastomer NBR for non-slip protection at the bottom and vertically upward facing stainless steel thread M16x100 mm in a pendulum-action hexagonal spanner flat ball joint, isolated on white background

K 10

Ø 100 mm

a round, upwards conically tapering machine foot made of black composite material with 120 mm diameter at the base, black elastomer NBR for non-slip protection at the bottom, two cusped elevations with boreholes for ground-fastening at the sides, and slightly to the right tilted stainless steel thread M20x100 mm in a pendulum-action hexagonal spanner flat ball joint, isolated on white background

K 12

Ø 120 mm
