NMS-REMAINDER ITEMS

FROM DISCONTINUED SERIES AT BARGAIN PRICE

WHILE SUPPLIES LAST

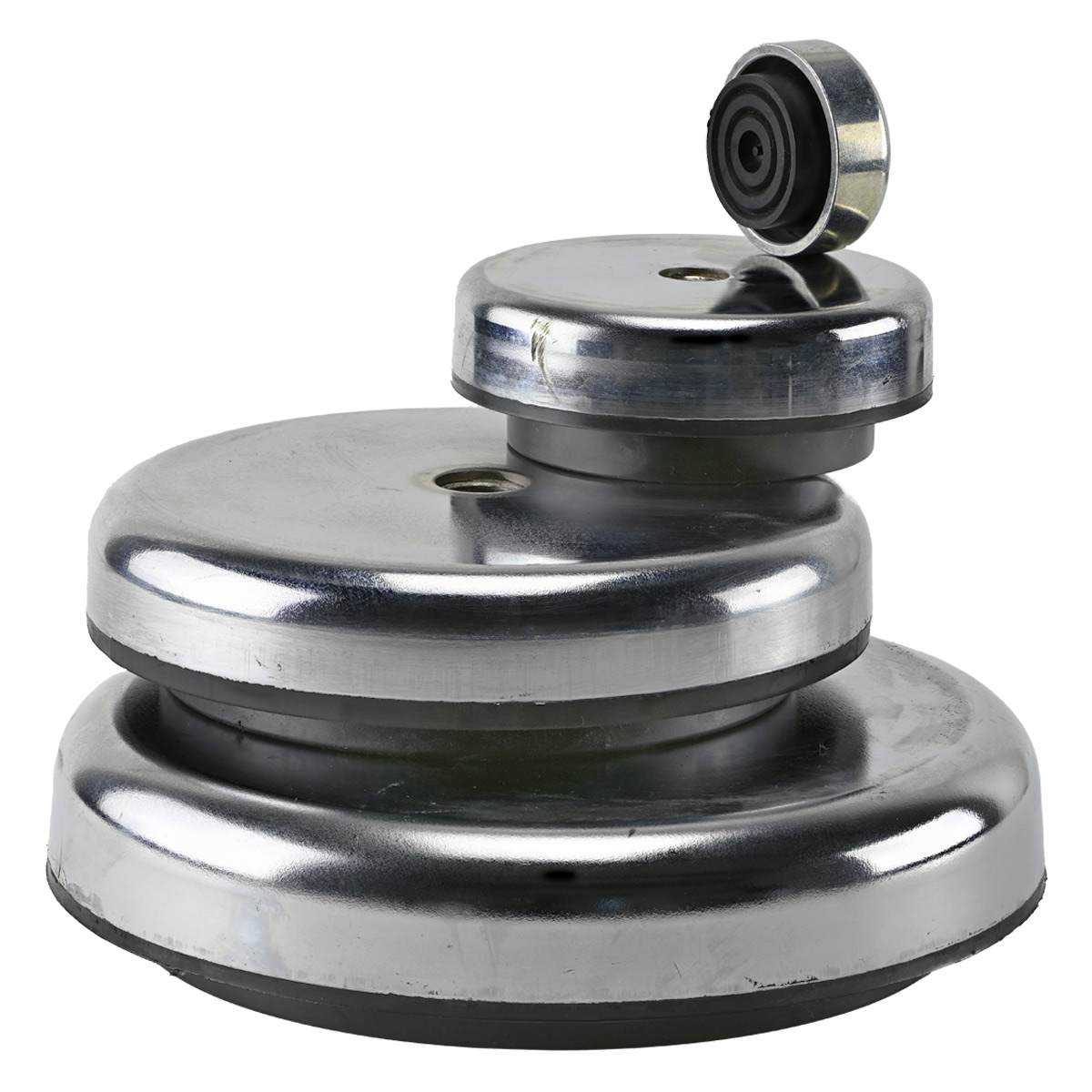

  • a square group picture of four round vibration dampers of different diameters, stacked onto each other, with matte shining zinc-galvanized metal surface, black vulcanized elastomer at the bottom and central inner thread for levelling screws, isolated on white background

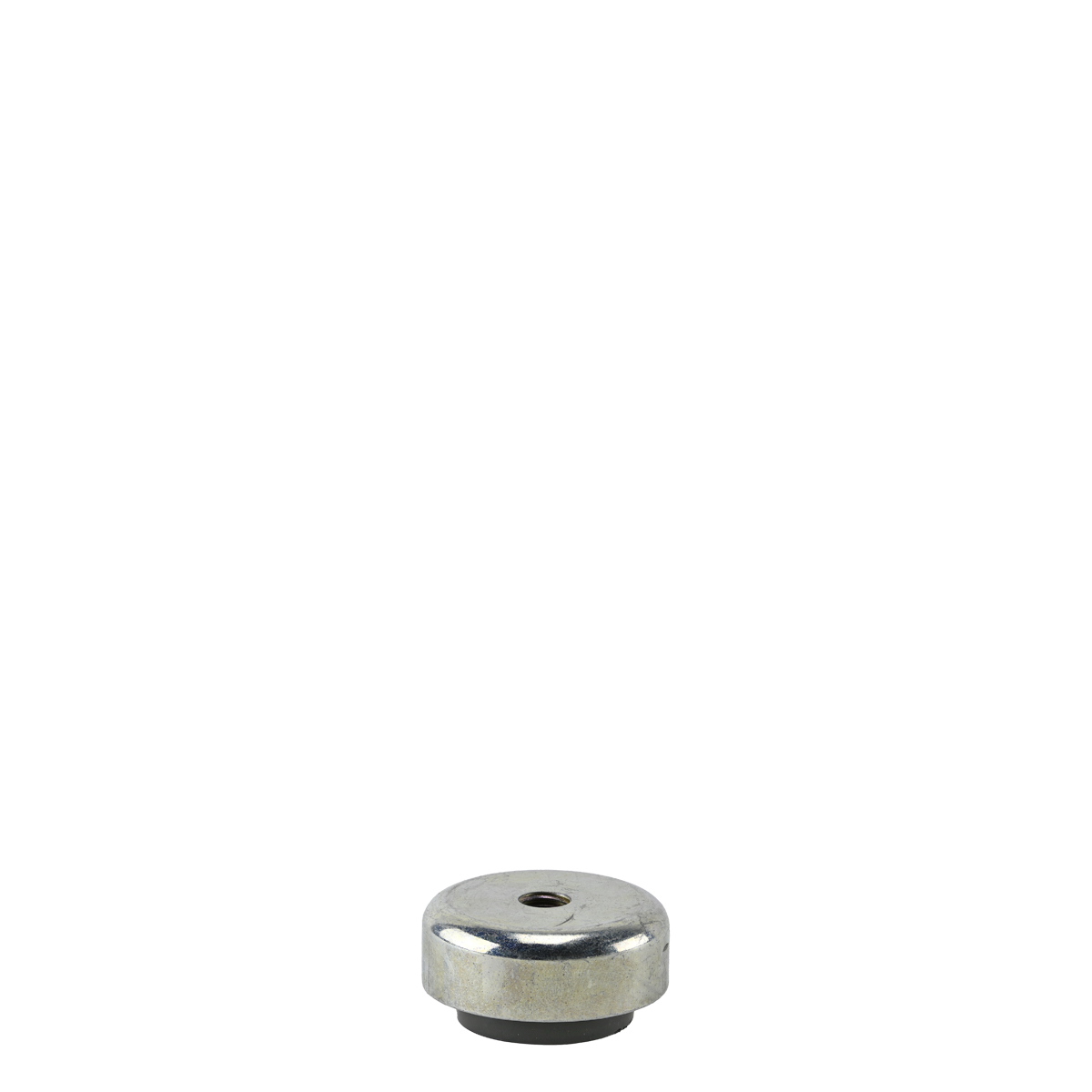

  • a round vibration damper with 45 mm diameter, matte-shiny zinc-galvanized metal surface, black vulcanized elastomer at the bottom and central inner thread for levelling screw M10, isolated on white background

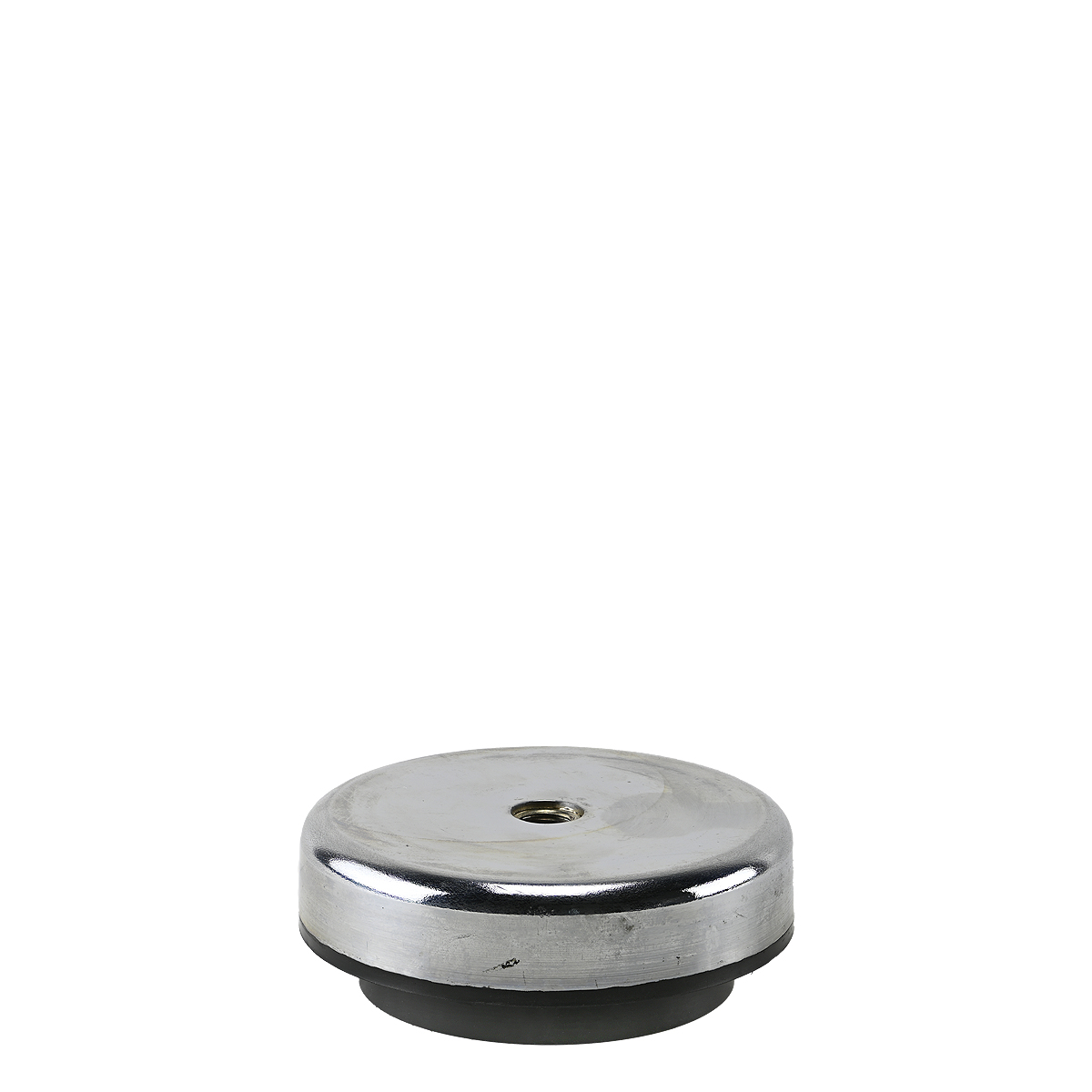

  • a round vibration damper with 100 mm diameter, matte-shiny zinc-galvanized metal surface, black vulcanized elastomer at the bottom and central inner thread for levelling screw M12, isolated on white background

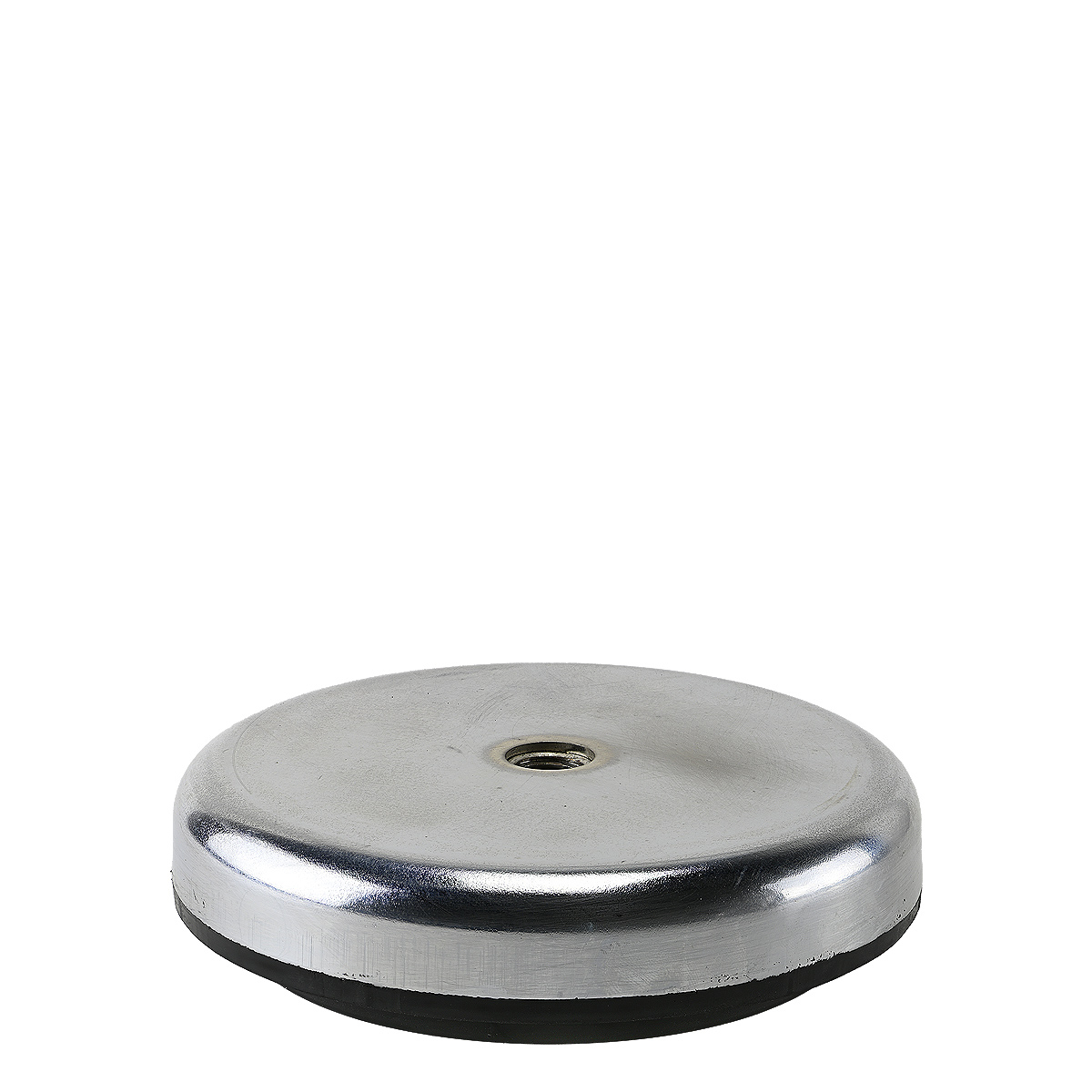

  • a round vibration damper with 160 mm diameter, matte-shiny zinc-galvanized metal surface, black vulcanized elastomer at the bottom and central inner thread for levelling screw M16, isolated on white background

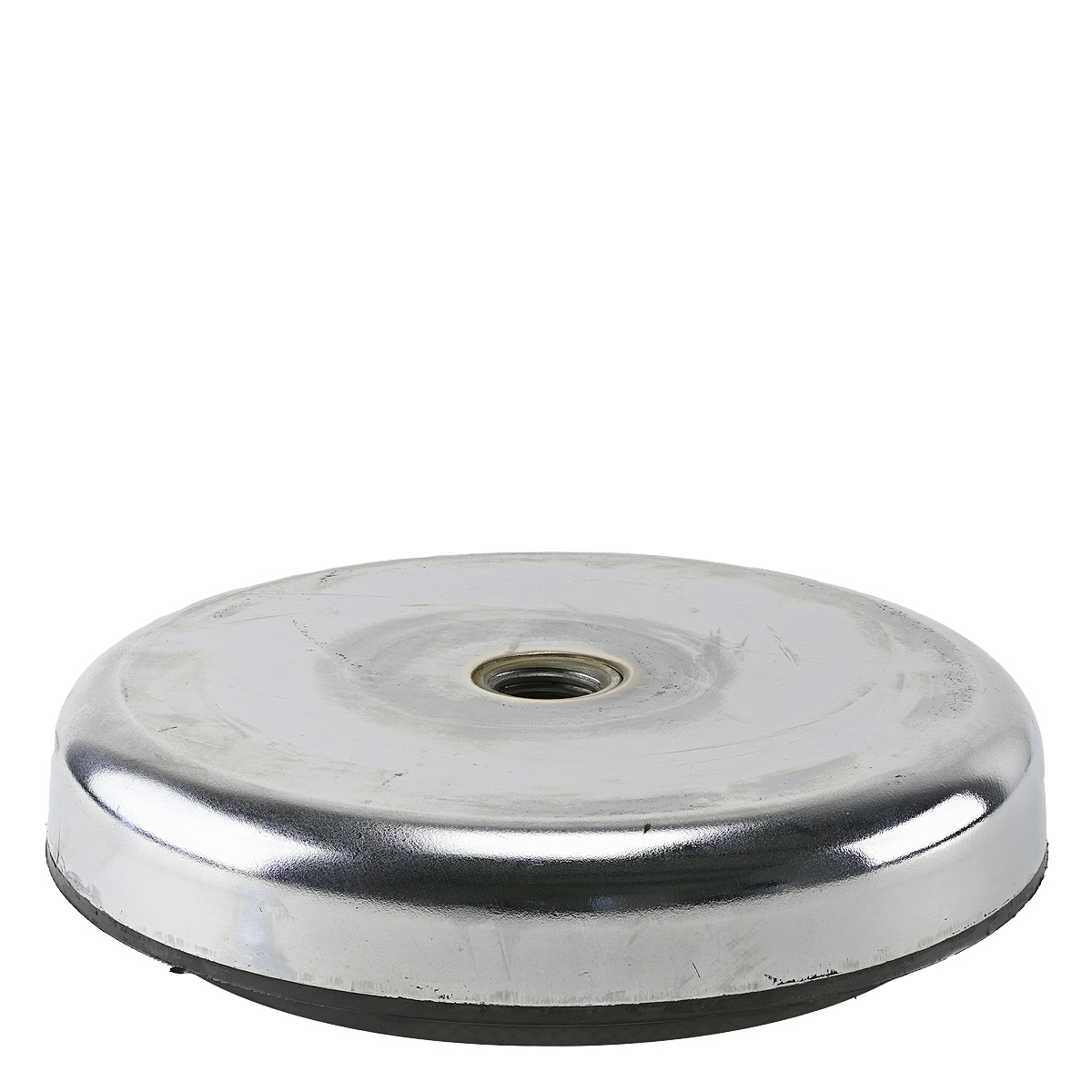

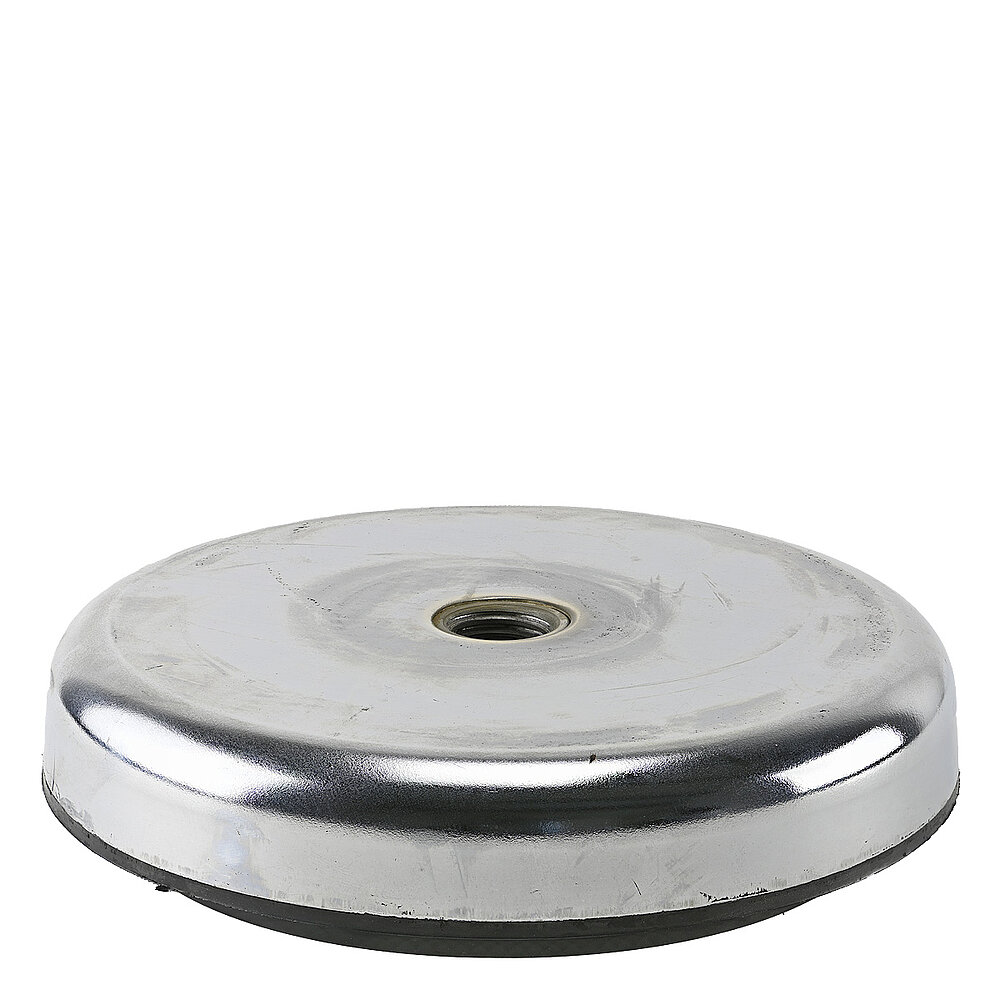

  • a round vibration damper with 200 mm diameter, matte-shiny zinc-galvanized metal surface, black vulcanized elastomer at the bottom and central inner thread for levelling screw M20, isolated on white background
  • NOTE: second-grade products
    optical imperfections
    on the zinc-galvanized surface
    technically-functionally in proper condition
  • remainder items
    sale while supplies last
  • sturdy design
    for exact levelling
  • anchor-free installation
    for presses, punches and similar machines
  • vulcanized elastomer
    70 Shore A°
  • non-slip tread
    reduces moving tendencies

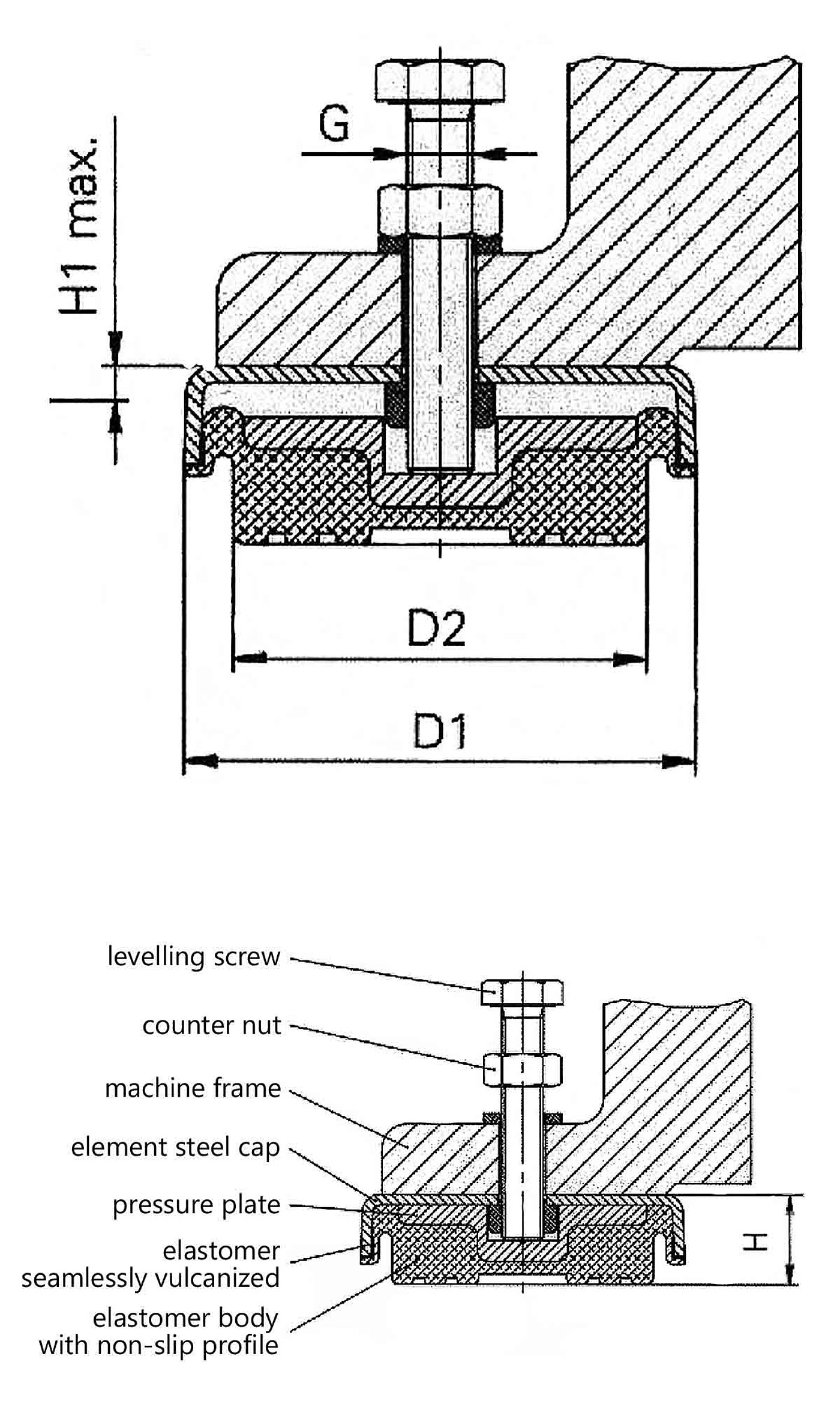

descriptionD1(mm)D2(mm)H(mm)H1 max(Ni/mm)bolt-in threadsurfaceshorehardness A(+/- 5)load max.(daN)special price*

NMS - 50

4532226

M10

zinc-coated

70150EUR 5.-
NMS - 100100773610

M12

zinc-coated70600EUR 10.-
NMS - 1601601304013

M16

zinc-coated701800EUR 15.-
NMS - 2002001674515

M24

zinc-coated703500EUR 25.-

* bargain price per unit, supply without screw DIN 933/ISO 4017, while supplies last, prices quoted are net, EXW, subject to prior sale

the vulcanised black-coloured rubber damper is made of nitrile butadiene (NBR), persistant towards mineral- and hydraulic oils, temperature-storing oils, pneumatic-, gear- and motor oils, lubricants, corrosion protection, lubricant- and filter oils, oil-water emulsions and flammable liquids ( petrols, benzine and kerosine, heating oil, special petrols and petroleum )

temperature-stable up to 80°C
