precision wedge mounts bolt-on (BO) - with calotte

version

bottom NBR9002
plain
only non-slip protection
top milled flat, lacquered
with zinc-galvanized spherical calotte

on request with screw, nuts and washers

suitable for:

angle compensation
machining centres
transfer lines
cnc-machine tools
round- and flat grinding machines
long-bedded machines with low intrinsic rigidity
drilling & milling gear

calotte dimensions:

Ø - 110 / 80 ( outer / inner ) height 13 mm mass 0,46 kg
Ø - 160 / 120 ( outer / inner ) height 13 mm mass 0,84 kg
angle compensation ± 3°

type	article number	load (daN)	L (mm)	B (mm)	H (mm)	Ni (mm)	SW (a/i)	c (mm)	d (mm)	thread (bolt-on bottom)	calotte (Ø mm)	mass (kg)
FK 04/BO/K/NBR9002	8039 0005	2600	115	115	56	9	19/10	50	24	M16	110	3,30
FK 05/BO/K/NBR9002	8040 0005	3100	125	125	53	9	19/10	50	20	M16	110	3,85
FK 07/BO/K/NBR9002	8041 0005	4500	150	150	62	12	22/12	60	23	M16	110	6,06
FK 07/H/BO/K/NBR9002	8042 0005	4500	150	150	72	12	22/12	60	23	M16	110	7,45
FK 08/BO/K/NBR9002	8043 0005	5100	160	160	64	10	24/14	75	25	M16	110	7,42
FK 10/BO/K/NBR9002	8044 0005	8000	200	200	61	10	24/14	75	27,5	M20	160	11,25
FK 10/H/BO/K/NBR9002	8045 0005	8000	200	200	89	20	27/14	75	27,5	M20	160	16,44

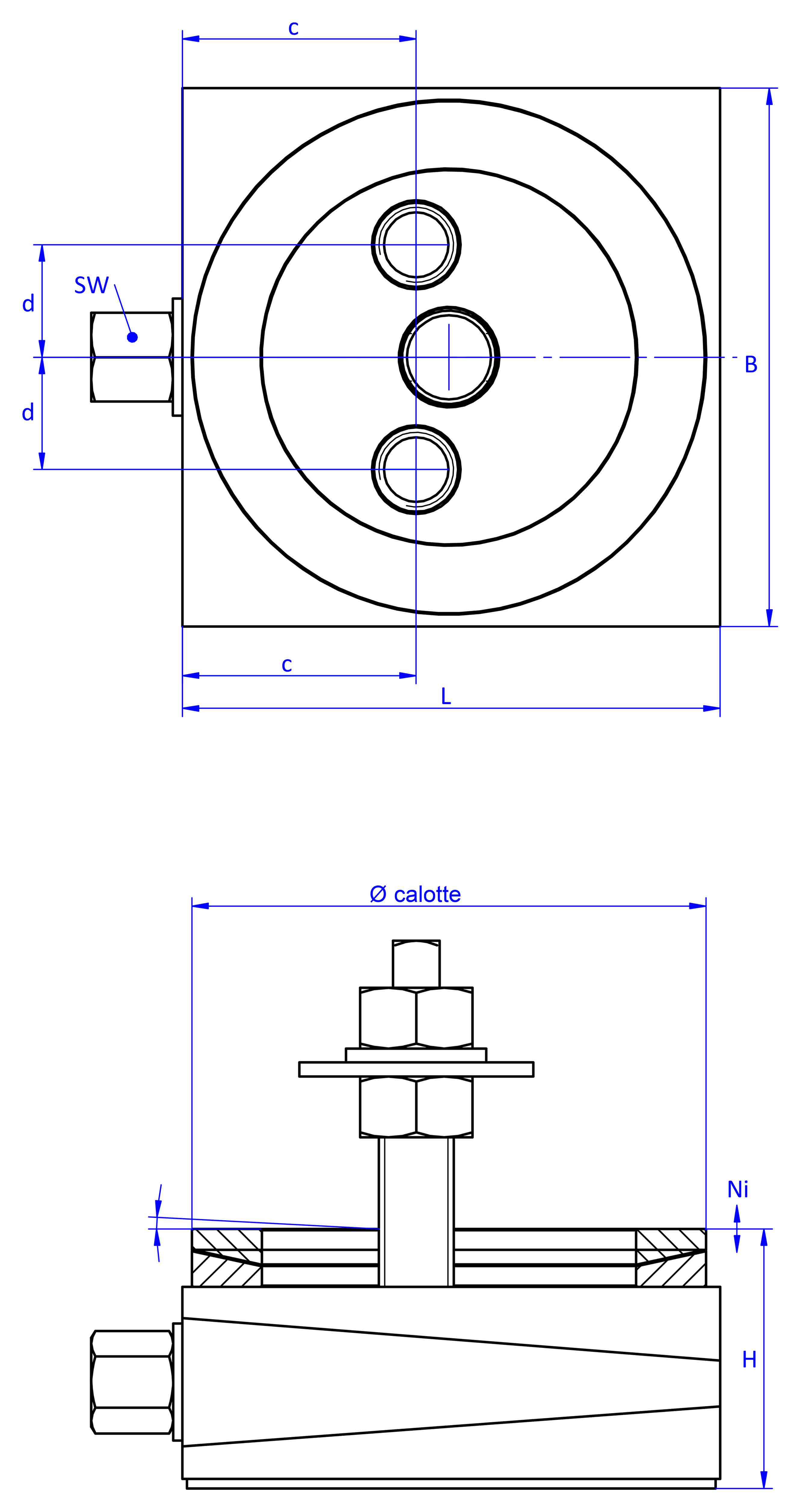

schematic drawing of a bolt-on action machine mount, in the view from the top with two holes in the top part and two threads in the bottom part, an angular compensation calotte consisting of two convex / concave metal rings on the top part and in the side view with a thin elastomer with smooth surface for non-slip protection at the bottom and a fastening screw fastened in the bottom part

precision wedge mounts bolt-on (BO) with calotte - assembly instruction

We kindly ask to read the below carefully prior to assembly / installation of the precision wedge mounts.

The load data given in the precision wedge mount catalogue are valid for static load.

Height adjustment under load can be facilitated with highly reduced torque by adjusting from the top-most levelling height of the wedge mount downwards and thus making use of gravity. Prior to assembly / installation, we recommend to adjust the wedge mount to the top-most levelling height. In operation, the ideal levelling height to be achieved is the middle levelling height.

All parts have to be aligned interlockingly with their respective guide keys and grooved keyways.

The precision wedge mounts bolt-on (BO) with calotte are designed for fastening with the machine frame and angle compensation. During transport, the wedge mounts are carried along, fixed underneath. Depending on the application, the bottom is equipped with a dampening or non-slip protection board of various shorehardness and optional surface structure.

In operation, the wedge segment with the dampening or non-slip protection board and the inner threads faces downwards, the wedge segment with the two-piece calotte faces upwards. The bolt-on screw is to be inserted no further / deeper than the adhesive-stuck elastomer board allows for.

The bolt-on screw must be fastened to the machine frame only after completion of the levelling process. Non-adherance to the above will result in the destruction of the middle wedge.

As described above, height adjustment is facilitated starting from the top-most levelling height, proceeding downwards.
