threaded tube inserts for round tubes

Round threaded tube end inserts allow for fixing e.g. our hinged element feet, vibration dampers, levelling elements and levelling screws to the open end of round tubes.

The inserted thread is made of nickle-coated brass, encapsuled by fiberglass-reinforced polyamide.

A tried and tested solution with all kinds of steel frames and other welding constructions. For tube sizes from 30 mm diameter and tubular wall thickness from 1,5 mm onwards.

Packaging unit of 10 pieces each.

threaded tube inserts
(364 KB, pdf)

round threaded tube inserts
for press-fitting into round tube ends
sturdy insert-thread
made of nickel-coated brass
polyamide corpus
fiberglas-reinforced
diameter
from 30 mm onwards
tubular wall thickness
from 1,5 mm onwards
packaging unit
10 pieces each

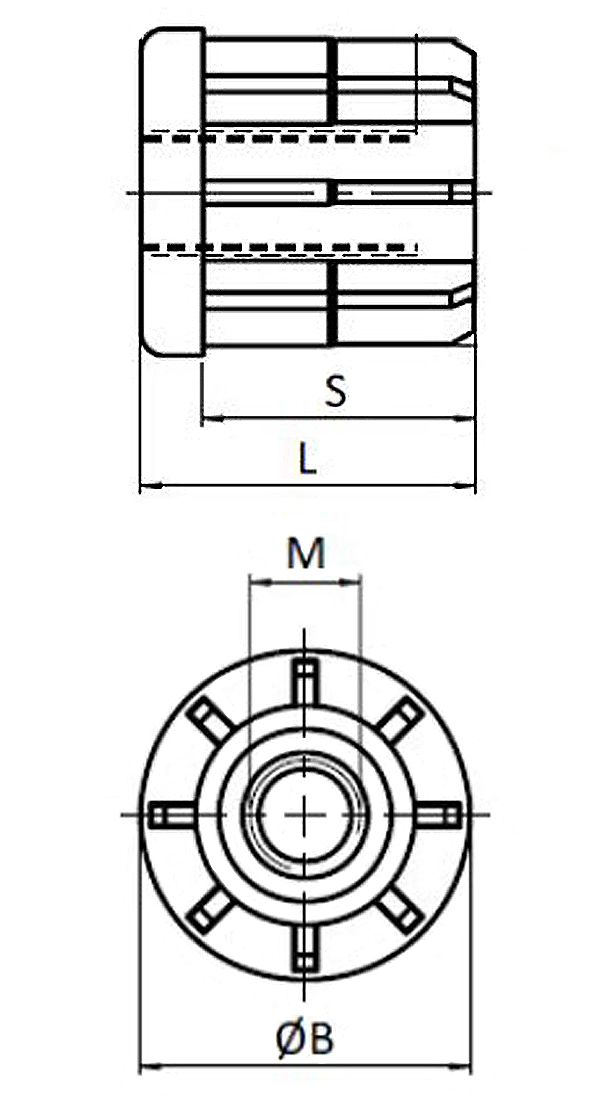

description	article number	Ø(mm)	L(mm)	S(mm)	wall thickness(mm)	threadM	load(kg)
GER30/1,5/M10	1035 0001	30	33	27	1,5	M10	500
GER30/1,5/M12	1035 0002	30	33	27	1,5	M12	50
GER30/1,5/M14	1035 0003	30	33	27	1,5	M14	500
GER30/1,5/M16	1035 0004	30	33	27	1,5	M16	500
GER38/1,5/M10	1035 0005	38	43	35	1,5	M10	600
GER38/1,5/M12	1035 0006	38	43	35	1,5	M12	600
GER38/1,5/M14	1035 0007	38	43	35	1,5	M14	600
GER38/1,5/M16	1035 0008	38	43	35	1,5	M16	600
GER42,4/1,5/M10	1035 0009	42,4	43	35	1,5	M10	600
GER42,4/1,5/M12	1035 0010	42,4	43	35	1,5	M12	600
GER42,4/1,5/M14	1035 0011	42,4	43	35	1,5	M14	600
GER42,4/1,5/M16	1035 0012	42,4	43	35	1,5	M16	600
GER42,4/1,5/M20	1035 0013	42,4	43	35	1,5	M20	600
GER48,3/1,5/M12	1035 0014	48,3	55	44	1,5	M12	600
GER48,3/1,5/M14	1035 0015	48,3	55	44	1,5	M14	600
GER48,3/1,5/M16	1035 0016	48,3	55	44	1,5	M16	600
GER48,3/1,5/M20	1035 0017	48,3	55	44	1,5	M20	600
GER50,9/1,5/M12	1035 0018	50,9	55	44	1,5	M12	600
GER50,9/1,5/M14	1035 0019	50,9	55	44	1,5	M14	600
GER50,9/1,5/M16	1035 0020	50,9	55	44	1,5	M16	600
GER50,9/1,5/M20	1035 0021	50,9	55	44	1,5	M20	600
