precision wedge mounts free-standing (FS)

version

bottom NBR5514 - top NBR9005
plain

suitable for:

  • passive isolation e.g. with
    - metrology gear
    - scales
    - dosage units
    - optical devices et.c.
  • critical storey installations
  • a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with smooth surface for passive vibration isolation at the bottom and a thinner black elastomer with smooth surface at the top for non-slip protection, isolated on white background

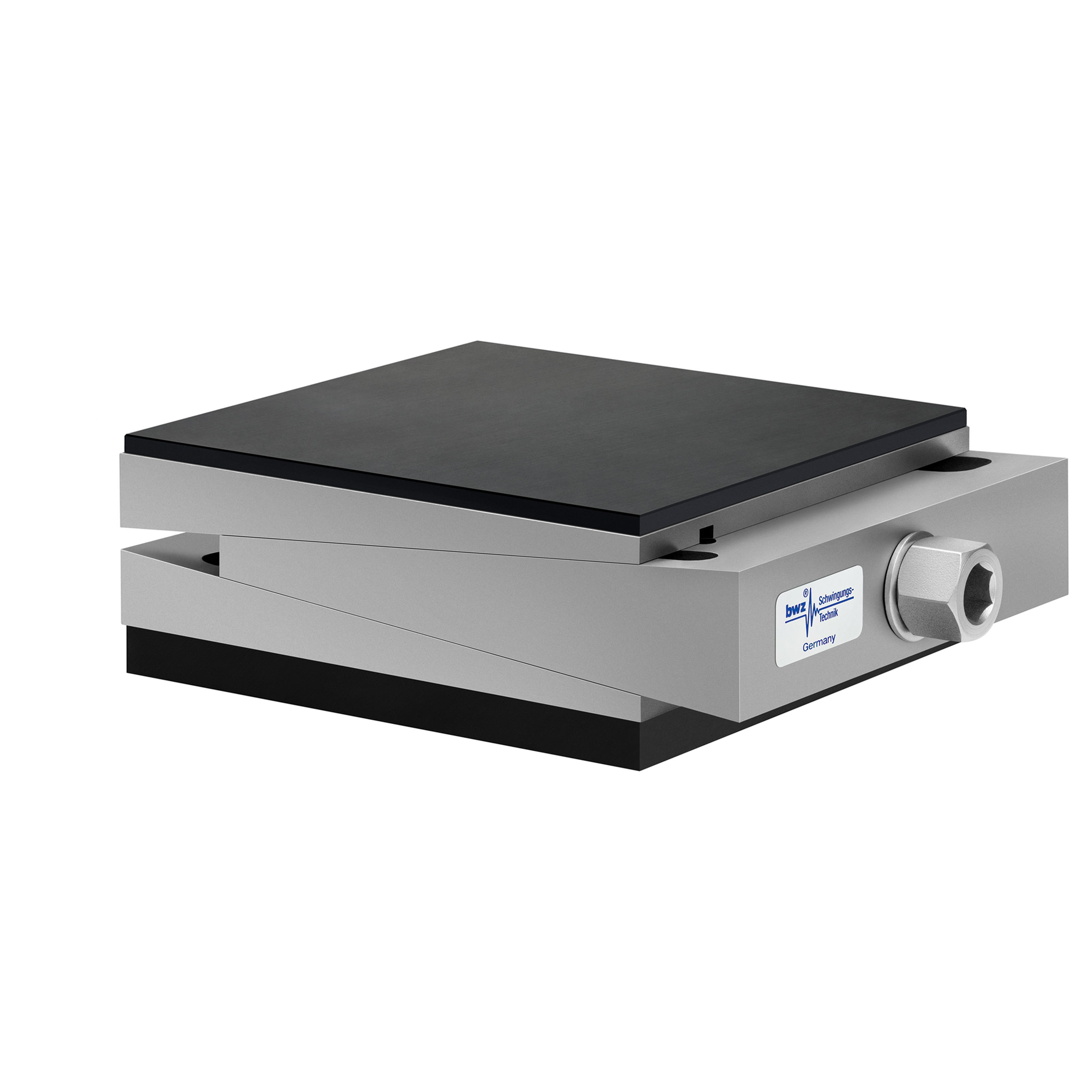

  • a square, height-adjustable machine mount made of precision-milled metal, adjusted in minimum height position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with smooth surface for passive vibration isolation at the bottom and a thinner black elastomer with smooth surface at the top for non-slip protection, isolated on white background
  • a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with smooth surface for passive vibration isolation at the bottom and a thinner black elastomer with smooth surface at the top for non-slip protection, isolated on white background

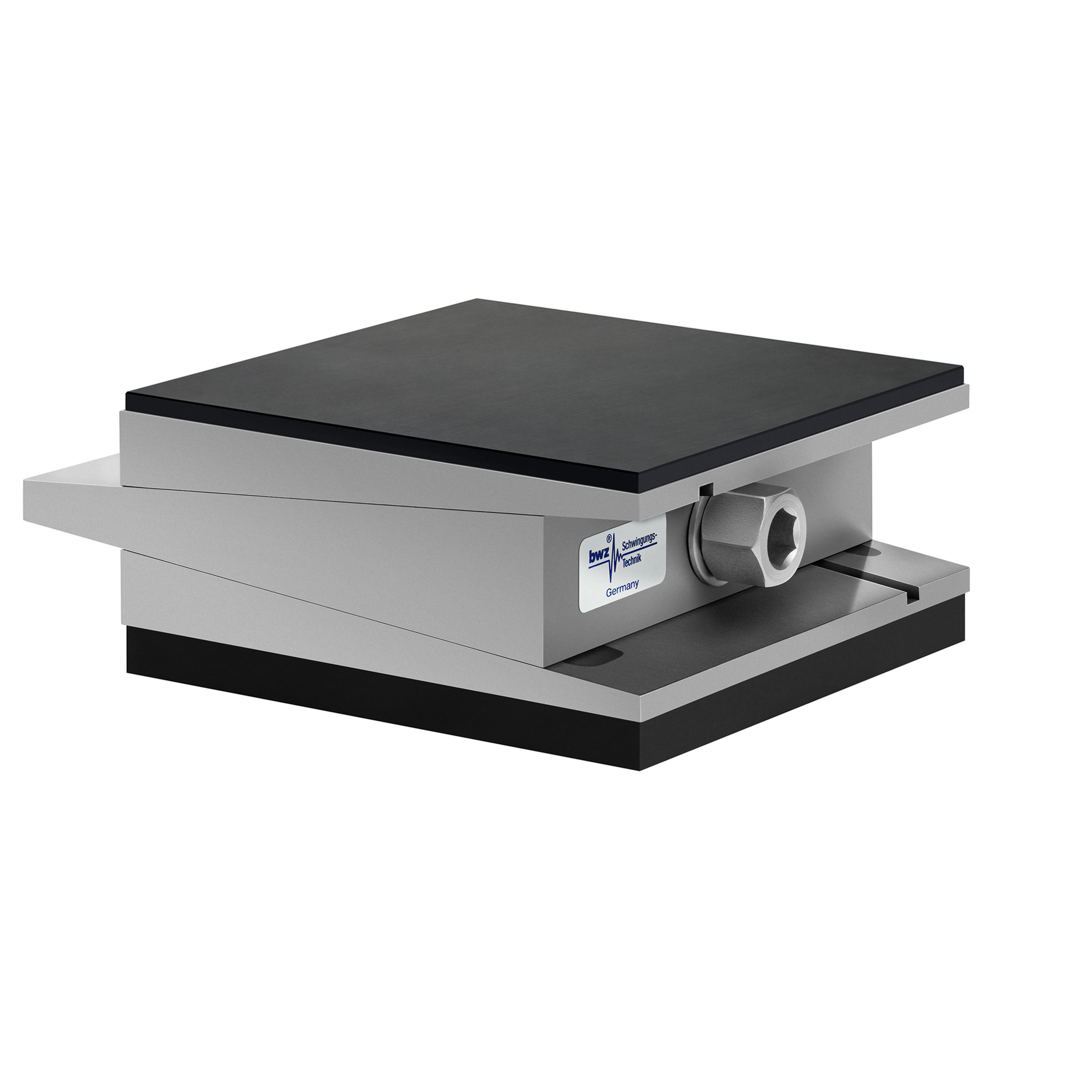

  • a square, height-adjustable machine mount made of precision-milled metal, adjusted in maximum height position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with smooth surface for passive vibration isolation at the bottom and a thinner black elastomer with smooth surface at the top for non-slip protection, isolated on white background

typearticle numberload (daN)L (mm)B (mm)H (mm)Ni (mm)SW (a/i)mass (kg)

FK 01/FS/NBR5514/NBR9005

8002 0003

290

105

55

55

8

17/8

1,26

FK 02/FS/NBR5514/NBR9005

8003 0003

460

115

80

56

8

17/8

1,97

FK 03/FS/NBR5514/NBR9005

8006 0003

560

150

75

56

9

19/10

2,69

FK 04/FS/NBR5514/NBR9005

8007 0003

660

115

115

61

9

19/10

3,10

FK 05/FS/NBR5514/NBR9005

8010 0003

780

125

125

59

9

19/10

3,74

FK 06/FS/NBR5514/NBR9005

8013 0003

950

200

95

67

10

24/14

5,61

FK 07/FS/NBR5514/NBR9005

8014 0003

1120

150

150

68

12

22/12

6,08

FK 07/H/FS/NBR5514/NBR9005

8017 0003

1120

150

150

78

12

22/12

7,47

FK 08/FS/NBR5514/NBR9005

8020 0003

1250

160

160

68

10

24/14

7,47

FK 10/FS/NBR5514/NBR9005

8023 0003

2000

200

200

66

10

24/14

11,27

FK 10/H/FS/NBR5514/NBR9005

8026 0003

2000

200

200

94

20

27/14

16,46

FK 11/FS/NBR5514/NBR9005

8029 0003

2750

220

250

93

20

27/14

22,70

FK 12/FS/NBR5514/NBR9005

8032 0003

4120

250

330

93

16

27/14

34,26

FK 13/FS/NBR5514/NBR9005

8035 0003

6000

300

400

93

20

27/14

43,85

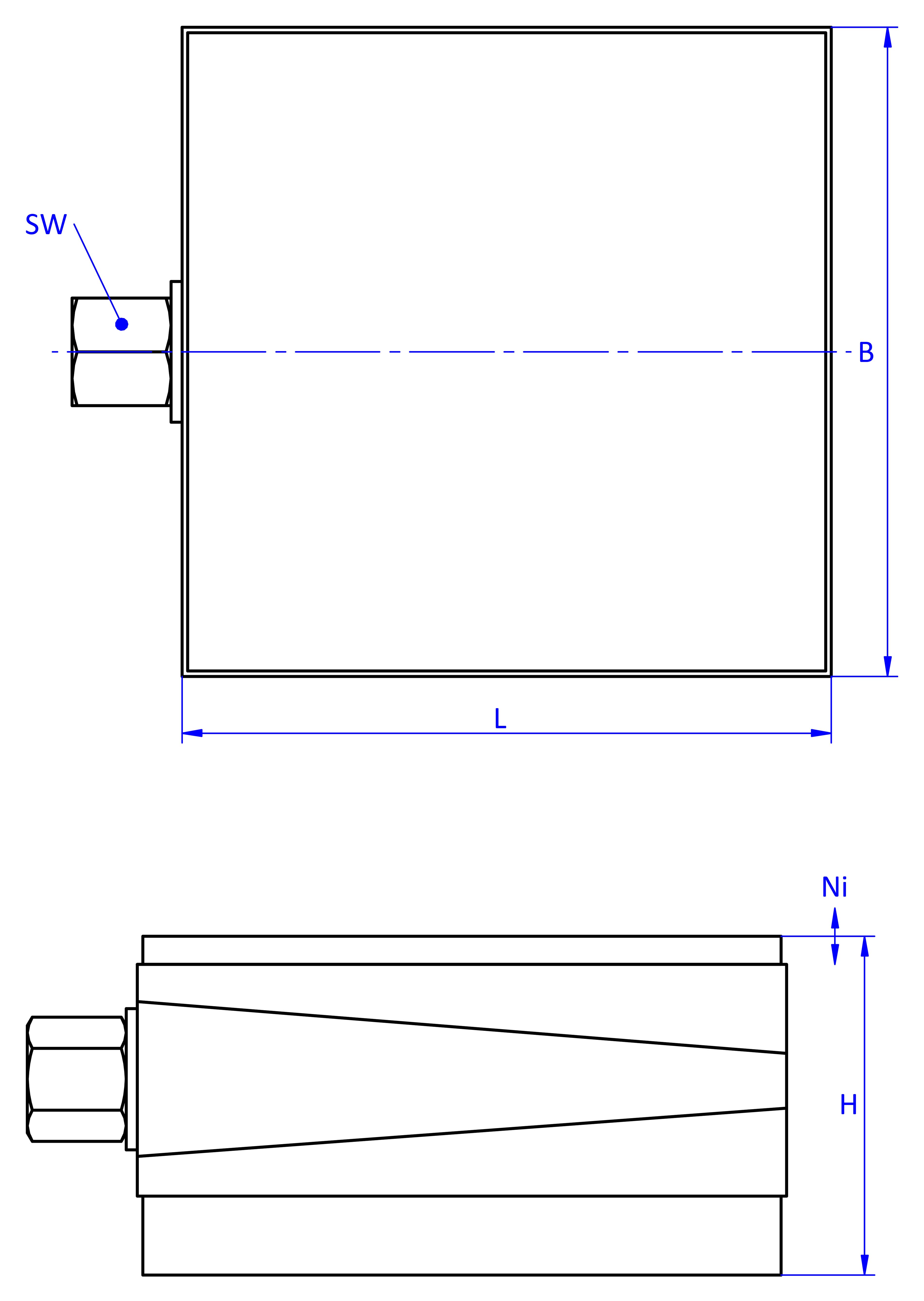

schematic drawing of a free-standing machine mount, in the view from the top with a thinner elastomer with smooth surface at the top for non-slip protection and in the side view also showing a medium-thick elastomer with smooth surface for passive vibration isolation at the bottom

precision wedge mounts free-standing (FS) - assembly instruction

We kindly ask to read the below carefully prior to assembly / installation of the precision wedge mounts.

The load data given in the precision wedge mount catalogue are valid for static load.

Height adjustment under load can be facilitated with highly reduced torque by adjusting from the top-most levelling height of the wedge mount downwards and thus making use of gravity.

Prior to assembly / installation, we recommend to adjust the wedge mount to the top-most levelling height. In operation, the ideal levelling height to be achieved is the middle levelling height.

All parts have to be aligned interlockingly with their respective guide keys and grooved keyways.

The precision wedge mounts free-standing (FS) are designed for simple slide-underneath installation, consisting of 3 losely stacked wedge parts. Depending on the application, top and bottom are equipped with dampening and non-slip protection boards of various shorehardnesses and optional surface structure. In operation, the thinner elastomer board faces up towards the machine frame.

As described above, height adjustment is facilitated starting from the top-most levelling height, proceeding downwards.

an illustration depicting the cross-section of a machine frame and a height-adjustable machine mount placed underneath featuring vibration-isolating elastomer at its top and bottom, and the foundation at the very bottom

further versions

a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment and two holes for fastening screws in the top part, isolated on white background

without elastomer boards

  • machines with long beds
  • measuring plates
  • devices with low intrinsic rigidity
  • as assembly aide
Mehr
a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with structured surface for vibration damping at the bottom and a thinner black elastomer with structured surface at the top for non-slip protection, isolated on white background

NBR8516/NBR9007

  • generic machine tools
  • textile machines
  • graphics machines
  • machines with horizontal thrust
Mehr
a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with smooth surface for vibration damping at the bottom and a thinner black elastomer with smooth surface at the top for non-slip protection, isolated on white background

NBR9014/NBR9005

  • machining centres
  • transfer lines
  • cnc-machine tools
  • round- and flat grinding machines
  • long-bedded machines with low intrinsic rigidity
  • drilling & milling gear
Mehr
a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a medium-thick black elastomer with structured surface for vibration isolation at the bottom and a thinner black elastomer with structured surface at the top for non-slip protection, isolated on white background

NBR7516/NBR9007

  • highly dynamic machines
  • presses
  • shears
  • punches
  • plastic-injection molding machines
  • compressors
  • pumps
Mehr
a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment, a thick black elastomer with structured surface for vibration isolation at the bottom and a thinner black elastomer with structured surface at the top for non-slip protection, isolated on white background

NBR7525/NBR9007

  • highly dynamic machines
  • presses
  • shears
  • punches
  • plastic-injection molding machines
  • compressors
  • pumps

higher isolation grade as compared to version with NBR7516 at bottom

Mehr
a square, height-adjustable machine mount made of precision-milled metal, adjusted in middle position, consisting of top, middle and bottom part lacquered in silver colour, with the wedge-shaped middle part featuring a protruding centered hexagonal screw for height adjustment and a thin black elastomer with smooth surface for non-slip protection at the bottom and at the top, isolated on white background

NBR9002/NBR9002

  • machining centres
  • transfer lines
  • cnc-machine tools
  • round- and flat grinding machines
  • long-bedded machines with low intrinsic rigidity
  • drilling & milling gear

only non-slip protection

Mehr
