precision wedge mounts bolt-through (BT) - without elastomer board

version

bottom milled flat
top milled flat, lacquered

on request with screw, nut, washer, screwhead isolation disc (WA) and dowel

suitable for:

machines with high gravity centre, strong tipping momentum and horizontal thrust
machines with long beds
measuring plates
devices with low intrinsic rigidity
as assembly aide

type without elastomer board	article number	load (daN)	L (mm)	B (mm)	H (mm)	Ni (mm)	SW (a/i)	c (mm)	d (mm)	drill hole (Ø mm)	mass (kg)
FK 02/BT	8005 0000	3200	115	80	37	8	17/8	45	15	14	1,76
FK 04/BT	8009 0000	4600	115	115	41	9	19/10	50	24	18	2,80
FK 05/BT	8012 0000	5500	125	125	38	9	19/10	50	20	18	3,34
FK 07/BT	8016 0000	7800	150	150	47	12	22/12	60	23	18	5,53
FK 07/H/BT	8019 0000	7800	150	150	57	12	22/12	60	23	18	6,93
FK 08/BT	8022 0000	9000	160	160	49	10	24/14	75	25	18	6,88
FK 10/BT	8025 0000	14000	200	200	46	10	24/14	75	27,5	22	10,27
FK 10/H/BT	8028 0000	14000	200	200	74	20	27/14	75	27,5	22	15,50
FK 11/BT	8031 0000	19000	220	250	74	20	27/14	125	62	24	21,40
FK 12/BT	8034 0000	28000	250	330	74	16	27/14	135	117,5	28	32,27
FK 13/BT	8037 0000	45000	300	400	74	20	27/14	124	70/127	28	40,95

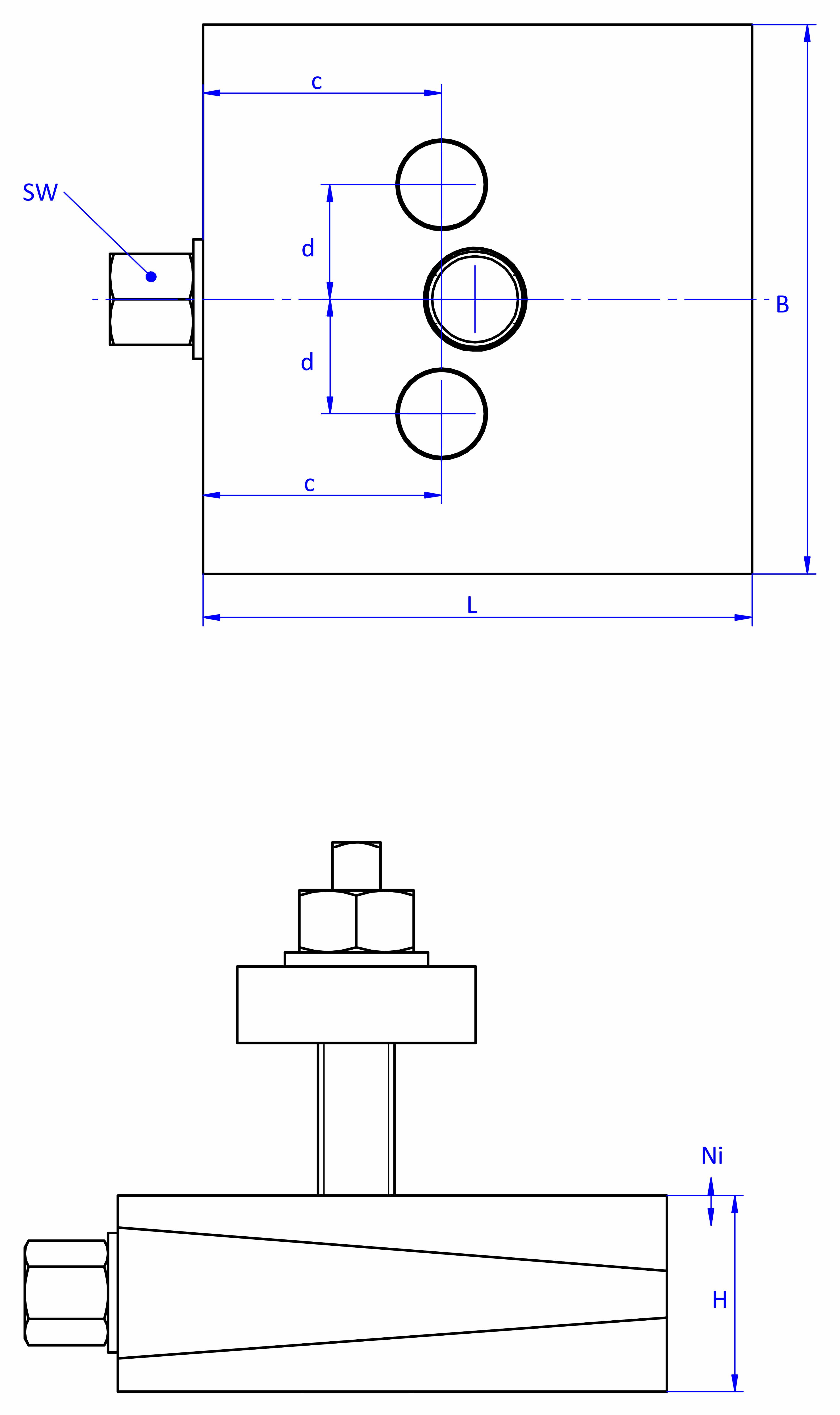

schematic drawing of a bolt-through action machine mount, in the view from the top with two holes in the top and bottom part, and in the side view with a fastening screw with a screwhead isolation disc at the top screw end, passing through the bottom part

precision wedge mounts bolt-through (BT) - assembly instruction

We kindly ask to read the below carefully prior to assembly / installation of the precision wedge mounts.

The load data given in the precision wedge mount catalogue are valid for static load.

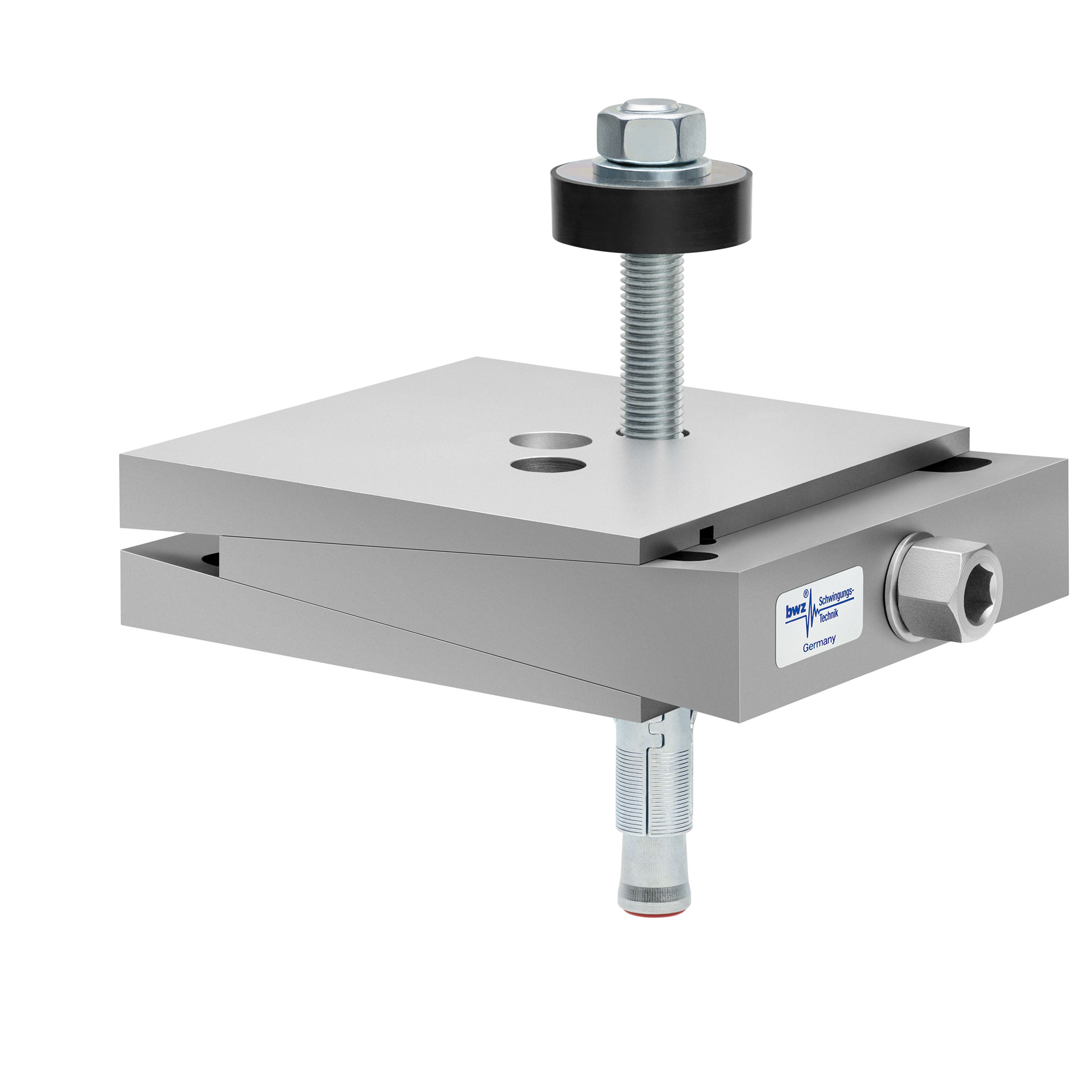

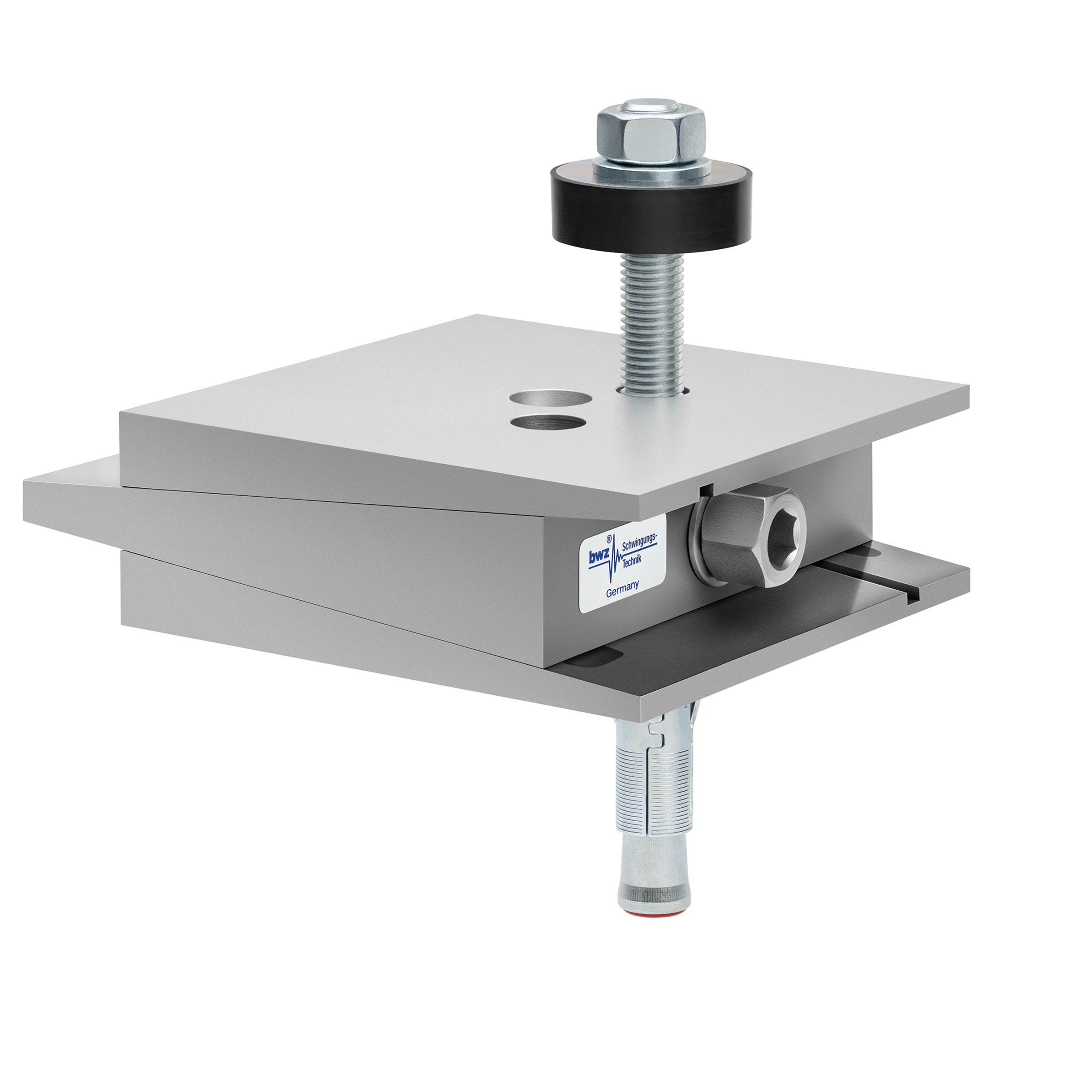

Height adjustment under load can be facilitated with highly reduced torque by adjusting from the top-most levelling height of the wedge mount downwards and thus making use of gravity. Prior to assembly / installation, we recommend to adjust the wedge mount to the top-most levelling height. In operation, the ideal levelling height to be achieved is the middle levelling height.

All parts have to be aligned interlockingly with their respective guide keys and grooved keyways.

The precision wedge mounts bolt-through (BT) are designed for anchoring of the machine in the ground. Depending on the application, the bottom is equipped with a dampening or non-slip protection board of various shorehardness and optional surface structure.

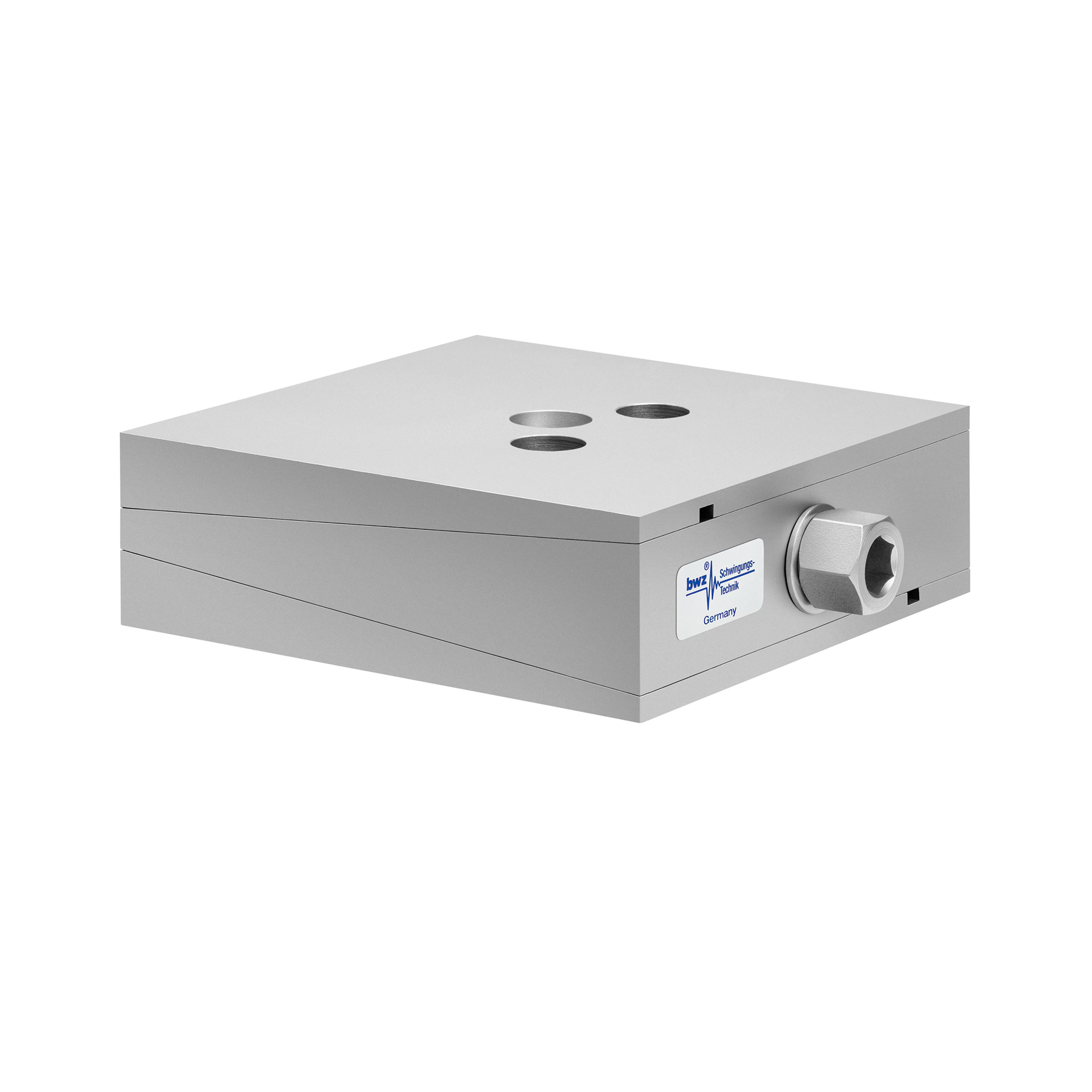

In operation, the wedge segment with the dampening or non-slip protection board faces downwards. In the bolt-through version, both threads in the bottom wedge segment are drilled out. One of the two drill holes is used for insertion of the anchoring screw.

The bolt-through screw must be fastened to the machine frame only after completion of the levelling process. Non-adherance to the above will result in the destruction of the middle wedge.

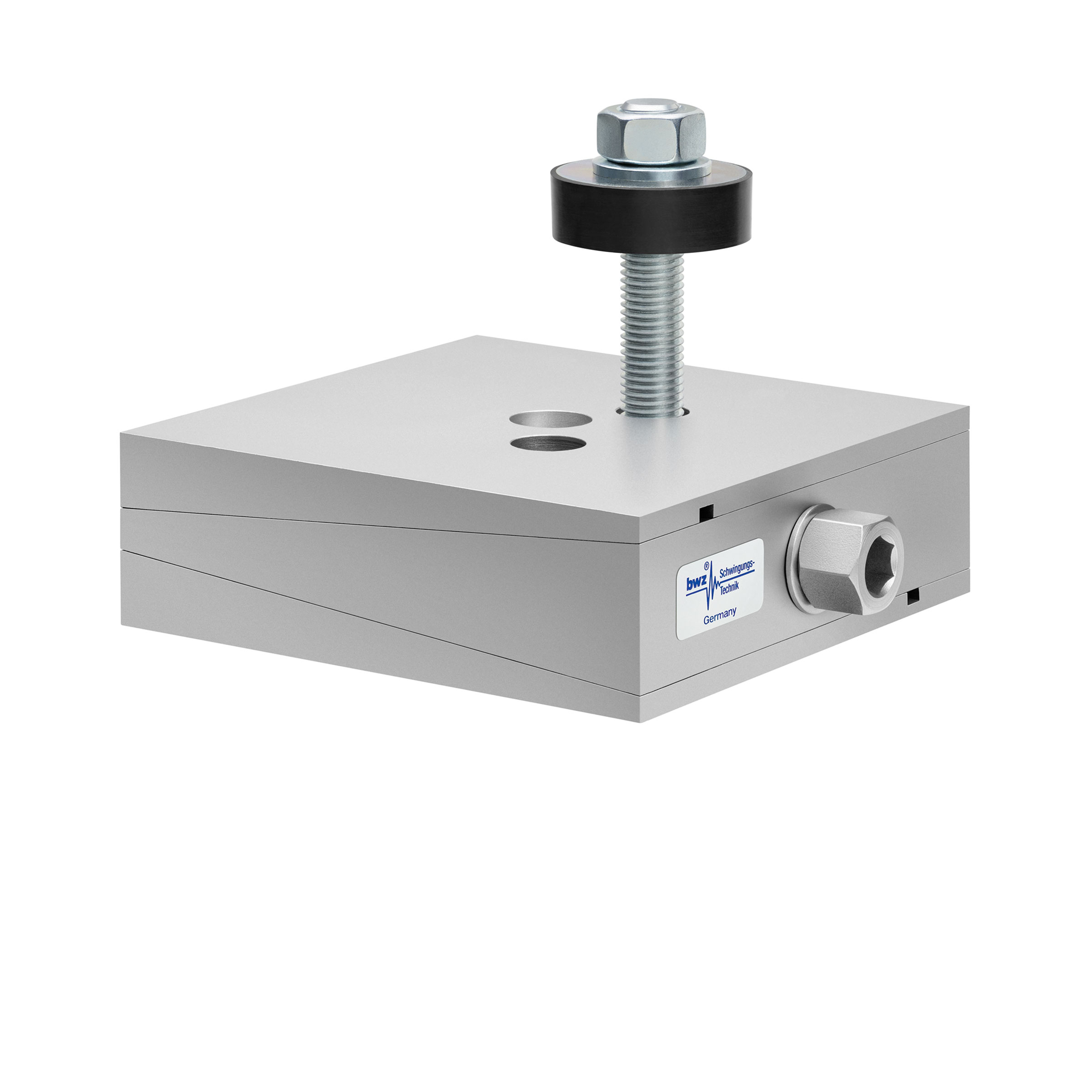

The application of an elastomer board at the bottom effects vibration isolation or vibration dampening in regard to the downward amplitude. The upward amplitude is checked with a screwhead isolation disc. For the bolt-through version, this screwhead isolation disc is an indispensable accessory, and it is mandatory to install in such a fashion, that the machine frame is bracketed between wedge mount and screwhead isolation disc, as depicted. In delicate applications, where the avoidance of bridgeing of structure-borne noise is paramount, the insertion of an isolation tube or isolation tape at the thread shaft is required.

As described above, height adjustment is facilitated starting from the top-most levelling height, proceeding downwards.
