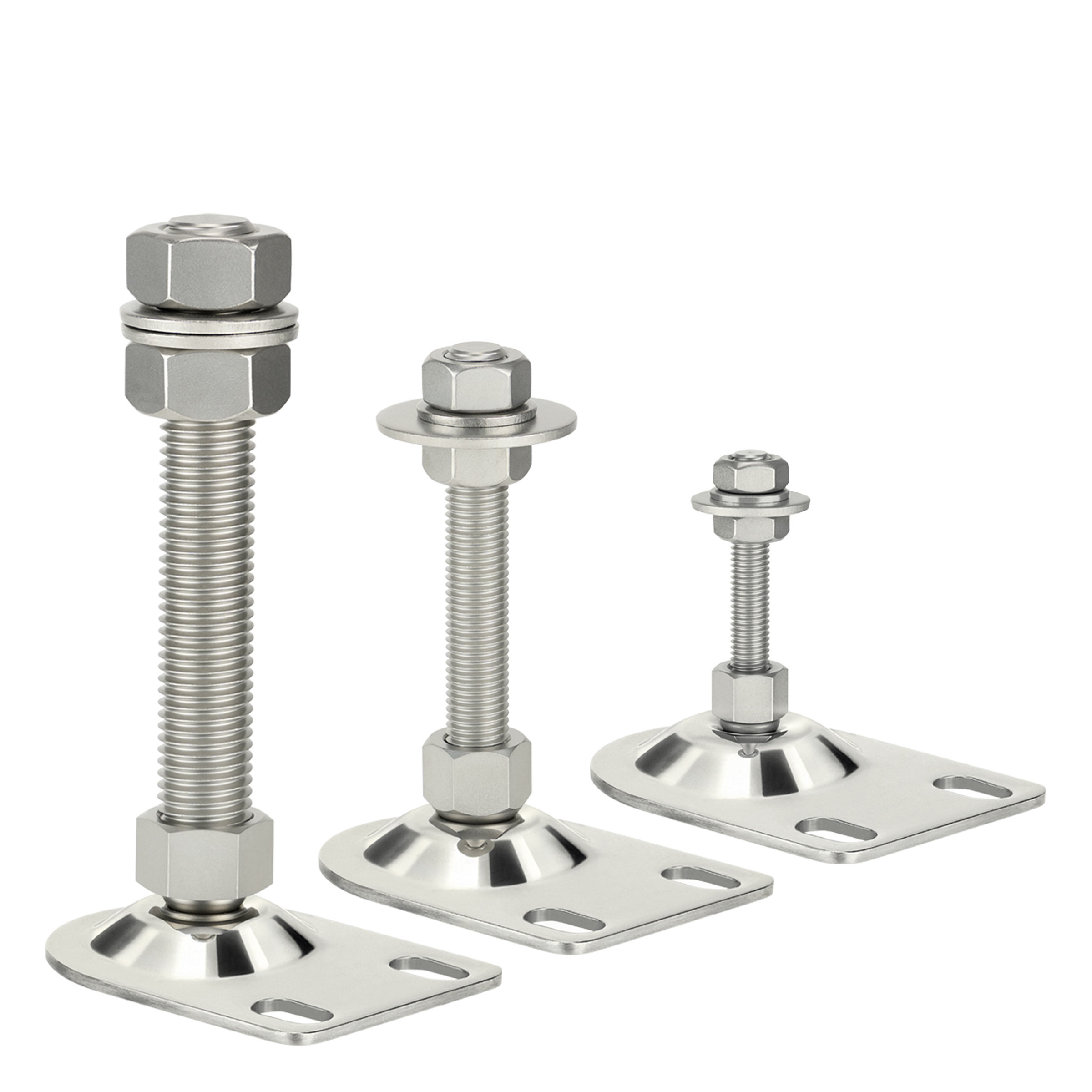

levelling elements LBE BF PH

stainless steel	article number	l x b(mm)	M	H(mm)	L(mm)	H₁(mm)	SW(mm)	load max.(daN)
LBE7/BF PH/M10x50	1999 0032	110 x 80	M 10	79	50	29	17	900

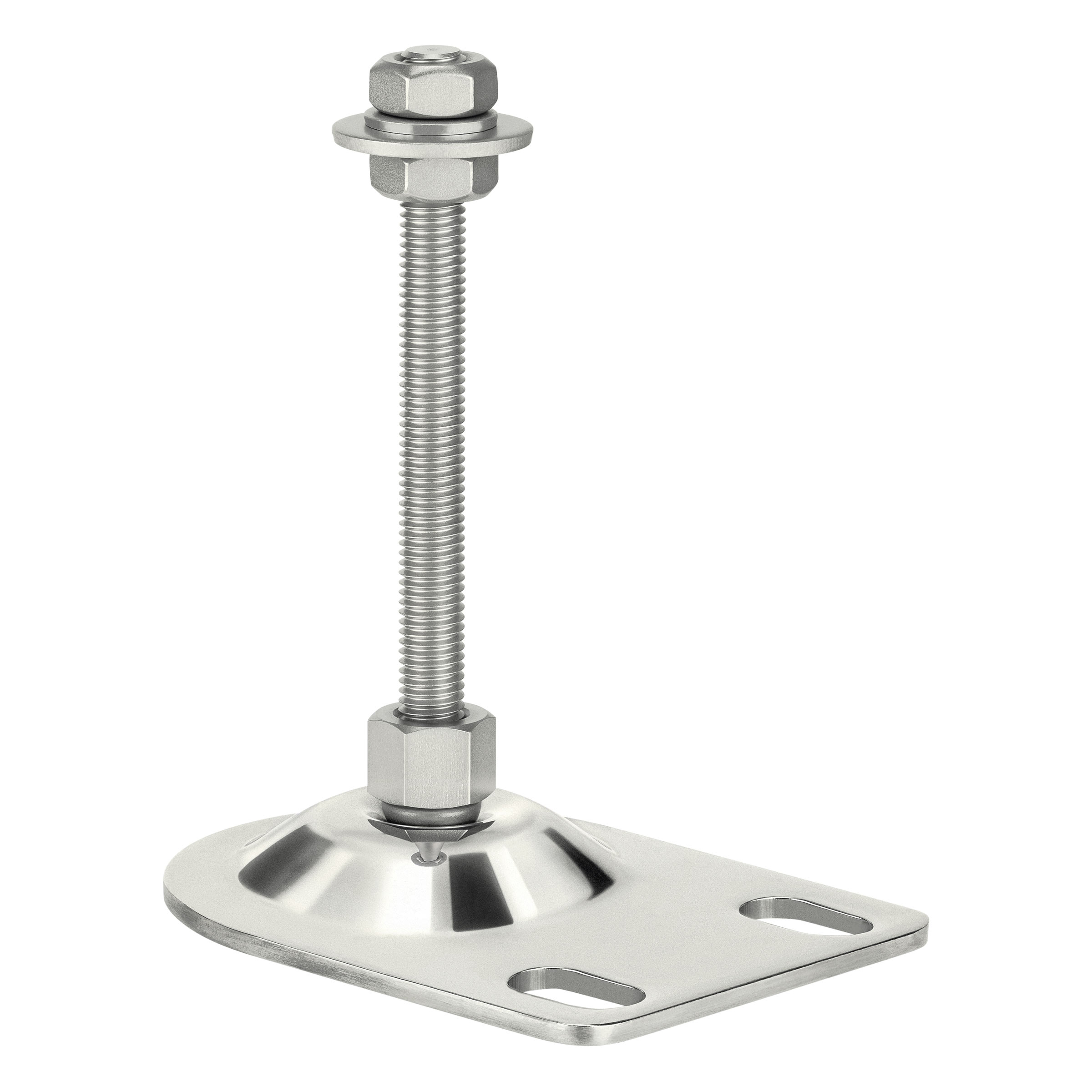

LBE7/BF PH/M10x100	1999 0000	110 x 80	M 10	129	100	29	17	900
LBE7/BF PH/M10x150	1999 0033	110 x 80	M 10	179	150	29	17	900
LBE7/BF PH/M10x200	1999 0034	110 x 80	M 10	229	200	29	17	900

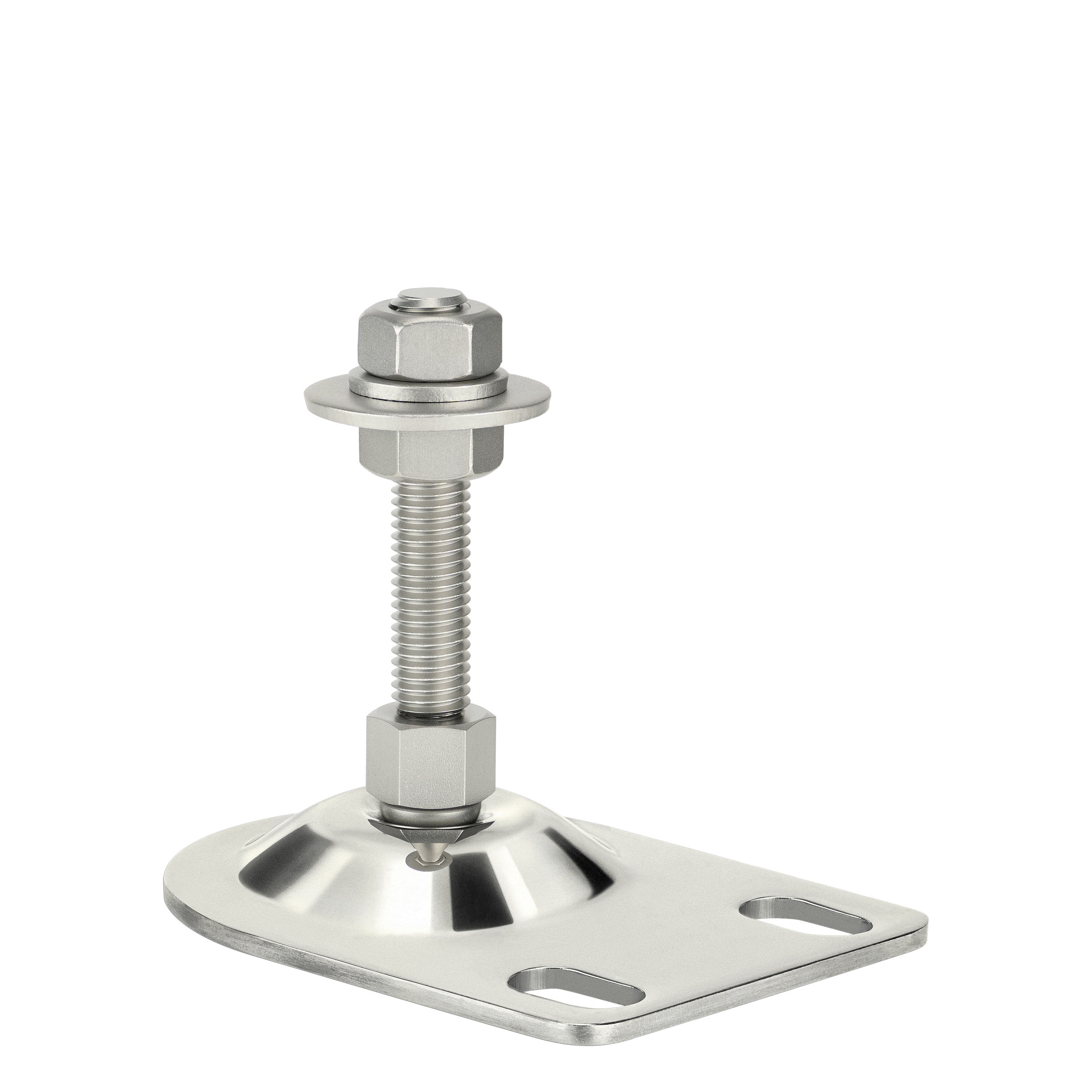

LBE7/BF PH/M12x50	1999 0035	110 x 80	M 12	82	50	32	19	1000

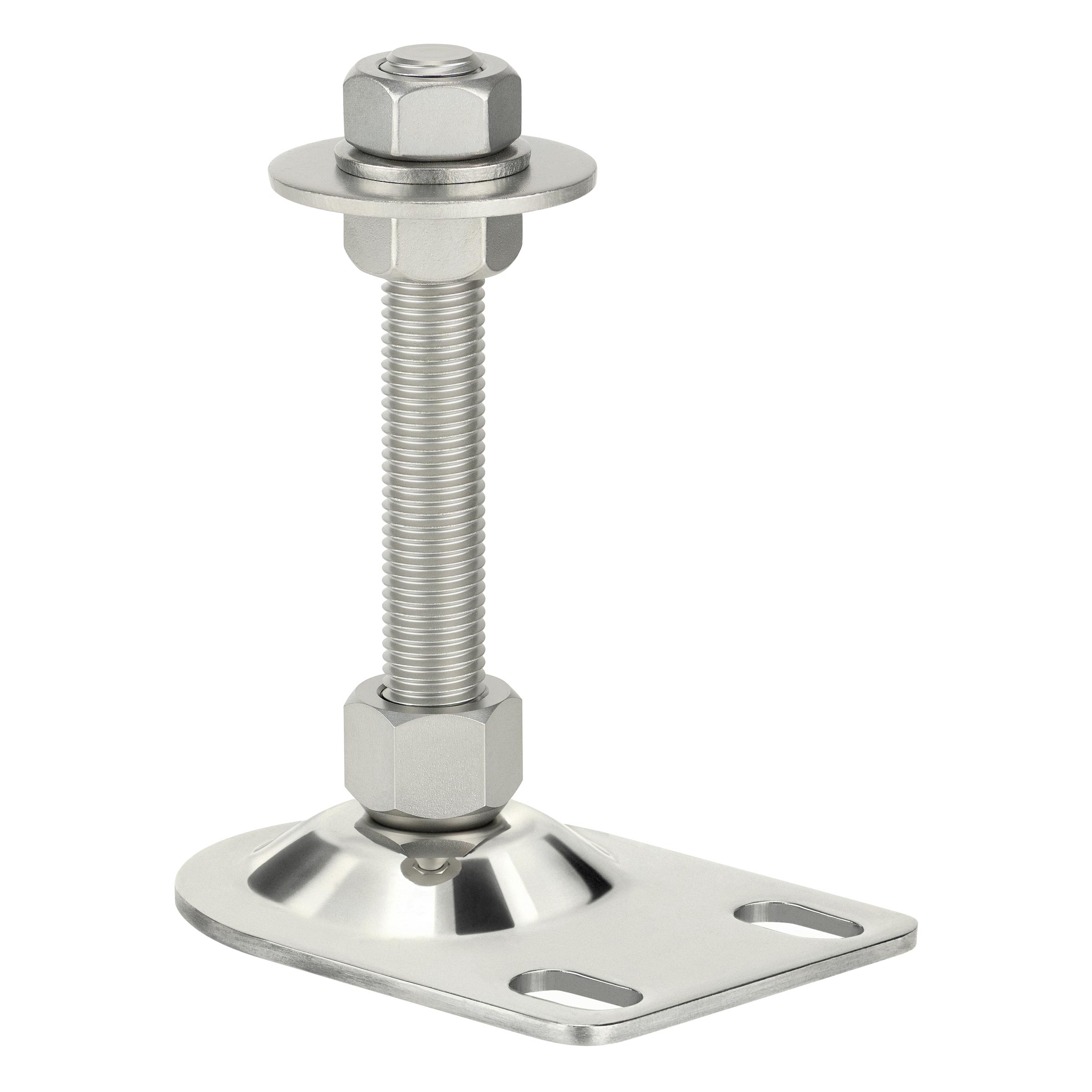

LBE7/BF PH/M12x100	1999 0001	110 x 80	M 12	132	100	32	19	1000
LBE7/BF PH/M12x150	1999 0036	110 x 80	M 12	182	150	32	19	1000
LBE7/BF PH/M12x200	1999 0037	110 x 80	M 12	232	200	32	19	1000

LBE7/BF PH/M14x50	1999 0038	110 x 80	M 14	84	50	34	24	1100
LBE7/BF PH/M14x100	1999 0039	110 x 80	M 14	134	100	34	24	1100
LBE7/BF PH/M14x150	1999 0040	110 x 80	M 14	184	150	34	24	1100
LBE7/BF PH/M14x200	1999 0041	110 x 80	M 14	234	200	34	24	1100
LBE7/BF PH/M14x250	1999 0042	110 x 80	M 14	284	250	34	24	1100

LBE7/BF PH/M16x100	1999 0002	110 x 80	M 16	134	100	34	24	1200
LBE7/BF PH/M16x150	1999 0043	110 x 80	M 16	184	150	34	24	1200
LBE7/BF PH/M16x200	1999 0044	110 x 80	M 16	234	200	34	24	1200
LBE7/BF PH/M16x250	1999 0045	110 x 80	M 16	284	250	34	24	1200

LBE7/BF PH/M18x100	1999 0046	110 x 80	M 18	134	100	34	24	1300
LBE7/BF PH/M18x150	1999 0047	110 x 80	M 18	184	150	34	24	1300
LBE7/BF PH/M18x200	1999 0048	110 x 80	M 18	234	200	34	24	1300
LBE7/BF PH/M18x250	1999 0049	110 x 80	M 18	284	250	34	24	1300

LBE7/BF PH/M20x100	1999 0003	110 x 80	M 20	137	100	37	30	1400
LBE7/BF PH/M20x150	1999 0050	110 x 80	M 20	187	150	37	30	1400
LBE7/BF PH/M20x200	1999 0051	110 x 80	M 20	237	200	37	30	1400
LBE7/BF PH/M20x250	1999 0052	110 x 80	M 20	287	250	37	30	1400
LBE7/BF PH/M20x300	1999 0053	110 x 80	M 20	337	300	37	30	1400

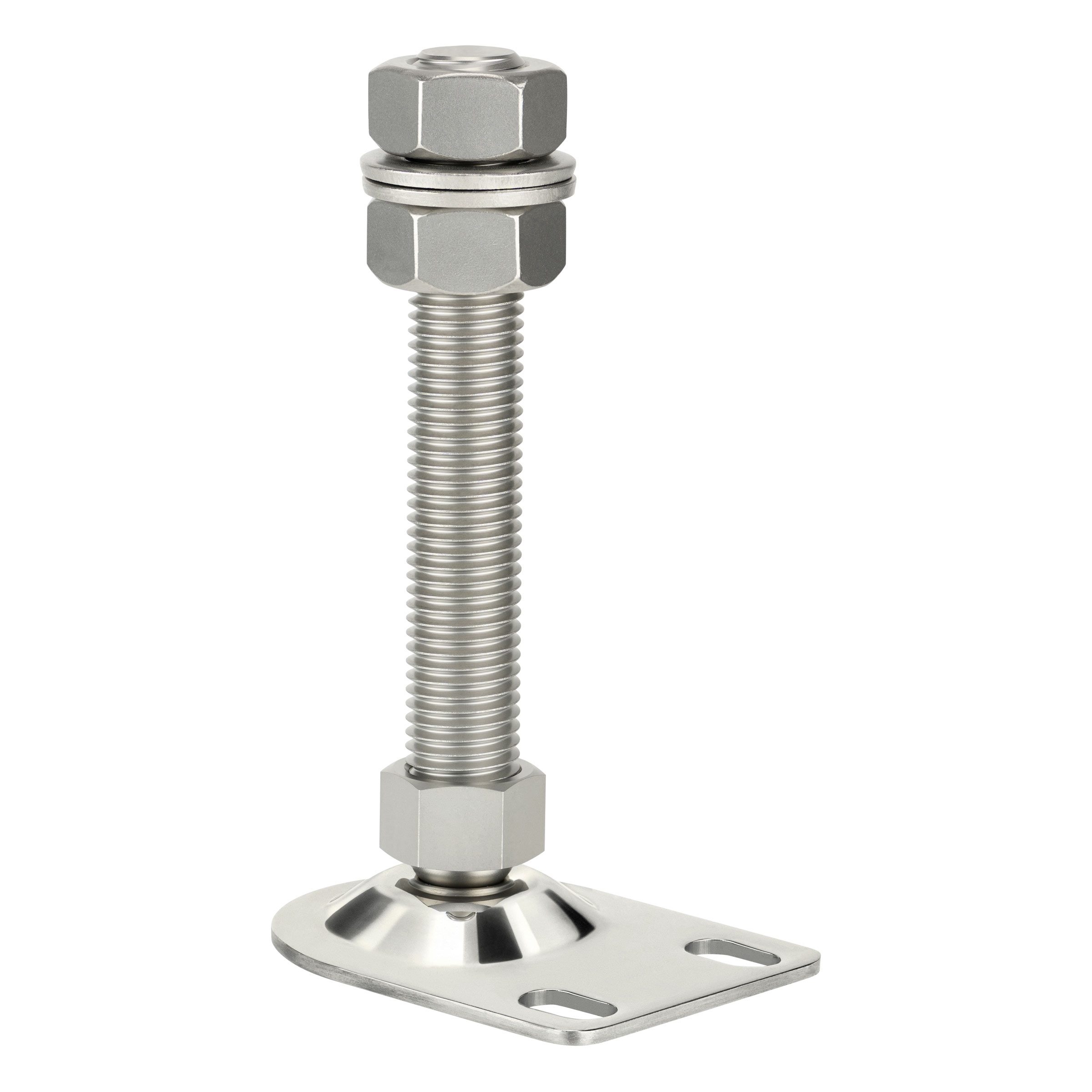

LBE7/BF PH/M24x150	1999 0004	110 x 80	M 24	187	150	37	30	1500
LBE7/BF PH/M24x200	1999 0054	110 x 80	M 24	237	200	37	30	1500
LBE7/BF PH/M24x250	1999 0055	110 x 80	M 24	287	250	37	30	1500
LBE7/BF PH/M24x300	1999 0056	110 x 80	M 24	337	300	37	30	1500

including: 2 nuts DIN 934 and 2 washers (1 x DIN 125 and 1 x DIN 9021 - from M24 onwards: 2 x DIN 125 ), not assembled

assembly of the nuts and washers and sandblasting of the base plate available at extra charge

measurement L of the levelling screw relates to the net thread length

thread	standard thread lengths L(mm)
M 8	50	100	150	200	*250	*300
M 10	50	100	150	200	*250	*300
M 12	50	100	150	200	*250	*300
M 14	50	100	150	200	250	*300
M 16	*50	100	150	200	250	*300
M 18	*50	100	150	200	250	*300
M 20	*50	100	150	200	250	300
M 24	*50	*100	150	200	250	300
M 24x1,5	*	*	*	*	*	*
M 30	*50	*100	150	200	250	300
M 30x1,5	*	*	*	*	*	*

measurement L of the levelling screw relates to the net thread length

optional: further thread sizes, special- and intermediate thread lengths as well as other metric fine pitch thread sizes

* on request

data on materials and tolerances

threads / levelling screws:
according to DIN 976 -/- manufacturing tolerance: according to ISO 2768-mk
materials: steel blank 4.8 - steel zinc-coated 4.8 - stainless steel A2

manufacturing components from hexagonal bar material:
according to EN 10277/10278 -/- manufacturing tolerance: according to ISO 2768-mk
materials: steel blank 11SMn30+C -/- stainless steel 1.4305

a schematic drawing with measurements of a levelling element with pendulum-action thread and elongated holes for floor-fastening, in the side view and in the view from the top
